Wiring Diagram - BCM -

For connector terminal arrangements, harness layouts, and alphabets in a "diamond-shaped" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

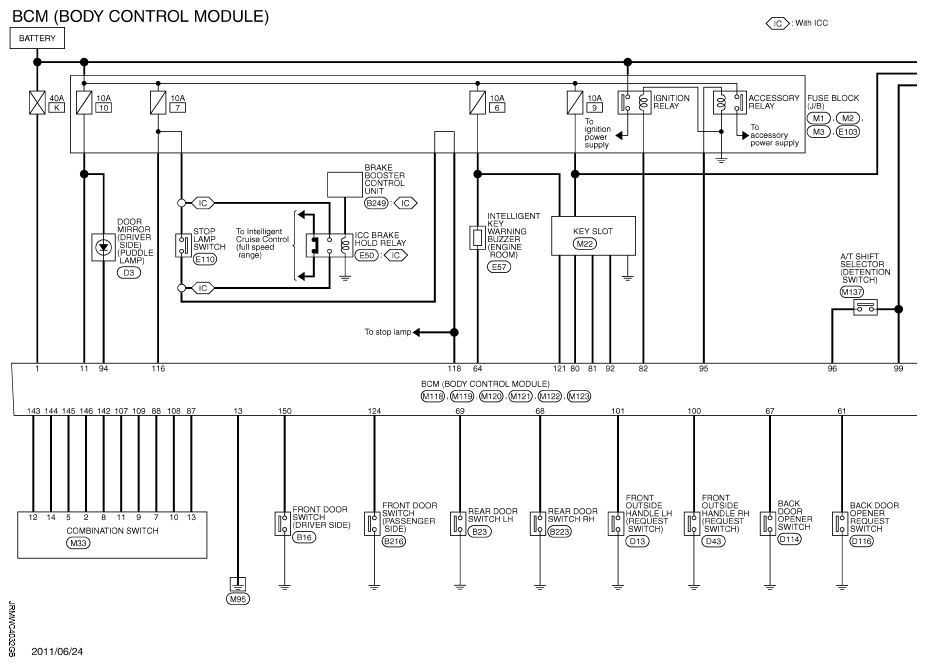

Fig 1: Body Control Module - Wiring Diagram (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

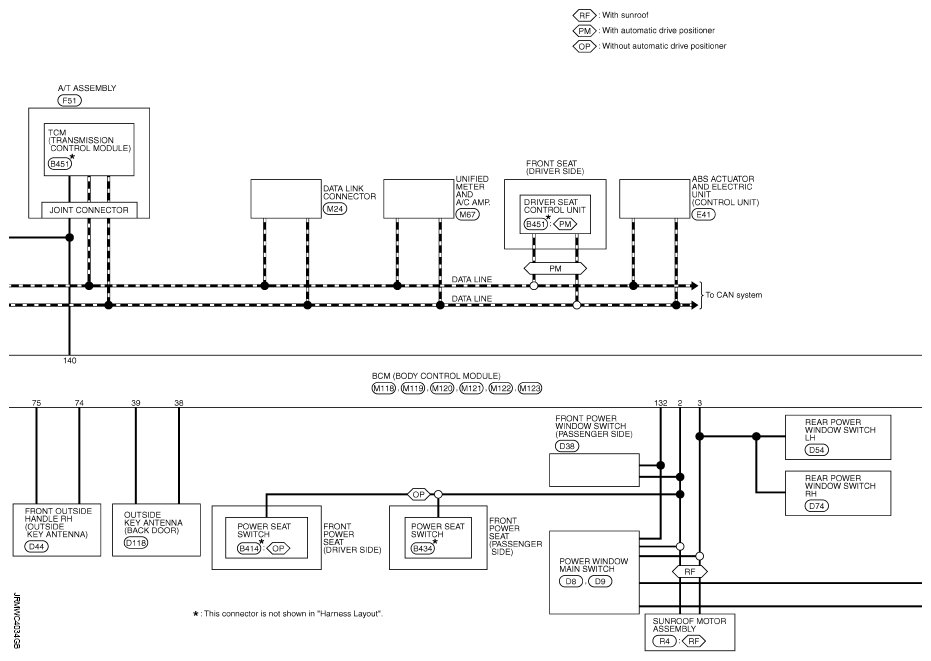

Fig 2: Body Control Module - Wiring Diagram (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

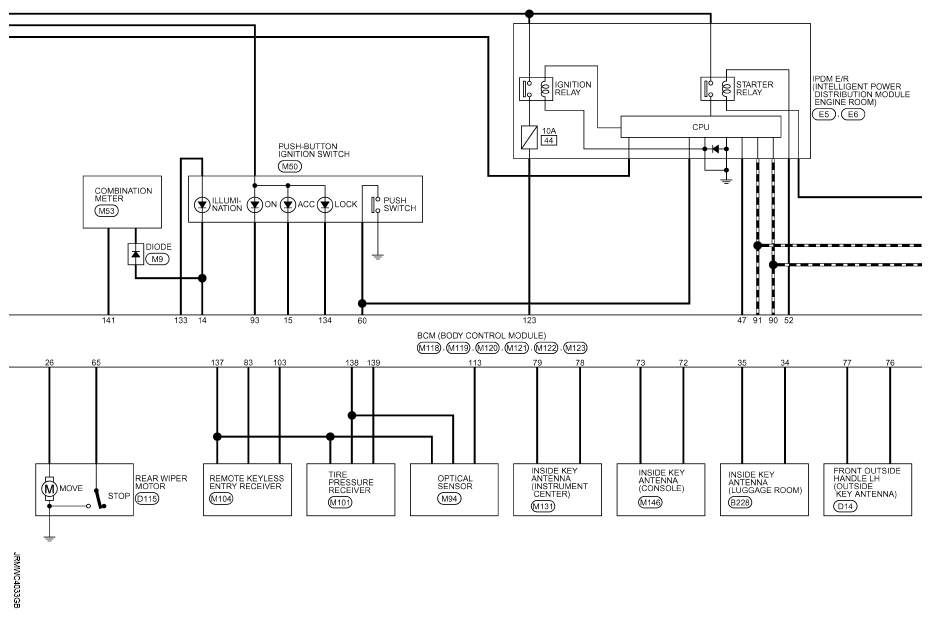

Fig 3: Body Control Module - Wiring Diagram (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

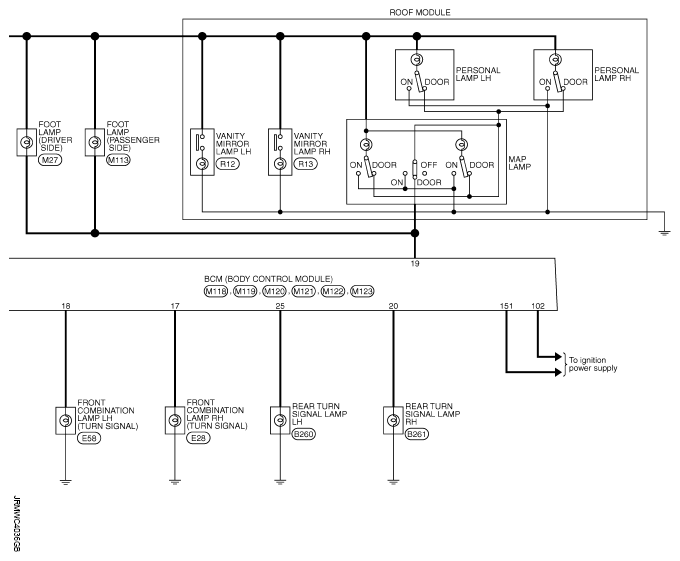

Fig 4: Body Control Module - Wiring Diagram (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

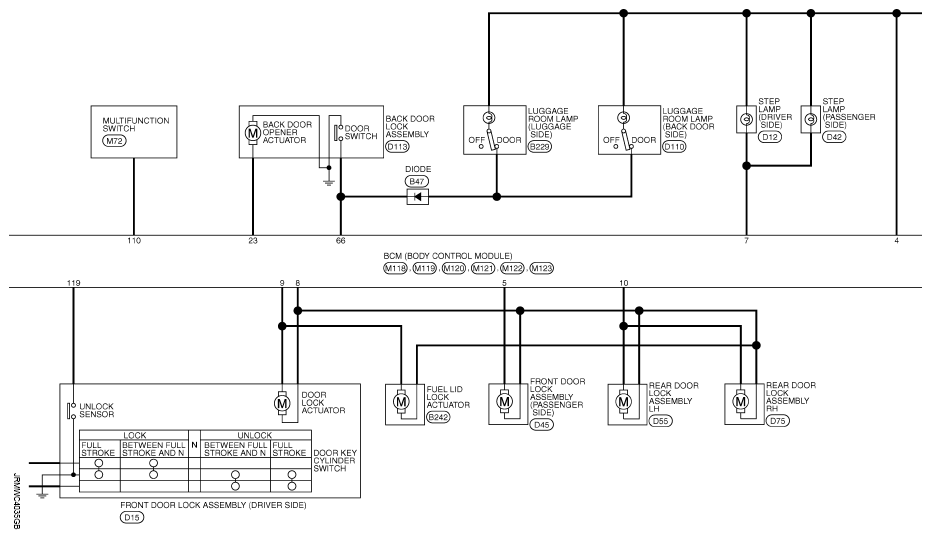

Fig 5: Body Control Module - Wiring Diagram (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
