Warning Function: Component Parts Location

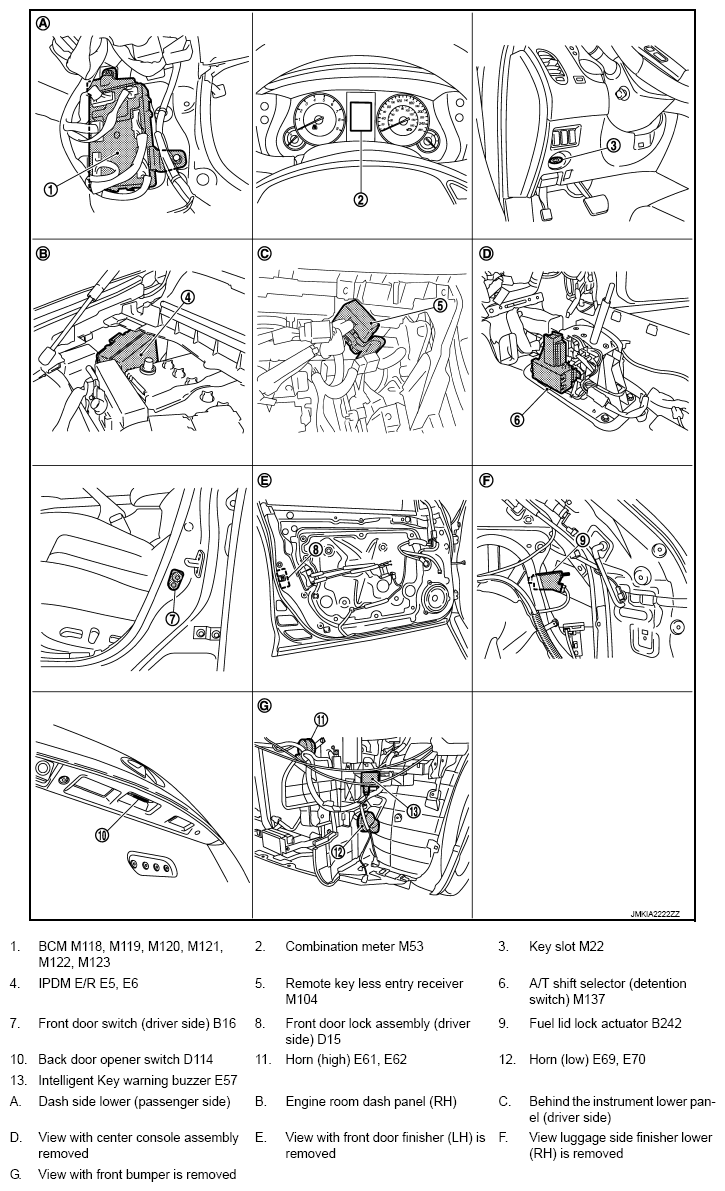

Fig 1: Warning Function Components Location (1 Of 2)
G08195941Courtesy of NISSAN NORTH AMERICA, INC.

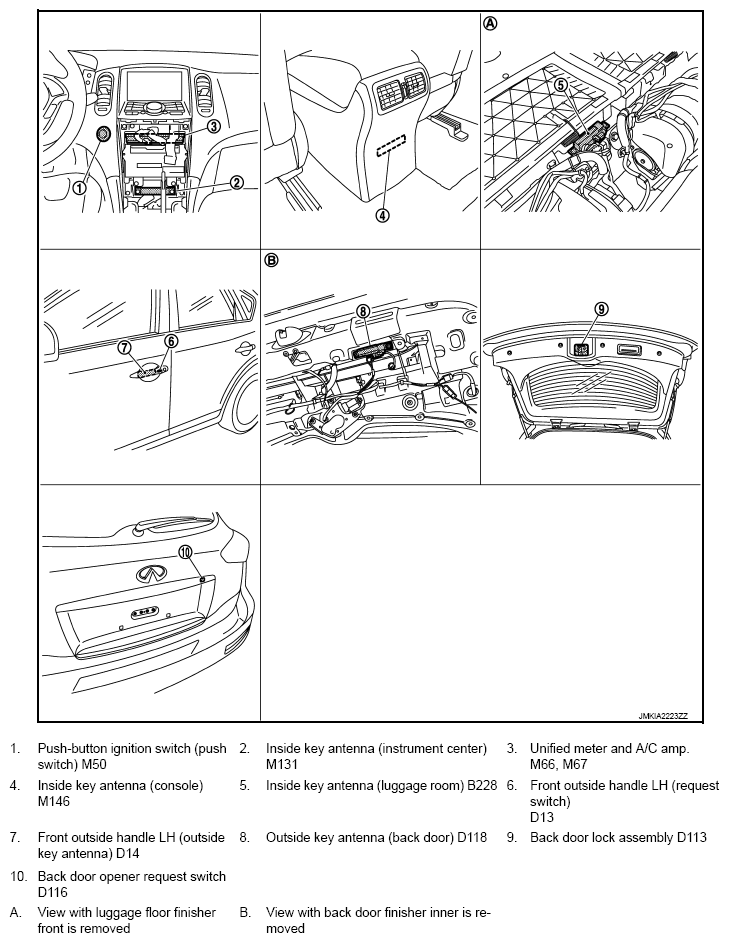

Fig 2: Warning Function Components Location (2 Of 2)
G08195942Courtesy of NISSAN NORTH AMERICA, INC.
