Brake Booster Control Unit
>>
Exploded View
Exploded View

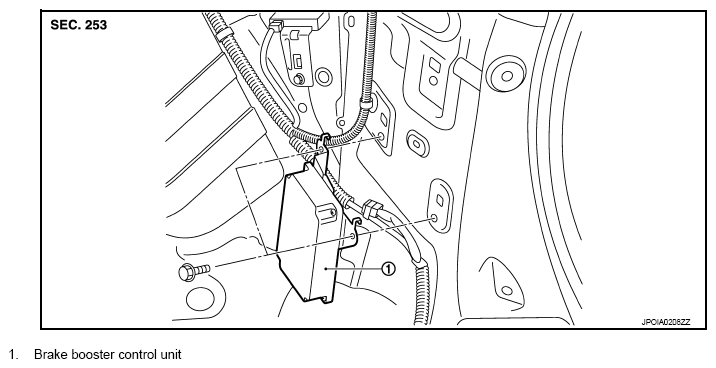

Fig 1: Identifying Brake Booster Control Unit With Mounting Screw
Courtesy of NISSAN NORTH AMERICA, INC.
