Active Noise Control Unit Connector End View (B58)

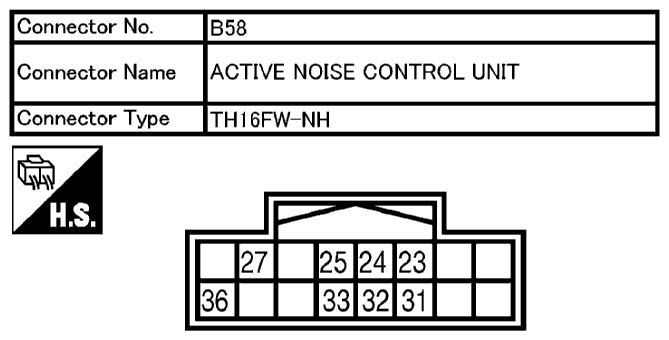

Fig 1: Active Noise Control Unit Connector End View (B58)

G10681515

Courtesy of NISSAN NORTH AMERICA, INC.
