Engine Control System - Component Testing, Symptom Diagnosis, Periodic Maintenance, Removal And Installation, Specifications (VK56VD)
>>
Removal And Installation
>>
EVAP Canister
>>
Exploded View
Exploded View

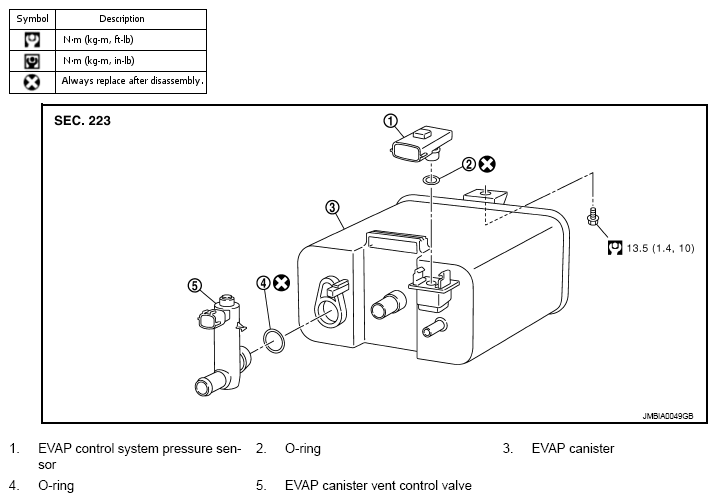

Fig 1: Exploded View Of EVAP Canister With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols not described on the above.
