Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery and battery tray. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect ECM harness connectors (1) as shown in the figure.
  3. Remove ECM bracket bolts (A).
  4. Separate ECM (2) and ECM bracket (3).

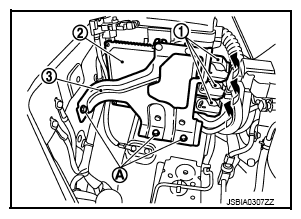

    Fig 1: Identifying ECM, Harness Connectors, Bracket And Bolts
    G08257156Courtesy of NISSAN NORTH AMERICA, INC.
