Exploded View

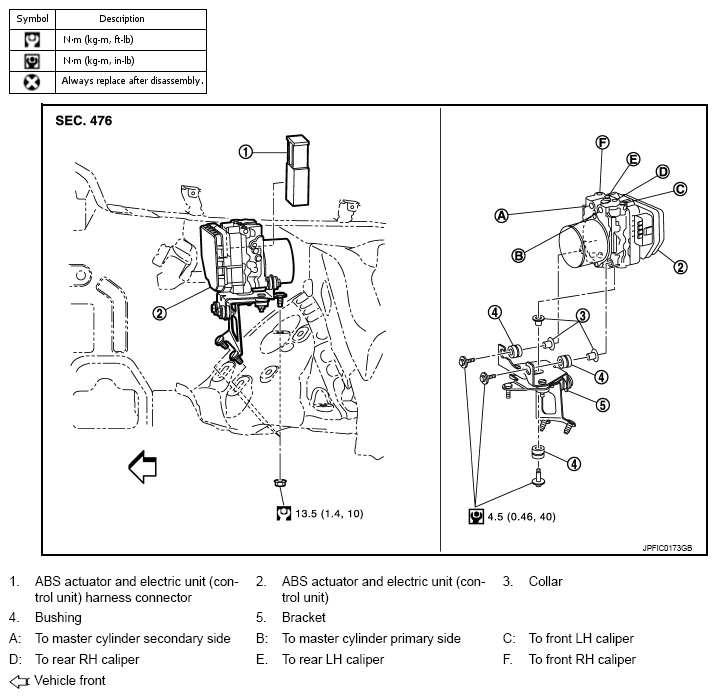

Fig 1: Exploded View Of ABS Actuator & Electric Unit (Control Unit) With Torque Specifications

G07019515

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
