Brake Control System (Brake Assist With Preview Function) -- M37/M56
>>
Brake Assist (With Preview Function)
>>
System Description
>>
Component Parts
>>
Component Parts Location
Component Parts Location

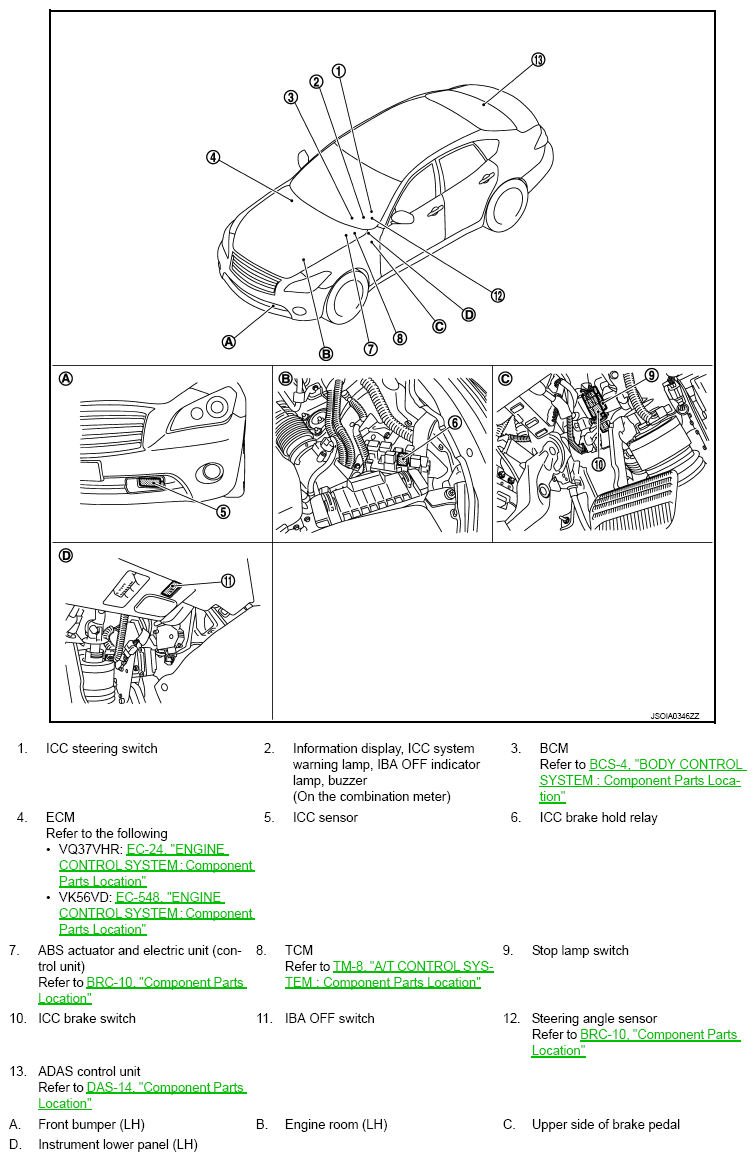

Fig 1: Brake Control System Components Location (Brake Assist With Preview Function)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
