Component Parts Location

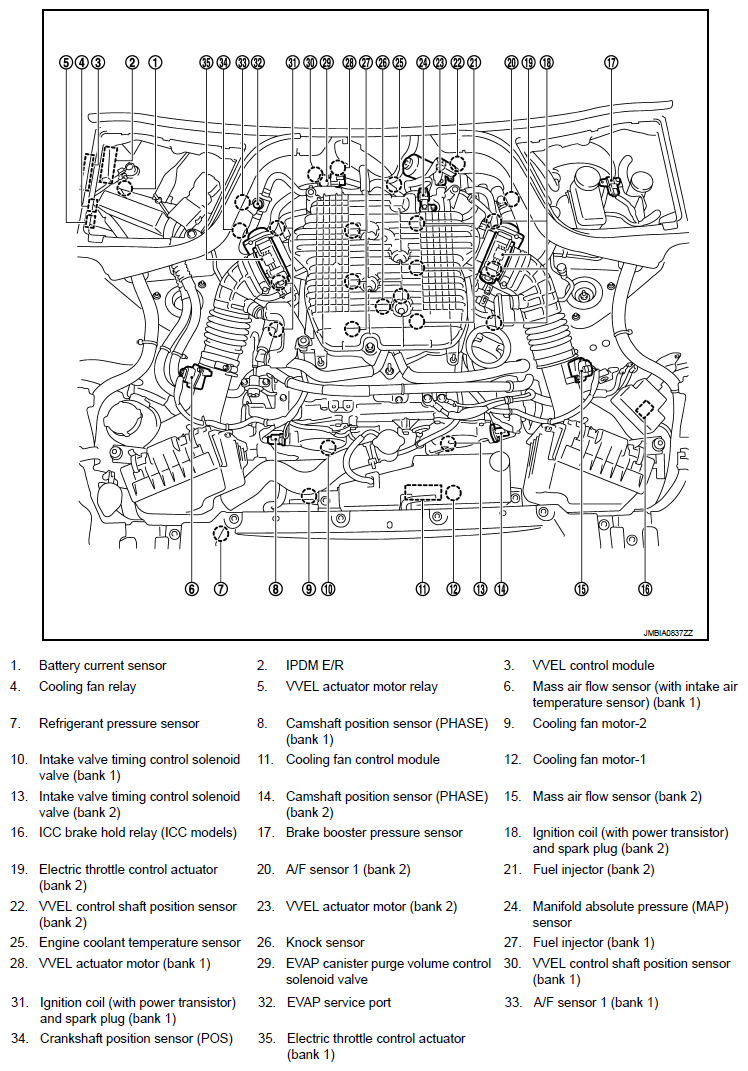

Fig 1: Identifying Automatic Speed Control Device System Components Location (1 Of 4)

G07012059

Courtesy of NISSAN MOTOR CO., U.S.A.

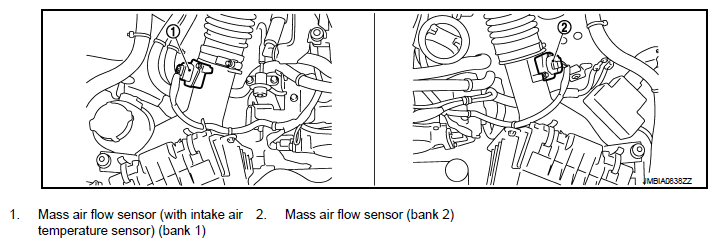

Fig 2: Identifying Automatic Speed Control Device System Components Location (2 Of 4)

G07012060

Courtesy of NISSAN MOTOR CO., U.S.A.

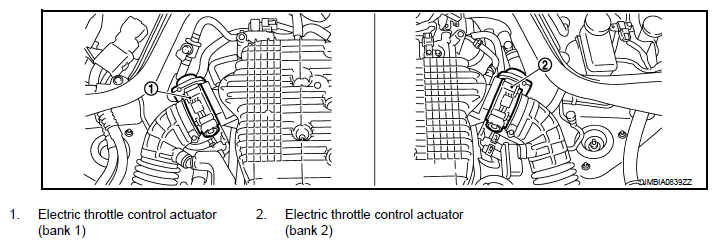

Fig 3: Identifying Automatic Speed Control Device System Components Location (3 Of 4)

G07012061

Courtesy of NISSAN MOTOR CO., U.S.A.

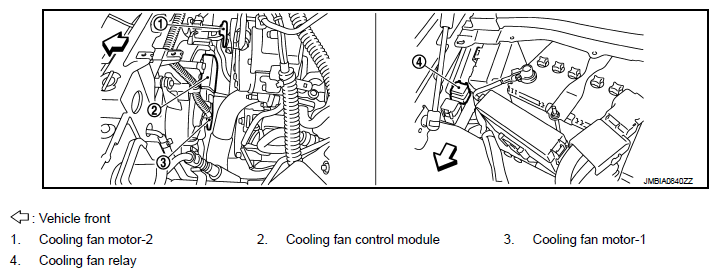

Fig 4: Identifying Automatic Speed Control Device System Components Location (4 Of 4)

G07012062

Courtesy of NISSAN MOTOR CO., U.S.A.

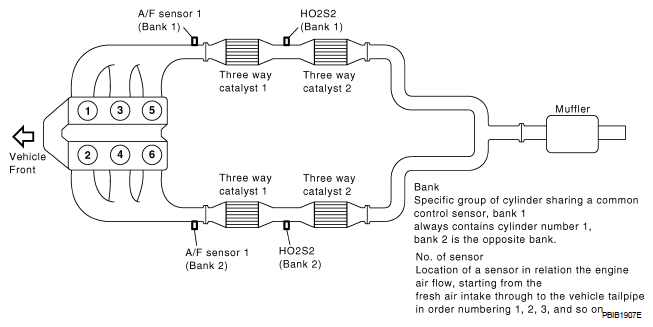

Fig 5: Identifying Automatic Speed Control Device System Three Way Catalyst Converter And Muffler

G07012063

Courtesy of NISSAN MOTOR CO., U.S.A.

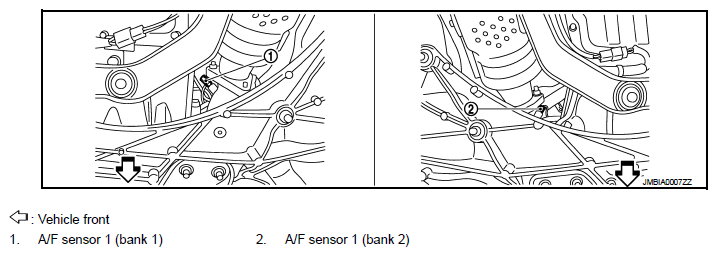

Fig 6: Identifying Automatic Speed Control Device System Components Location (1 Of 17)

G07012064

Courtesy of NISSAN MOTOR CO., U.S.A.

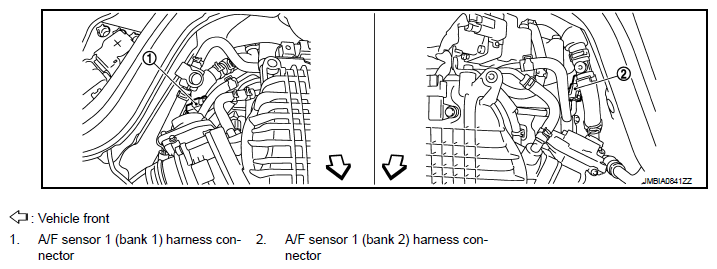

Fig 7: Identifying Automatic Speed Control Device System Components Location (2 Of 17)

G07012065

Courtesy of NISSAN MOTOR CO., U.S.A.

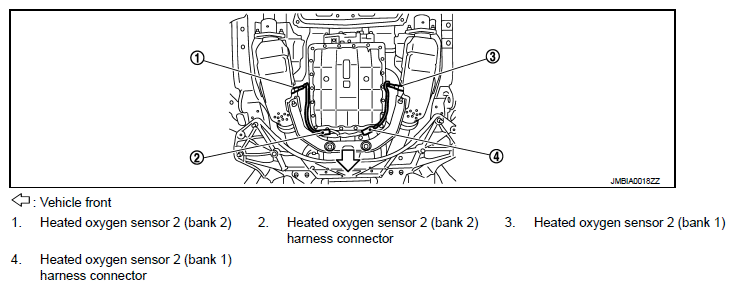

Fig 8: Identifying Automatic Speed Control Device System Components Location (3 Of 17)

G07012066

Courtesy of NISSAN MOTOR CO., U.S.A.

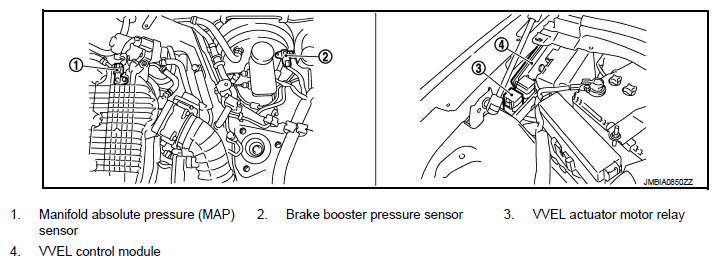

Fig 9: Identifying Automatic Speed Control Device System Components Location (4 Of 17)

G07012067

Courtesy of NISSAN MOTOR CO., U.S.A.

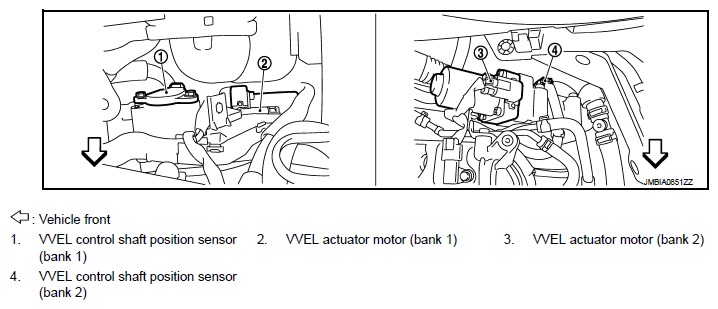

Fig 10: Identifying Automatic Speed Control Device System Components Location (5 Of 17)

G07012068

Courtesy of NISSAN MOTOR CO., U.S.A.

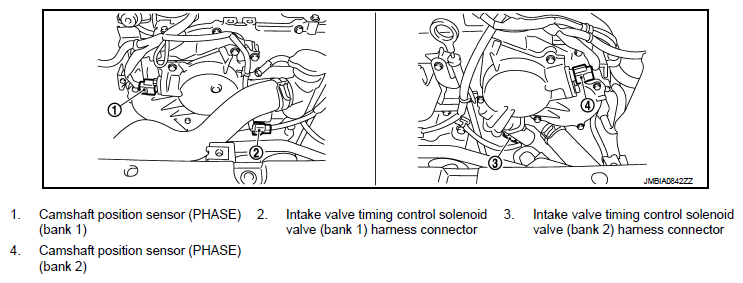

Fig 11: Identifying Automatic Speed Control Device System Components Location (6 Of 17)

G07012069

Courtesy of NISSAN MOTOR CO., U.S.A.

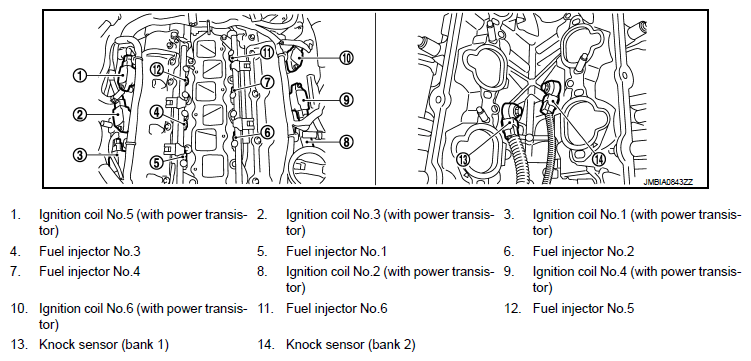

Fig 12: Identifying Automatic Speed Control Device System Components Location (7 Of 17)

G07012070

Courtesy of NISSAN MOTOR CO., U.S.A.

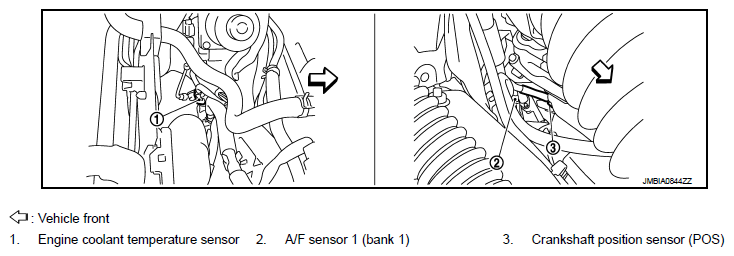

Fig 13: Identifying Automatic Speed Control Device System Components Location (8 Of 17)

G07012071

Courtesy of NISSAN MOTOR CO., U.S.A.

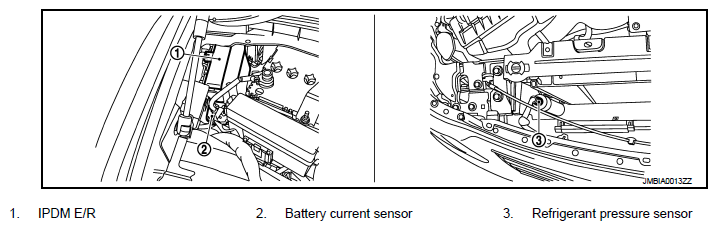

Fig 14: Identifying Automatic Speed Control Device System Components Location (9 Of 17)

G07012072

Courtesy of NISSAN MOTOR CO., U.S.A.

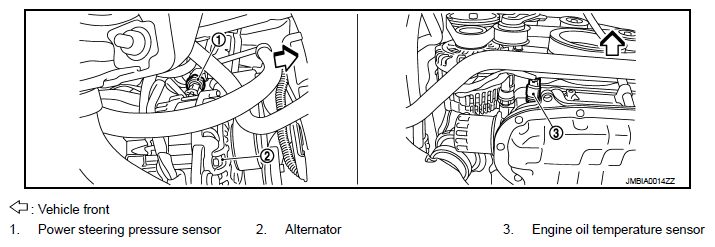

Fig 15: Identifying Automatic Speed Control Device System Components Location (10 Of 17)

G07012073

Courtesy of NISSAN MOTOR CO., U.S.A.

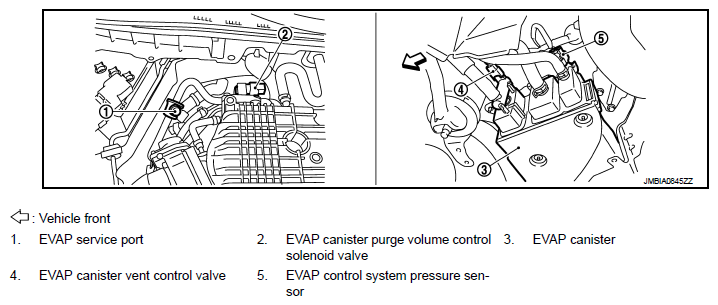

Fig 16: Identifying Automatic Speed Control Device System Components Location (11 Of 17)

G07012074

Courtesy of NISSAN MOTOR CO., U.S.A.

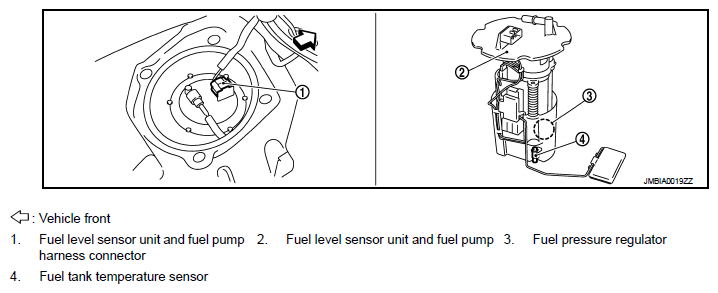

Fig 17: Identifying Automatic Speed Control Device System Components Location (12 Of 17)

G07012075

Courtesy of NISSAN MOTOR CO., U.S.A.

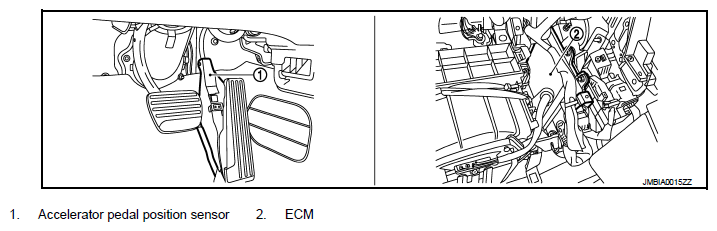

Fig 18: Identifying Automatic Speed Control Device System Components Location (13 Of 17)

G07012076

Courtesy of NISSAN MOTOR CO., U.S.A.

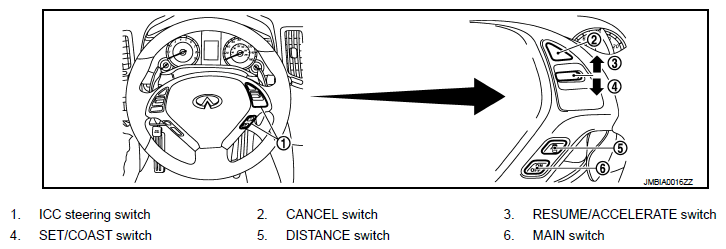

Fig 19: Identifying Automatic Speed Control Device System Components Location (14 Of 17)

G07012077

Courtesy of NISSAN MOTOR CO., U.S.A.

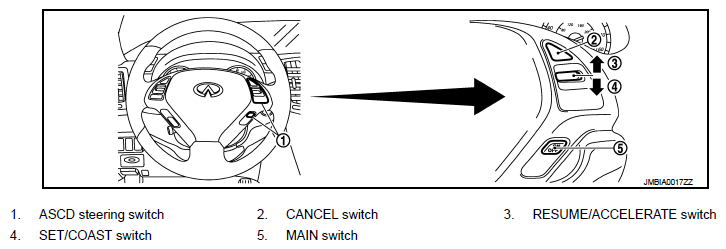

Fig 20: Identifying Automatic Speed Control Device System Components Location (15 Of 17)

G07012078

Courtesy of NISSAN MOTOR CO., U.S.A.

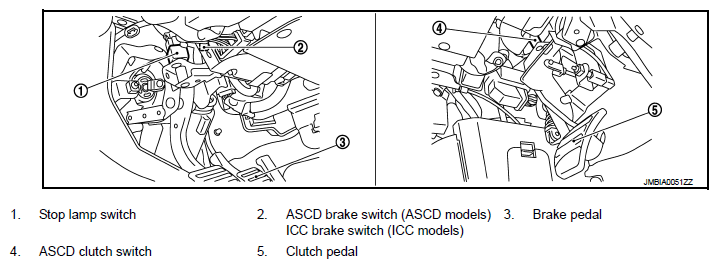

Fig 21: Identifying Automatic Speed Control Device System Components Location (16 Of 17)

G07012079

Courtesy of NISSAN MOTOR CO., U.S.A.

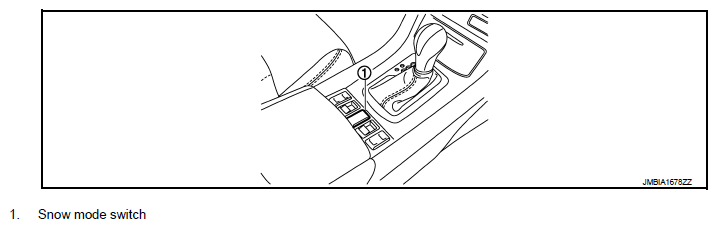

Fig 22: Identifying Automatic Speed Control Device System Components Location (17 Of 17)

G07012080

Courtesy of NISSAN MOTOR CO., U.S.A.
