Brake Control System (With VDC/TCS/Abs) -- G37 Convertible
>>
Removal And Installation
>>
Abs Actuator And Electric Unit (Control Unit)
>>
Exploded View
Exploded View

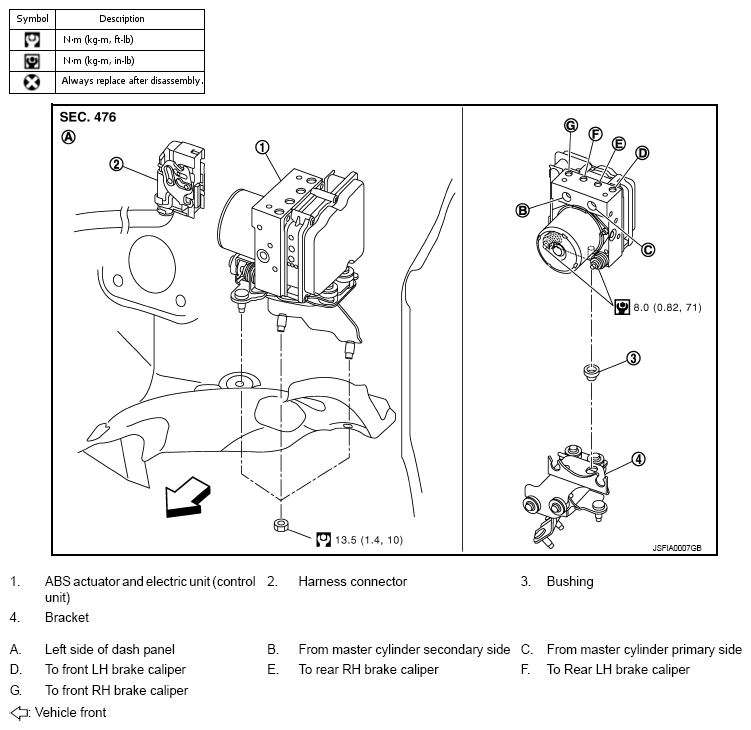

Fig 1: ABS Actuator And Electric Unit With Torque Specifications (Control Unit)
Refer to "
COMPONENTS
" for symbols in the figure.
