Removal and Installation: Removal

  1. Remove the door finisher.

    Refer to "REMOVAL AND INSTALLATION ".

  2. Power window main switch (1) is removed from door finisher using flat-bladed screw driver (A) etc.
CAUTION: Do not fold the pawl of power window main switch finisher.
NOTE: The same procedure is also performed for power window subswitch.

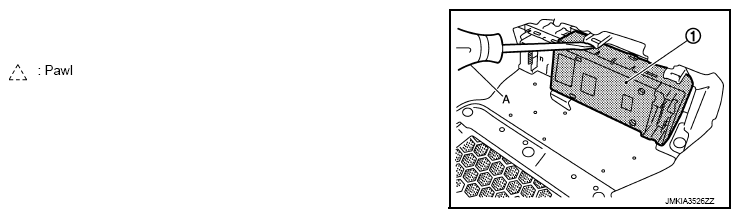

Fig 1: Removing Power Window Main Switch From Door Finisher Using Flat-Bladed Screw Driver
G07161964
