Overall Sequence

WARNING: This page is about a different car, the 2011 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

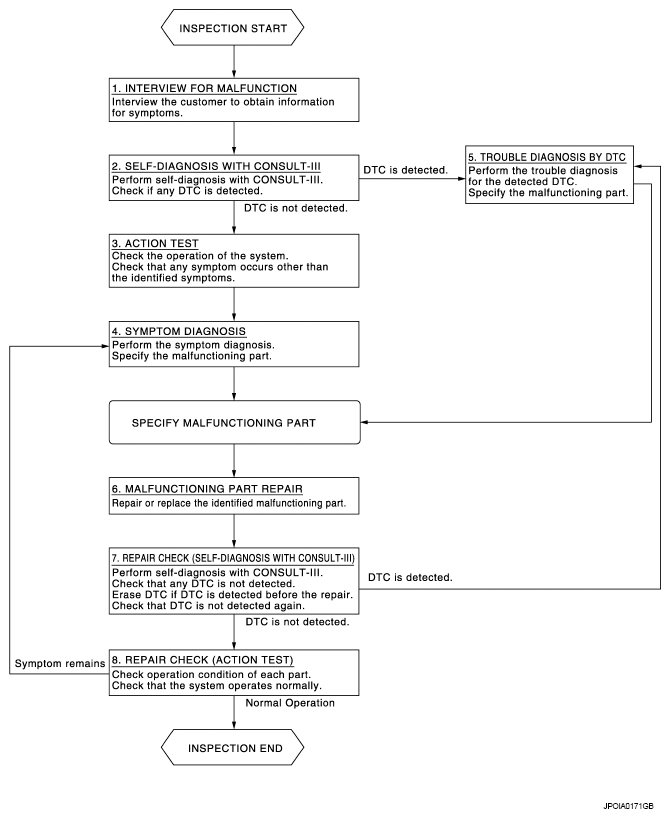

Fig 1: Diagnosis And Repair Work Flow Chart
G07162202
