IGNITION TIMING : Special Repair Requirement

  1. CHECK IGNITION TIMING

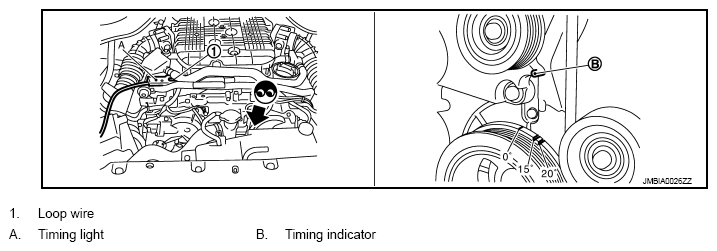

    1. Attach timing light to loop wire as shown in the figure.
      Fig 1: Checking Ignition Timing
      G07014608Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Check ignition timing.

      INSPECTION END
