Component Parts Location

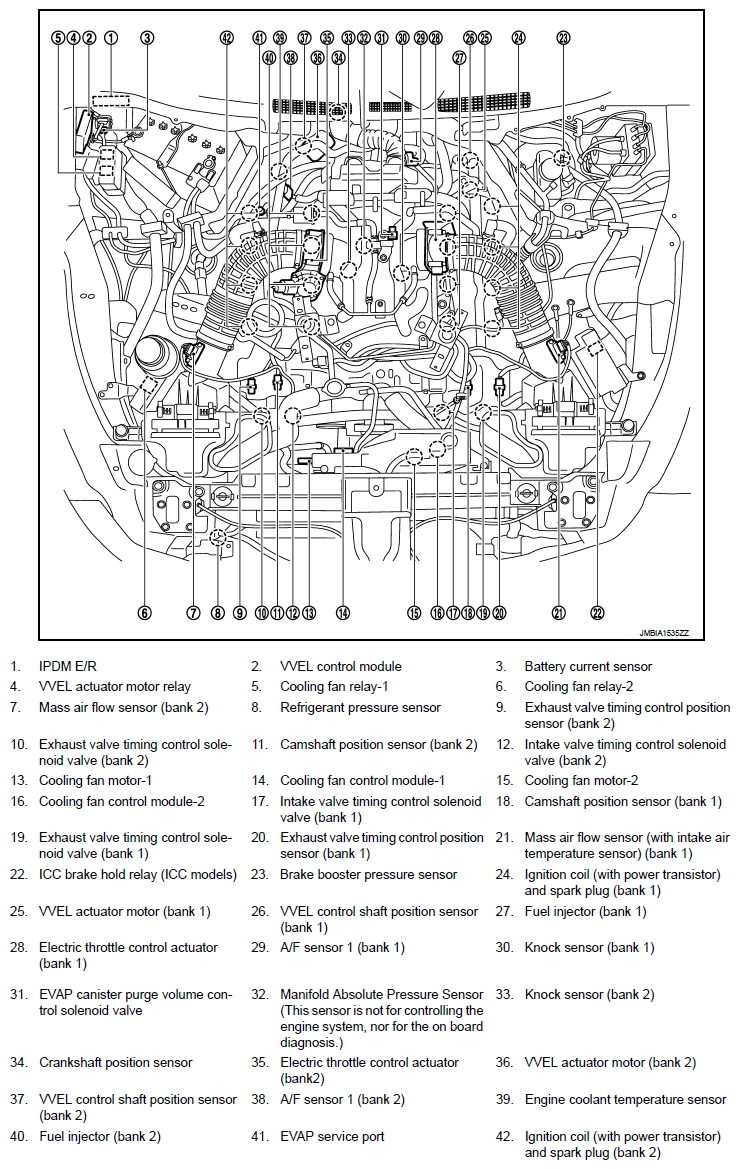

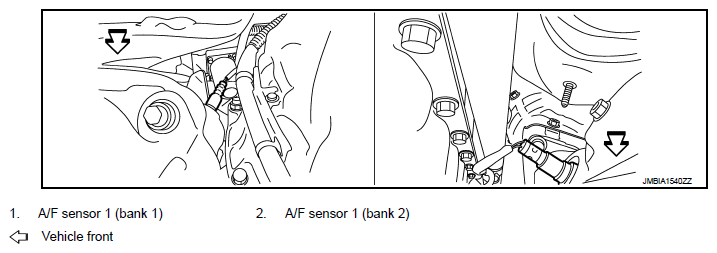

Fig 1: Identifying Electric Ignition System Parts Location (1 Of 25)

G07227213

Courtesy of NISSAN MOTOR CO., U.S.A.

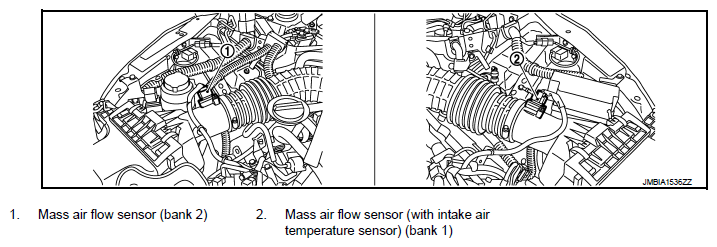

Fig 2: Identifying Electric Ignition System Parts Location (2 Of 25)

G07227214

Courtesy of NISSAN MOTOR CO., U.S.A.

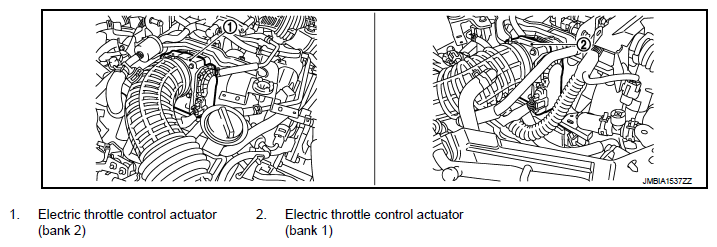

Fig 3: Identifying Electric Ignition System Parts Location (3 Of 25)

G07227215

Courtesy of NISSAN MOTOR CO., U.S.A.

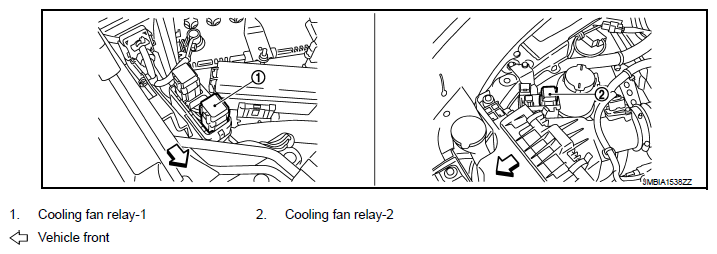

Fig 4: Identifying Electric Ignition System Parts Location (4 Of 25)

G07227216

Courtesy of NISSAN MOTOR CO., U.S.A.

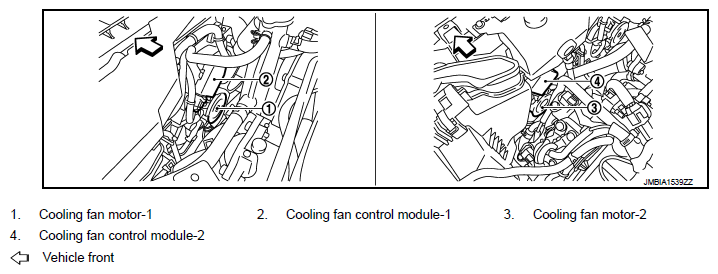

Fig 5: Identifying Electric Ignition System Parts Location (5 Of 25)

G07227217

Courtesy of NISSAN MOTOR CO., U.S.A.

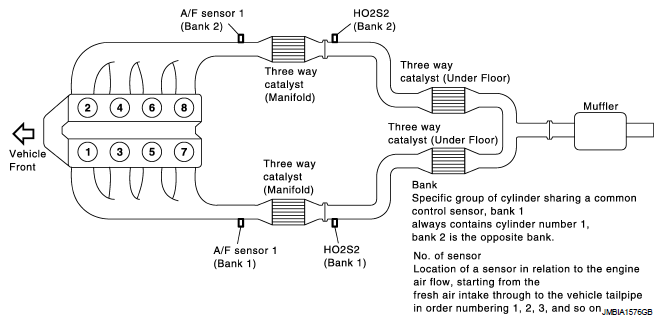

Fig 6: Identifying Electric Ignition System Parts Location (6 Of 25)

G07227218

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Electric Ignition System Parts Location (7 Of 25)

G07227219

Courtesy of NISSAN MOTOR CO., U.S.A.

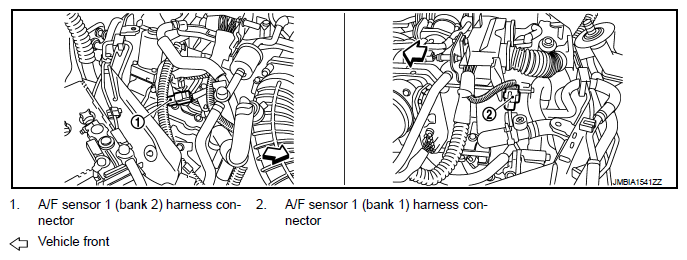

Fig 8: Identifying Electric Ignition System Parts Location (8 Of 25)

G07227220

Courtesy of NISSAN MOTOR CO., U.S.A.

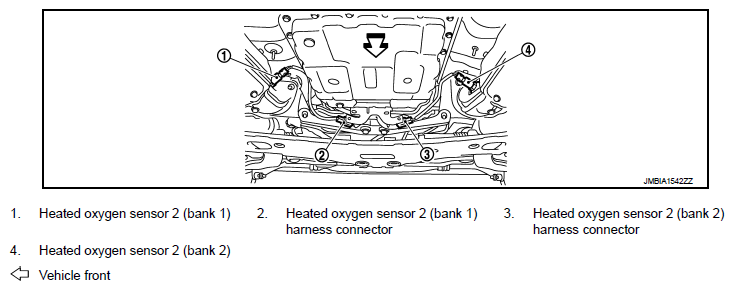

Fig 9: Identifying Electric Ignition System Parts Location (9 Of 25)

G07227221

Courtesy of NISSAN MOTOR CO., U.S.A.

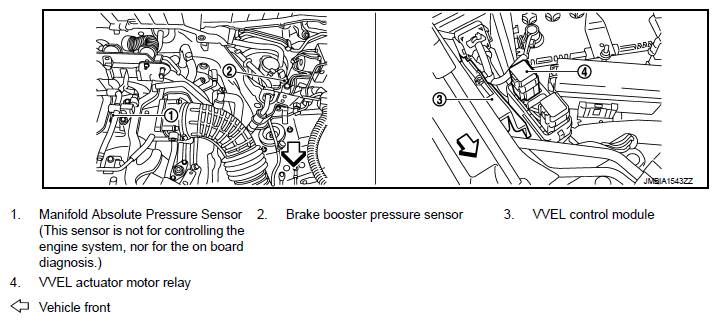

Fig 10: Identifying Electric Ignition System Parts Location (10 Of 25)

G07227222

Courtesy of NISSAN MOTOR CO., U.S.A.

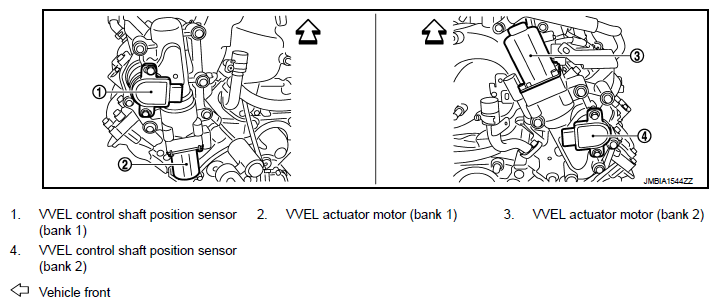

Fig 11: Identifying Electric Ignition System Parts Location (11 Of 25)

G07227223

Courtesy of NISSAN MOTOR CO., U.S.A.

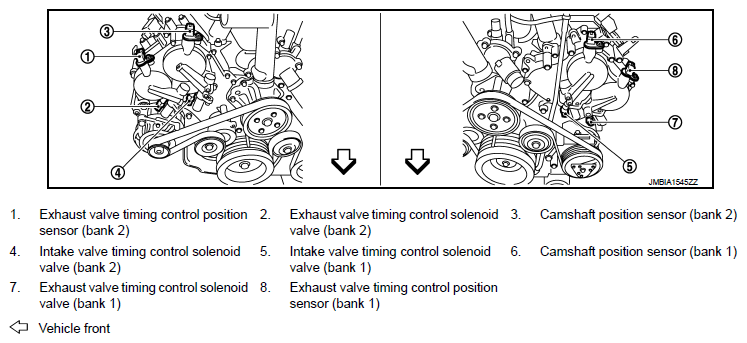

Fig 12: Identifying Electric Ignition System Parts Location (12 Of 25)

G07227224

Courtesy of NISSAN MOTOR CO., U.S.A.

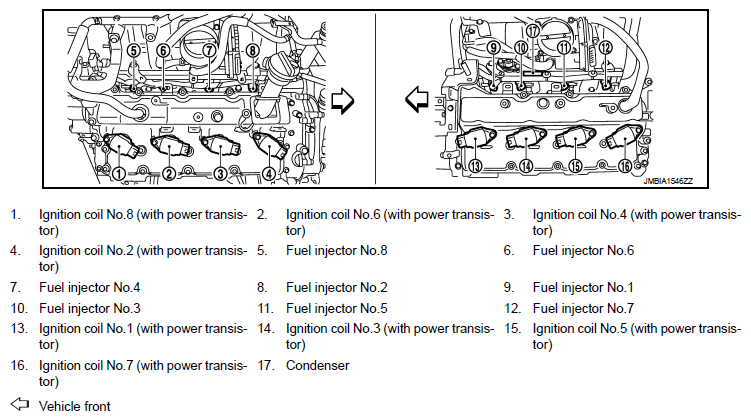

Fig 13: Identifying Electric Ignition System Parts Location (13 Of 25)

G07227225

Courtesy of NISSAN MOTOR CO., U.S.A.

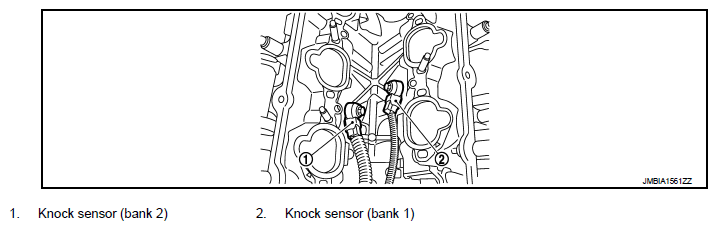

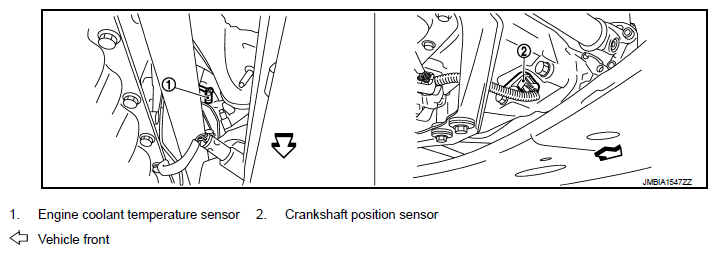

Fig 14: Identifying Electric Ignition System Parts Location (14 Of 25)

G07227226

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Electric Ignition System Parts Location (15 Of 25)

G07227227

Courtesy of NISSAN MOTOR CO., U.S.A.

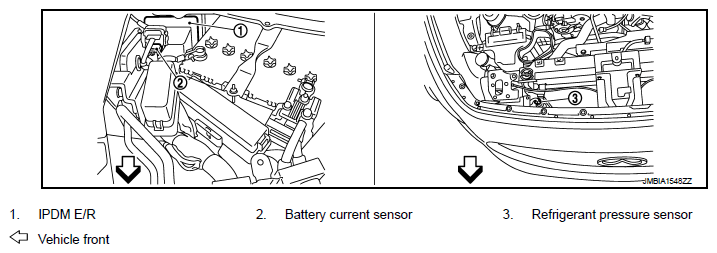

Fig 16: Identifying Electric Ignition System Parts Location (16 Of 25)

G07227228

Courtesy of NISSAN MOTOR CO., U.S.A.

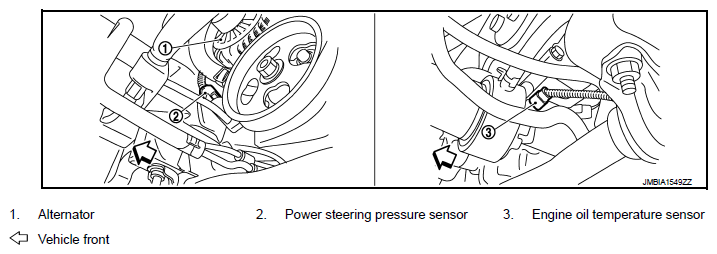

Fig 17: Identifying Electric Ignition System Parts Location (17 Of 25)

G07227229

Courtesy of NISSAN MOTOR CO., U.S.A.

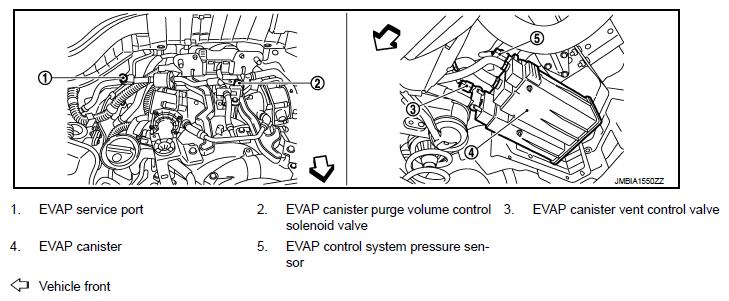

Fig 18: Identifying Electric Ignition System Parts Location (18 Of 25)

G07227230

Courtesy of NISSAN MOTOR CO., U.S.A.

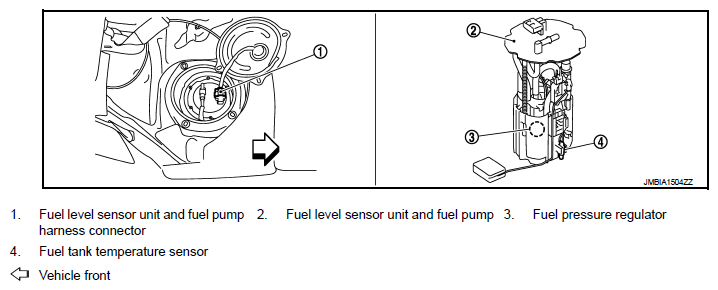

Fig 19: Identifying Electric Ignition System Parts Location (19 Of 25)

G07227231

Courtesy of NISSAN MOTOR CO., U.S.A.

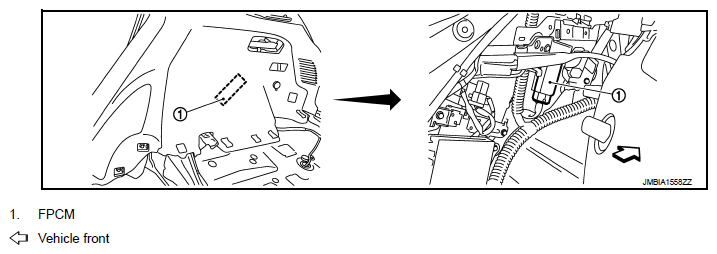

Fig 20: Identifying Electric Ignition System Parts Location (20 Of 25)

G07227232

Courtesy of NISSAN MOTOR CO., U.S.A.

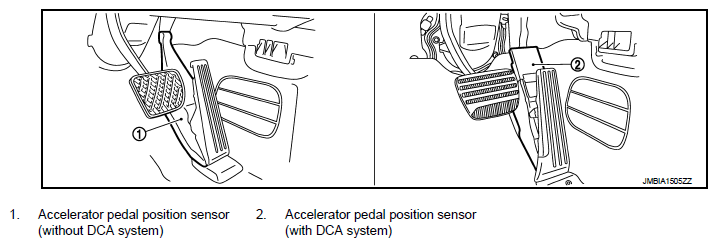

Fig 21: Identifying Electric Ignition System Parts Location (21 Of 25)

G07227233

Courtesy of NISSAN MOTOR CO., U.S.A.

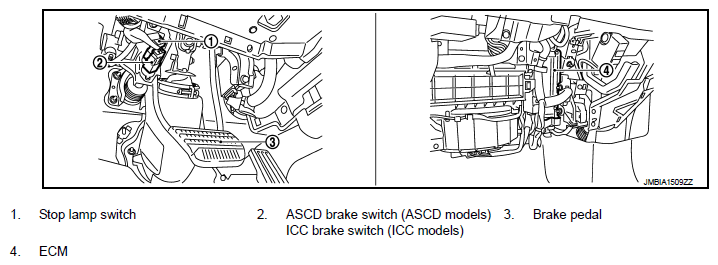

Fig 22: Identifying Electric Ignition System Parts Location (22 Of 25)

G07227234

Courtesy of NISSAN MOTOR CO., U.S.A.

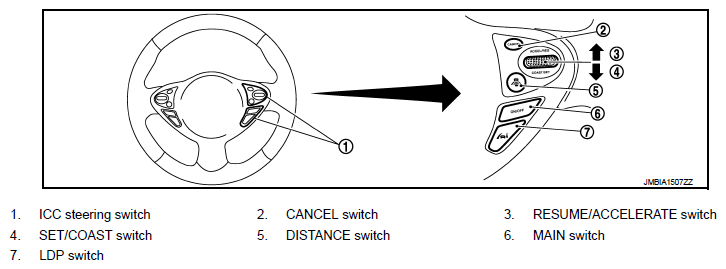

Fig 23: Identifying Electric Ignition System Parts Location (23 Of 25)

G07227235

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 24: Identifying Electric Ignition System Parts Location (24 Of 25)

G07227236

Courtesy of NISSAN MOTOR CO., U.S.A.

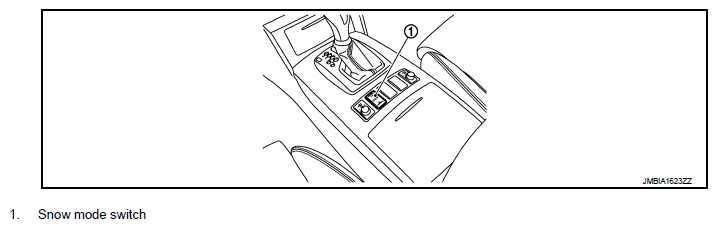

Fig 25: Identifying Electric Ignition System Parts Location (25 Of 25)

G07227237

Courtesy of NISSAN MOTOR CO., U.S.A.
