Component Parts Location

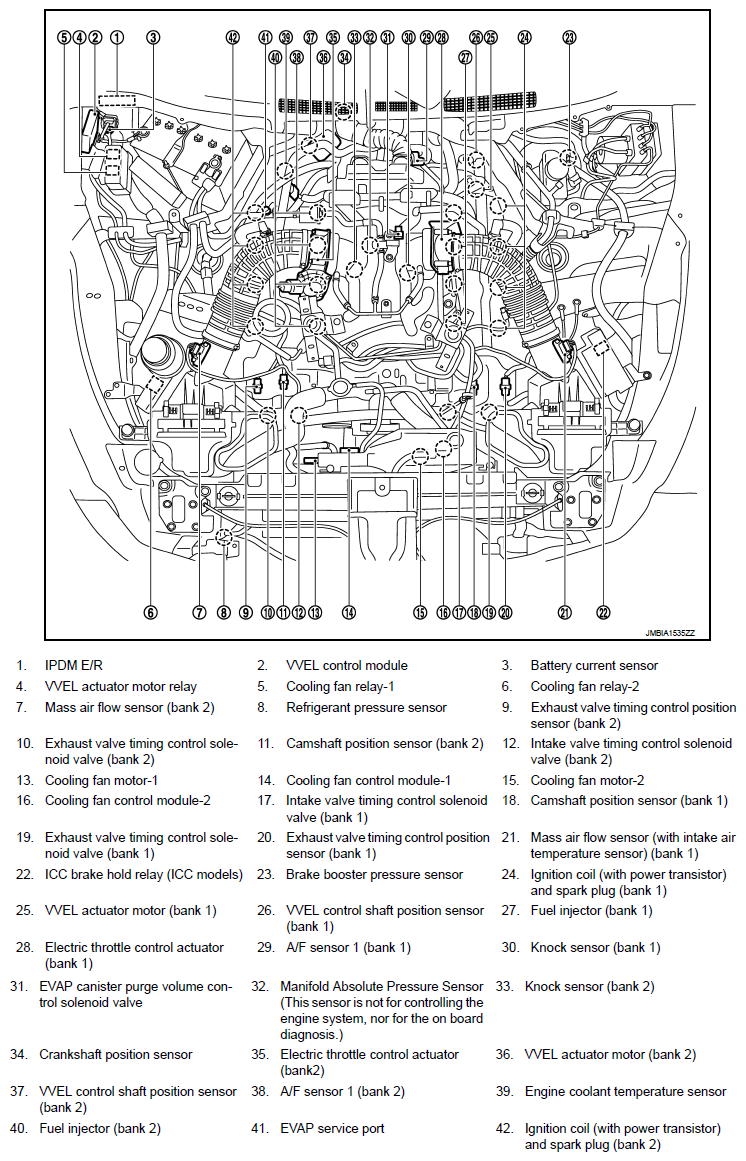

Fig 1: Identifying Air Conditioning Cut Control System Parts Location (1 Of 25)

G07227239

Courtesy of NISSAN MOTOR CO., U.S.A.

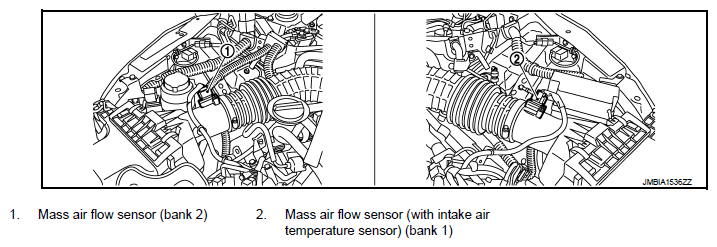

Fig 2: Identifying Air Conditioning Cut Control System Parts Location (2 Of 25)

G07227240

Courtesy of NISSAN MOTOR CO., U.S.A.

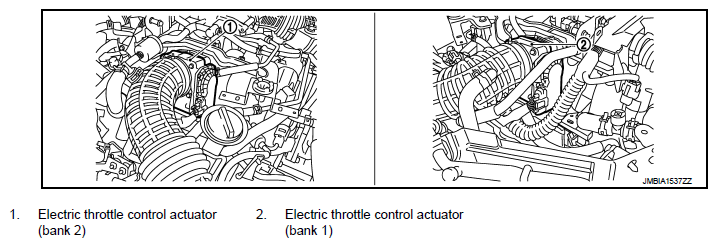

Fig 3: Identifying Air Conditioning Cut Control System Parts Location (3 Of 25)

G07227241

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Air Conditioning Cut Control System Parts Location (4 Of 25)

G07227242

Courtesy of NISSAN MOTOR CO., U.S.A.

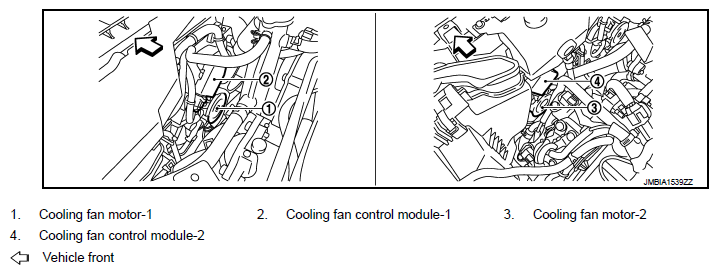

Fig 5: Identifying Air Conditioning Cut Control System Parts Location (5 Of 25)

G07227243

Courtesy of NISSAN MOTOR CO., U.S.A.

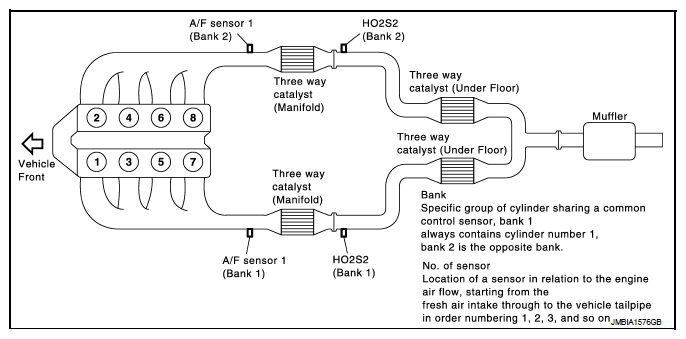

Fig 6: Identifying Air Conditioning Cut Control System Parts Location (6 Of 25)

G07227244

Courtesy of NISSAN MOTOR CO., U.S.A.

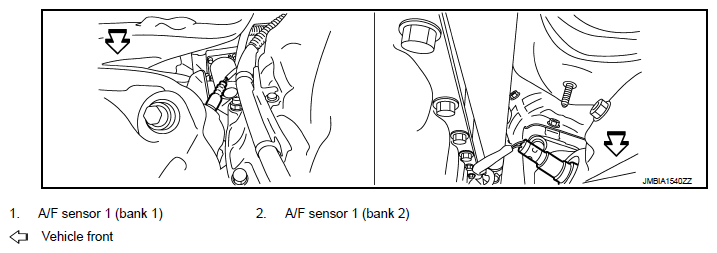

Fig 7: Identifying Air Conditioning Cut Control System Parts Location (7 Of 25)

G07227245

Courtesy of NISSAN MOTOR CO., U.S.A.

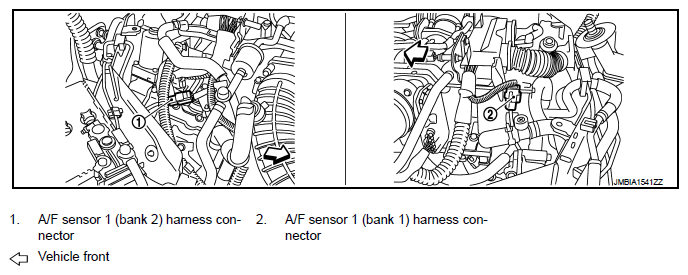

Fig 8: Identifying Air Conditioning Cut Control System Parts Location (8 Of 25)

G07227246

Courtesy of NISSAN MOTOR CO., U.S.A.

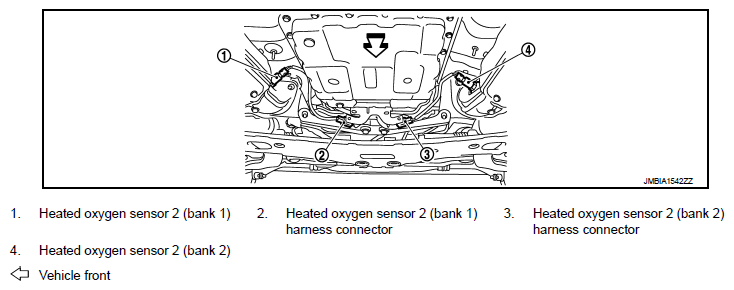

Fig 9: Identifying Air Conditioning Cut Control System Parts Location (9 Of 25)

G07227247

Courtesy of NISSAN MOTOR CO., U.S.A.

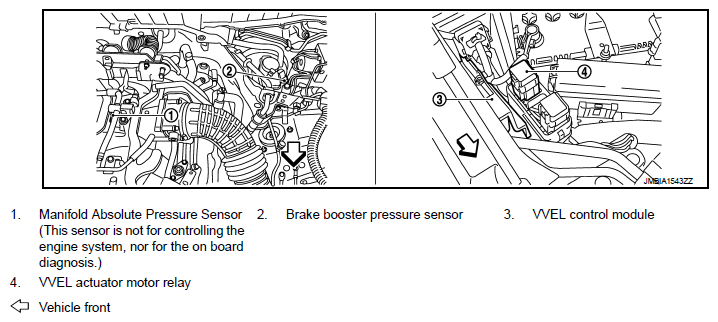

Fig 10: Identifying Air Conditioning Cut Control System Parts Location (10 Of 25)

G07227248

Courtesy of NISSAN MOTOR CO., U.S.A.

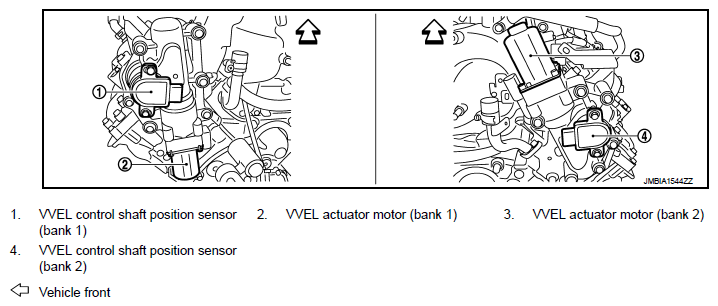

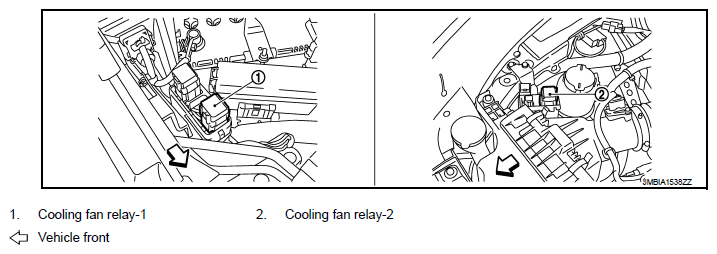

Fig 11: Identifying Air Conditioning Cut Control System Parts Location (11 Of 25)

G07227249

Courtesy of NISSAN MOTOR CO., U.S.A.

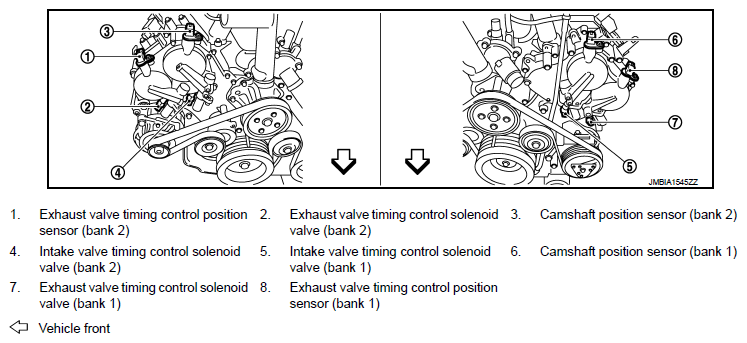

Fig 12: Identifying Air Conditioning Cut Control System Parts Location (12 Of 25)

G07227250

Courtesy of NISSAN MOTOR CO., U.S.A.

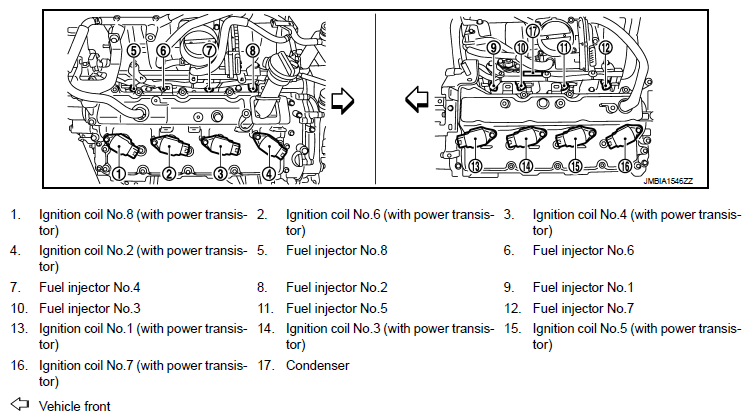

Fig 13: Identifying Air Conditioning Cut Control System Parts Location (13 Of 25)

G07227251

Courtesy of NISSAN MOTOR CO., U.S.A.

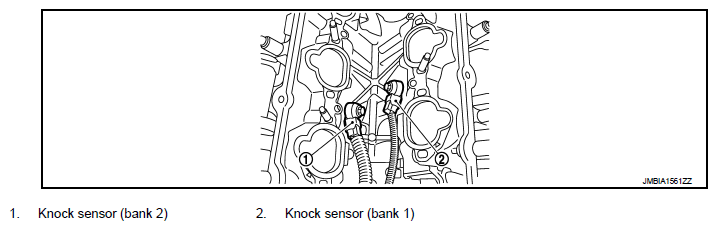

Fig 14: Identifying Air Conditioning Cut Control System Parts Location (14 Of 25)

G07227252

Courtesy of NISSAN MOTOR CO., U.S.A.

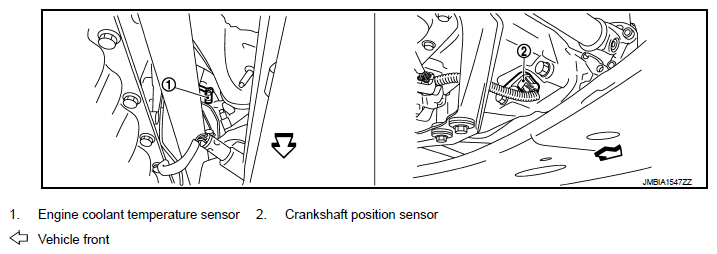

Fig 15: Identifying Air Conditioning Cut Control System Parts Location (15 Of 25)

G07227253

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Air Conditioning Cut Control System Parts Location (16 Of 25)

G07227254

Courtesy of NISSAN MOTOR CO., U.S.A.

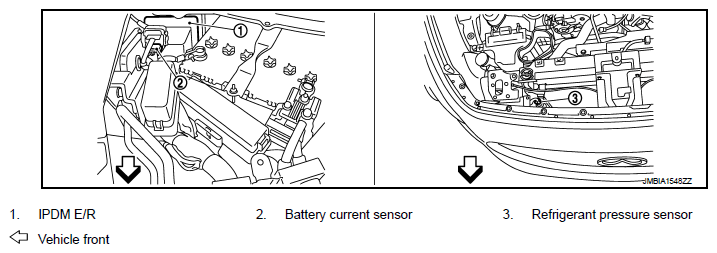

Fig 17: Identifying Air Conditioning Cut Control System Parts Location (17 Of 25)

G07227255

Courtesy of NISSAN MOTOR CO., U.S.A.

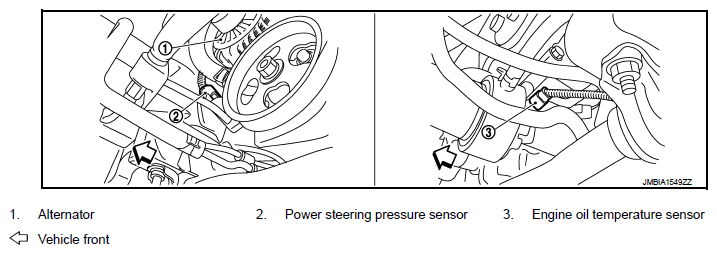

Fig 18: Identifying Air Conditioning Cut Control System Parts Location (18 Of 25)

G07227256

Courtesy of NISSAN MOTOR CO., U.S.A.

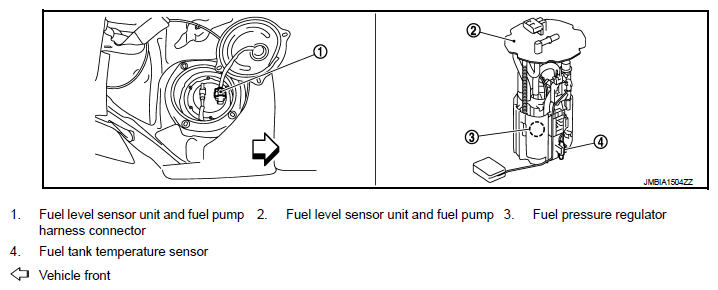

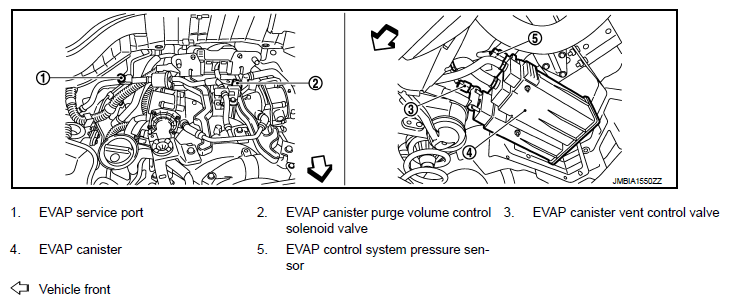

Fig 19: Identifying Air Conditioning Cut Control System Parts Location (19 Of 25)

G07227257

Courtesy of NISSAN MOTOR CO., U.S.A.

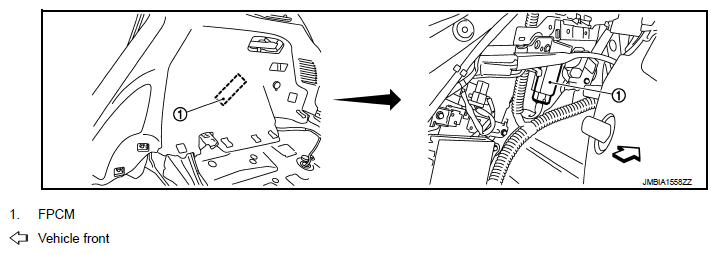

Fig 20: Identifying Air Conditioning Cut Control System Parts Location (20 Of 25)

G07227258

Courtesy of NISSAN MOTOR CO., U.S.A.

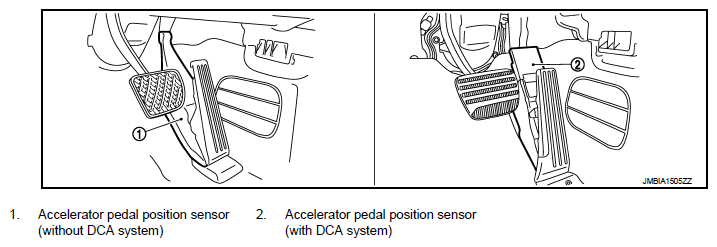

Fig 21: Identifying Air Conditioning Cut Control System Parts Location (21 Of 25)

G07227259

Courtesy of NISSAN MOTOR CO., U.S.A.

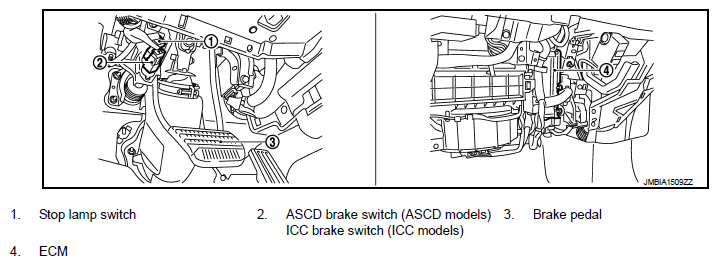

Fig 22: Identifying Air Conditioning Cut Control System Parts Location (22 Of 25)

G07227260

Courtesy of NISSAN MOTOR CO., U.S.A.

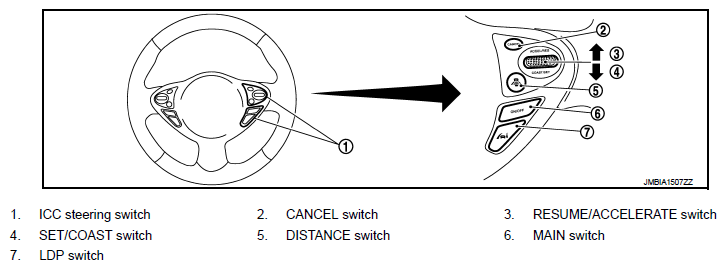

Fig 23: Identifying Air Conditioning Cut Control System Parts Location (23 Of 25)

G07227261

Courtesy of NISSAN MOTOR CO., U.S.A.

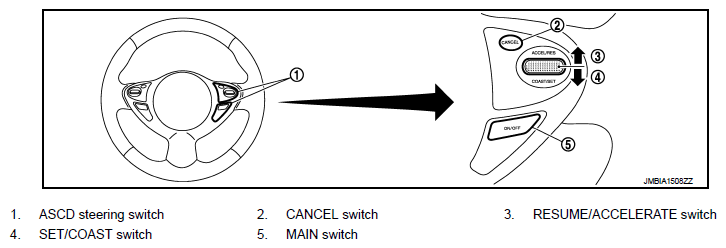

Fig 24: Identifying Air Conditioning Cut Control System Parts Location (24 Of 25)

G07227262

Courtesy of NISSAN MOTOR CO., U.S.A.

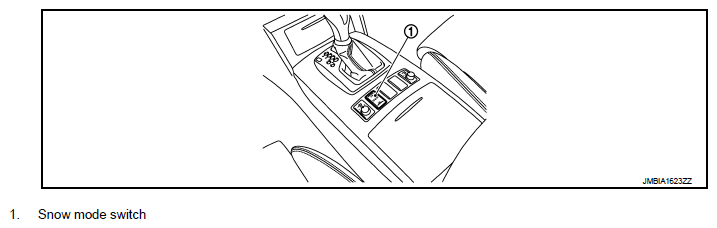

Fig 25: Identifying Air Conditioning Cut Control System Parts Location (25 Of 25)

G07227263

Courtesy of NISSAN MOTOR CO., U.S.A.
