IGNITION TIMING: Special Repair Requirement

  1. CHECK IGNITION TIMING
    1. Attach timing light to loop wire as shown.

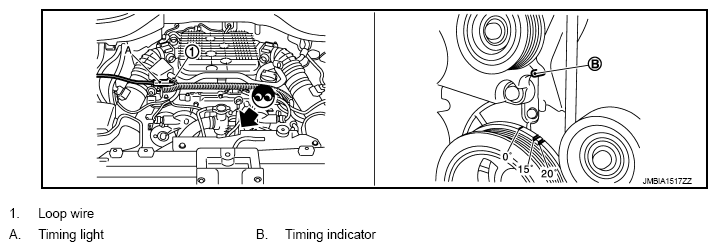

      Fig 1: Identifying Loop Wire Timing Indicator And Timing Light
      G07239846Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Check ignition timing.

    INSPECTION END
