System Diagram

WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

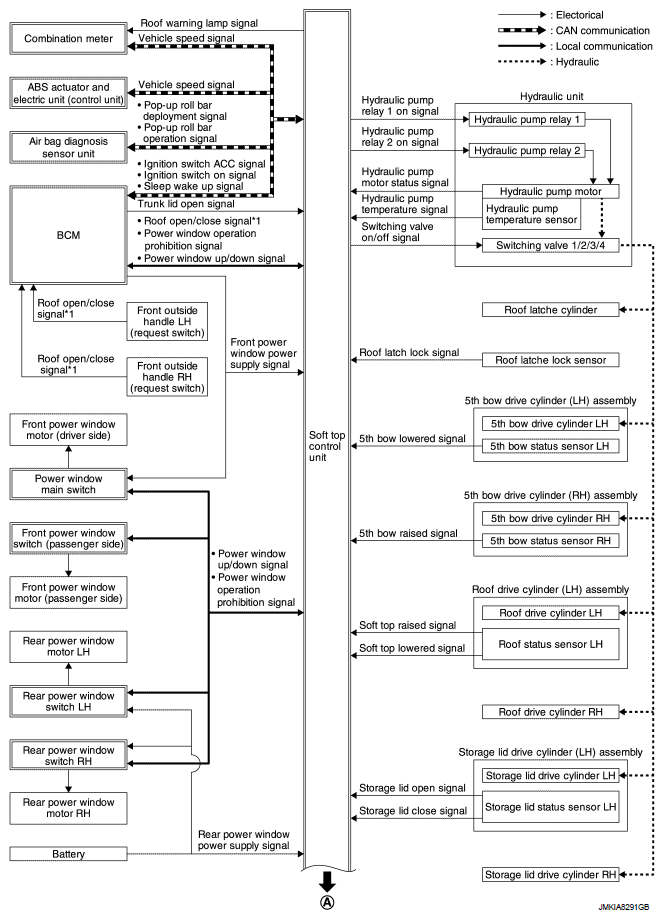

Fig 1: Soft Top System Diagram (1 Of 2)
G07133866Courtesy of NISSAN MOTOR CO., U.S.A.

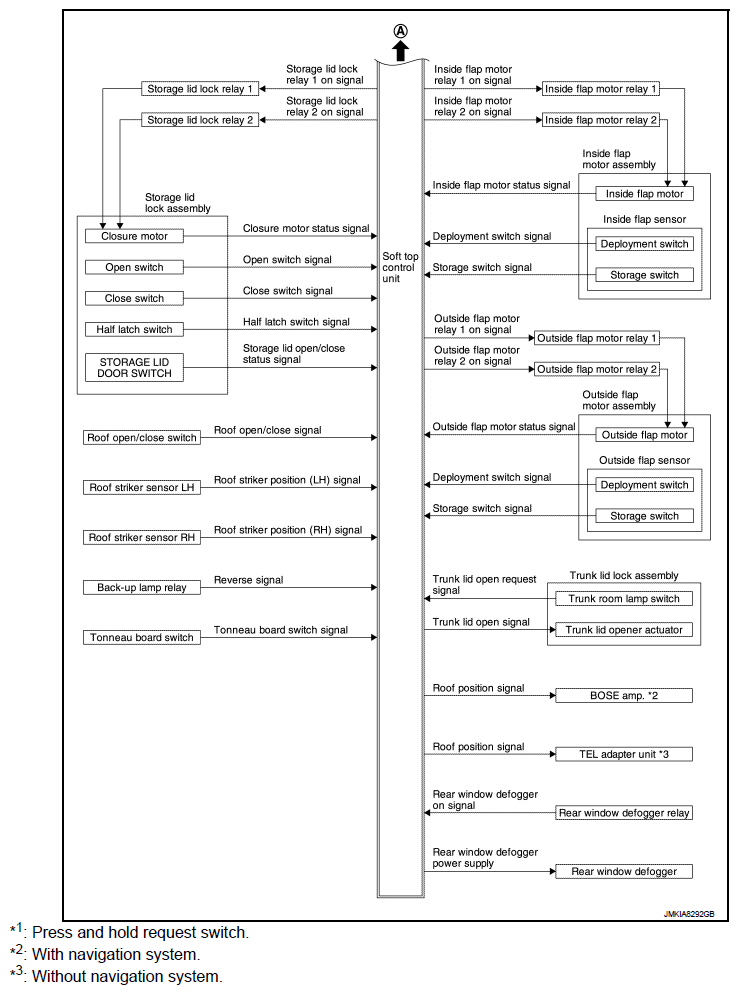

Fig 2: Soft Top System Diagram (2 Of 2)
G07133867Courtesy of NISSAN MOTOR CO., U.S.A.
