Wiring Diagram - ENGINE CONTROL SYSTEM -

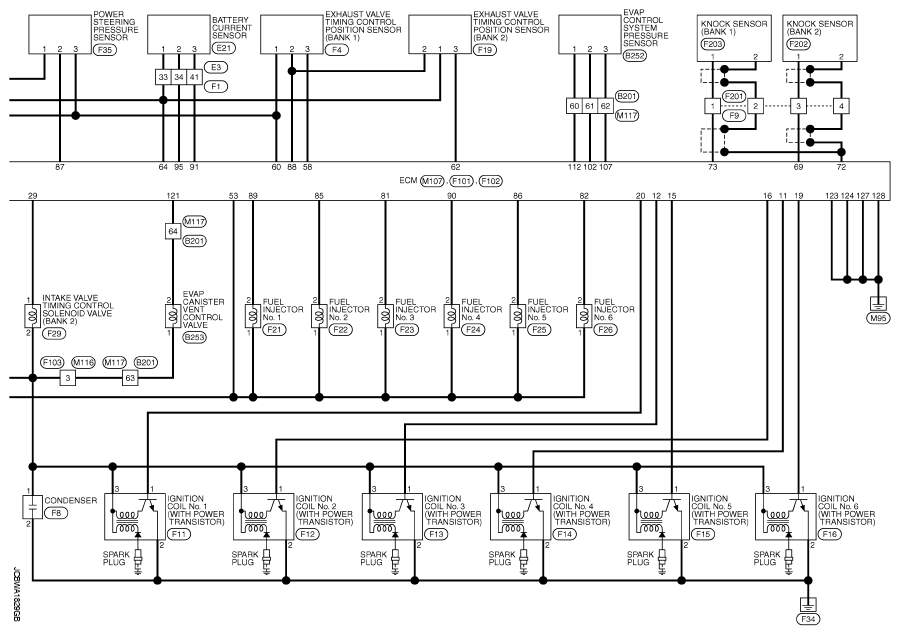

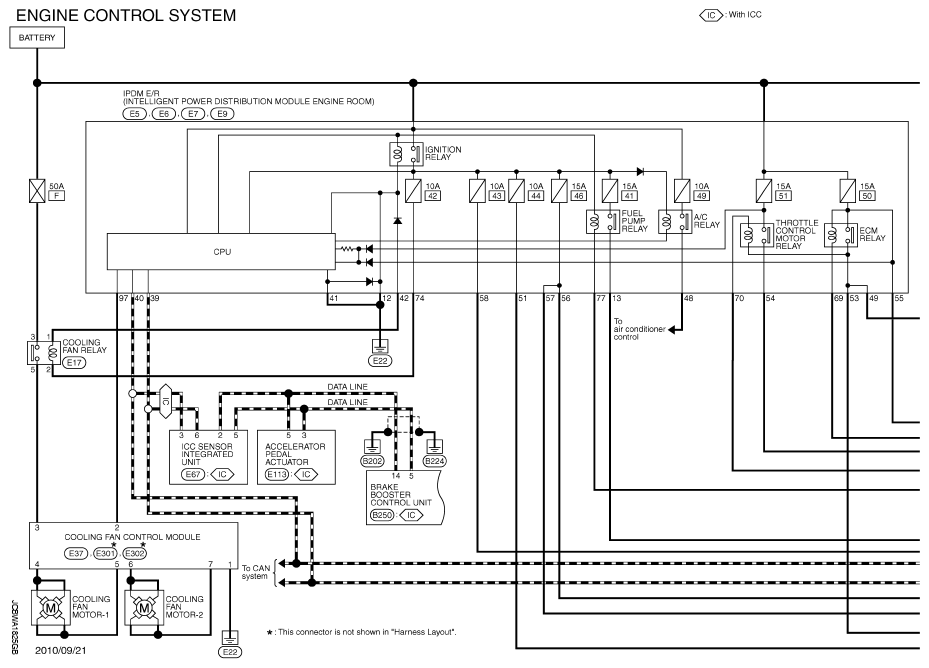

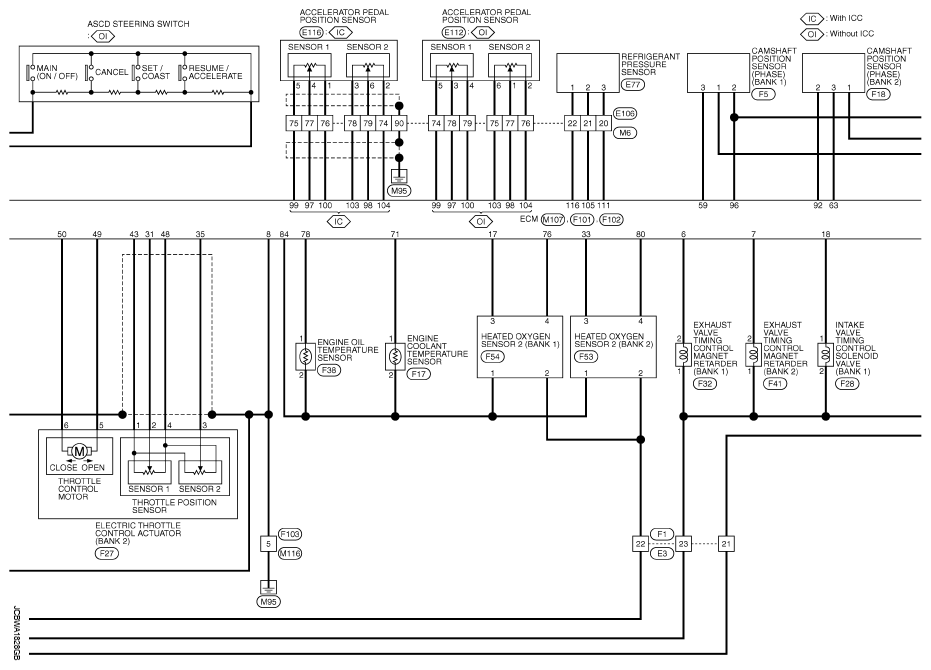

Fig 1: Engine Control System - Wiring Diagram (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

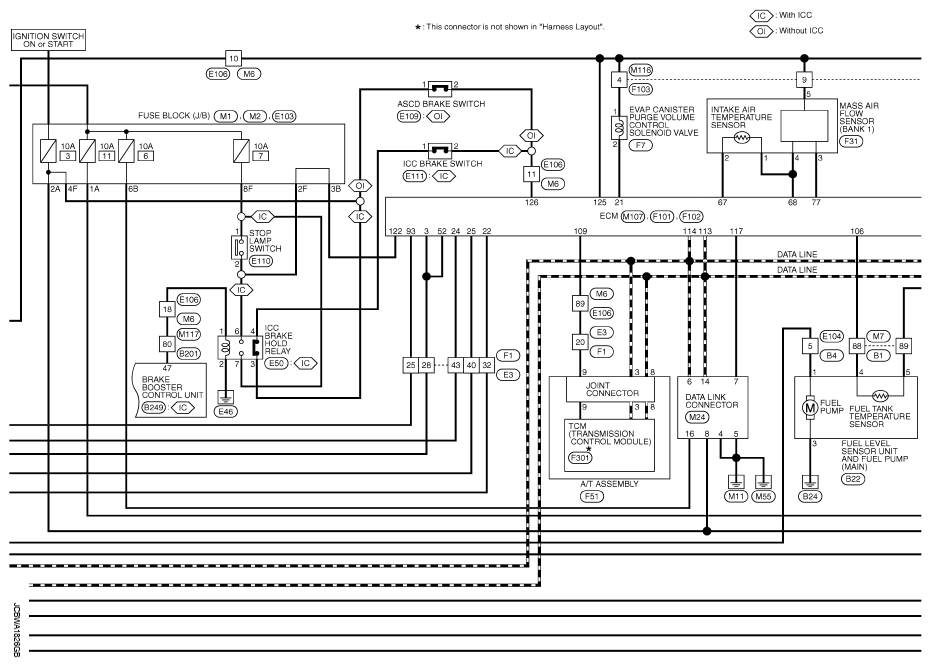

Fig 2: Engine Control System - Wiring Diagram (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

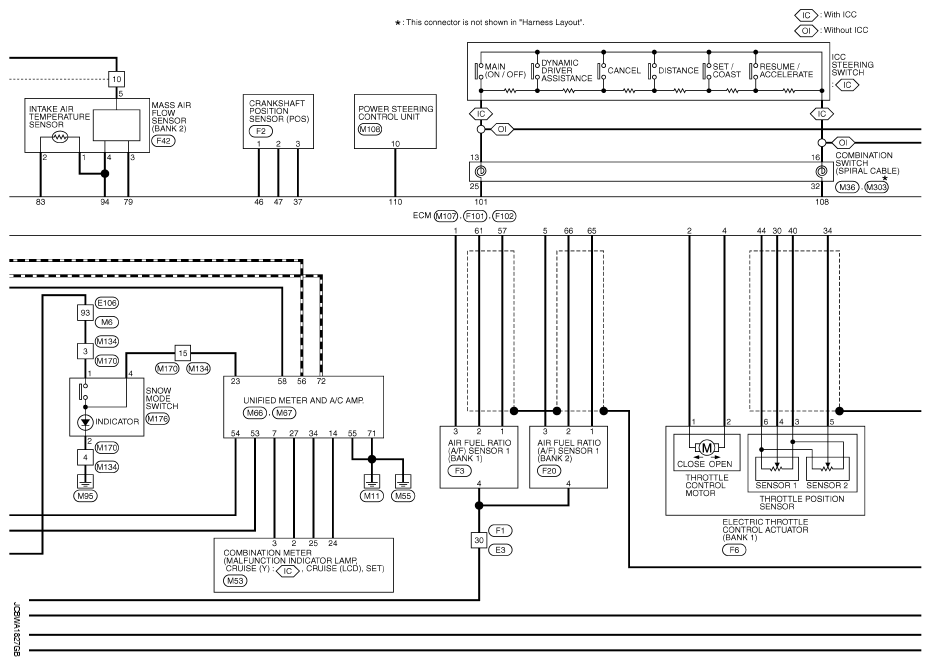

Fig 3: Engine Control System - Wiring Diagram (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Engine Control System - Wiring Diagram (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Engine Control System - Wiring Diagram (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

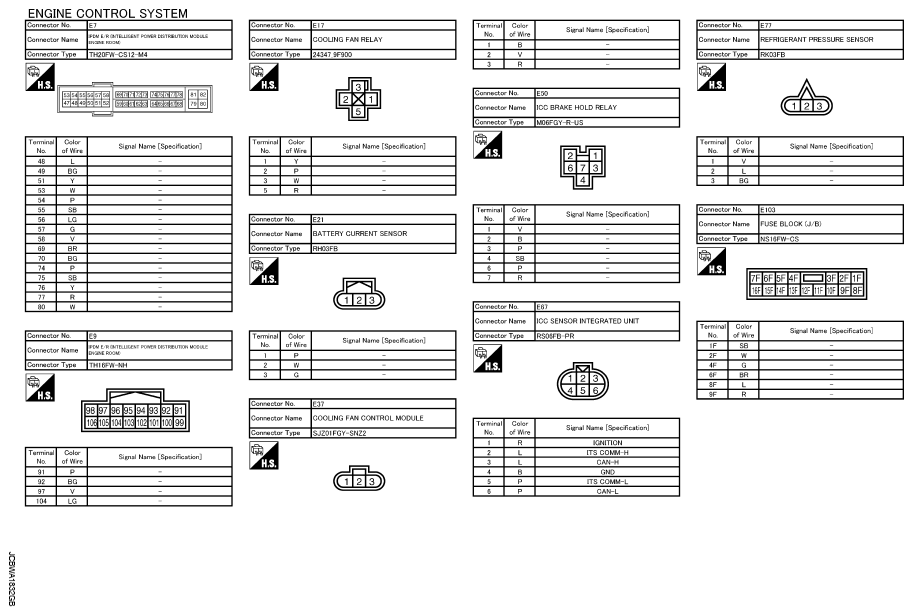

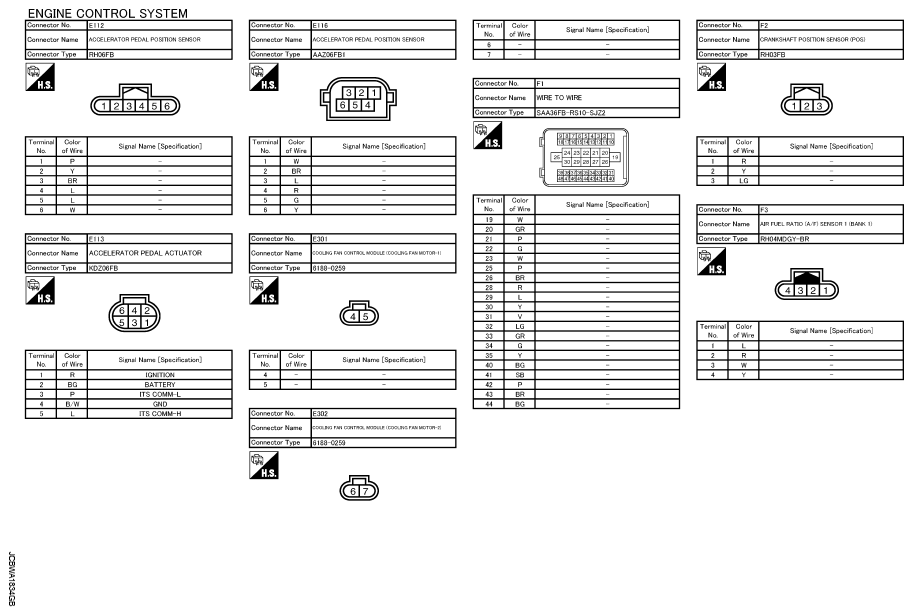

Fig 6: Identifying Engine Control System Connectors (1 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

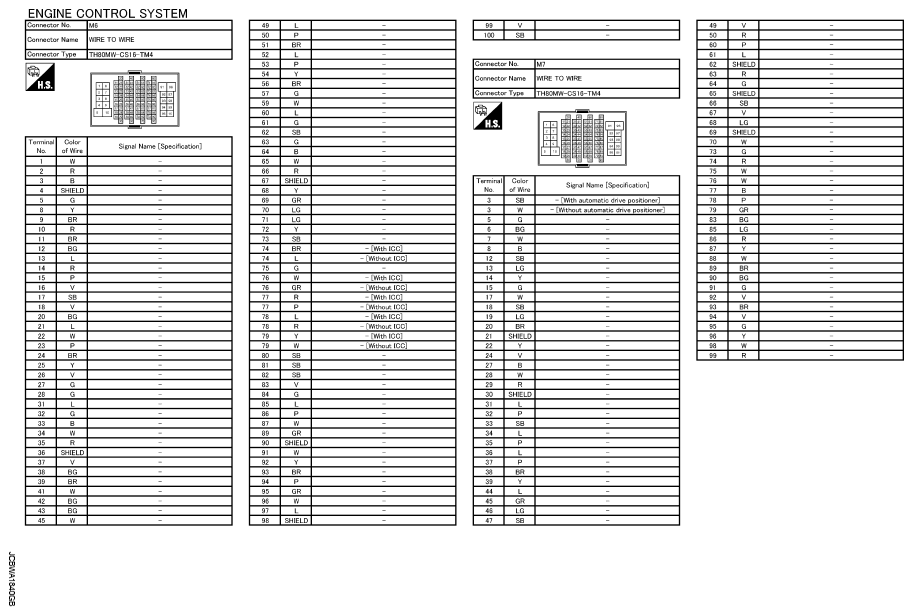

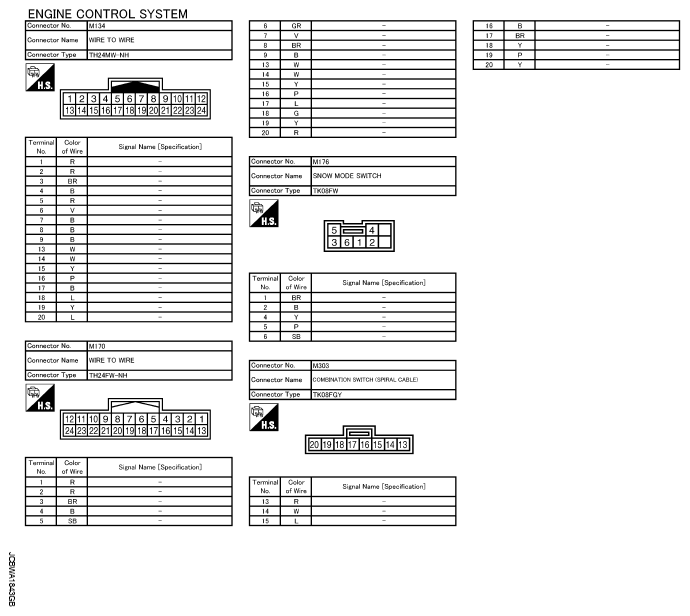

Fig 7: Identifying Engine Control System Connectors (2 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

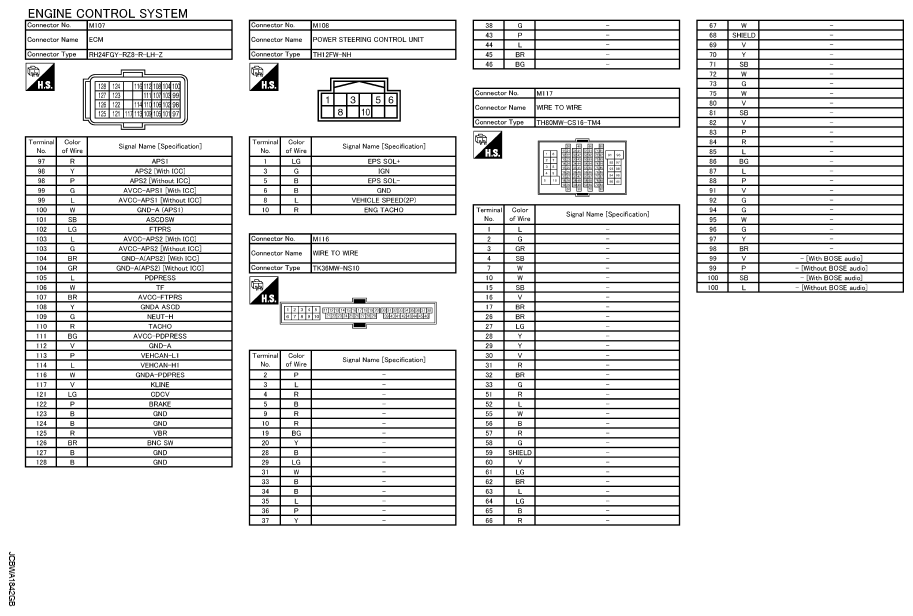

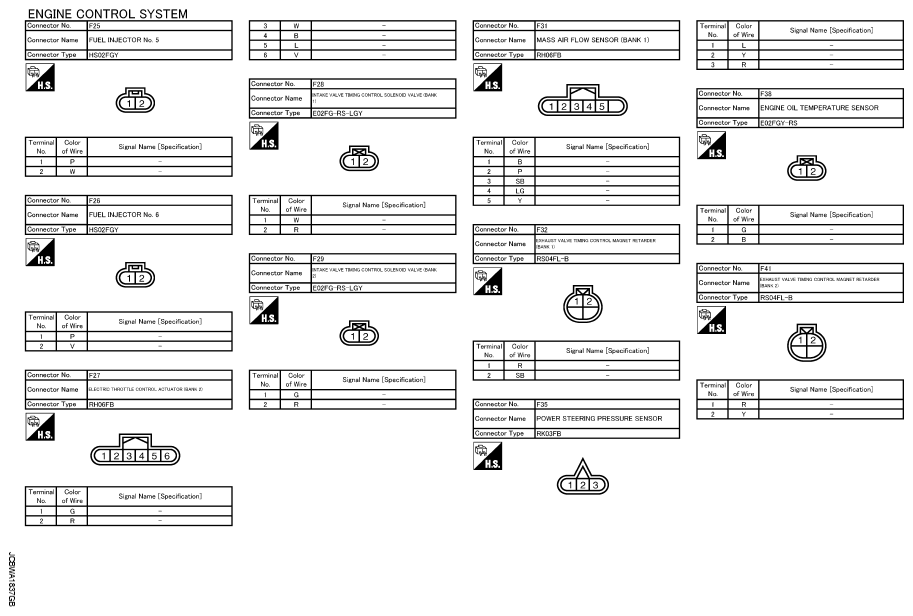

Fig 8: Identifying Engine Control System Connectors (3 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

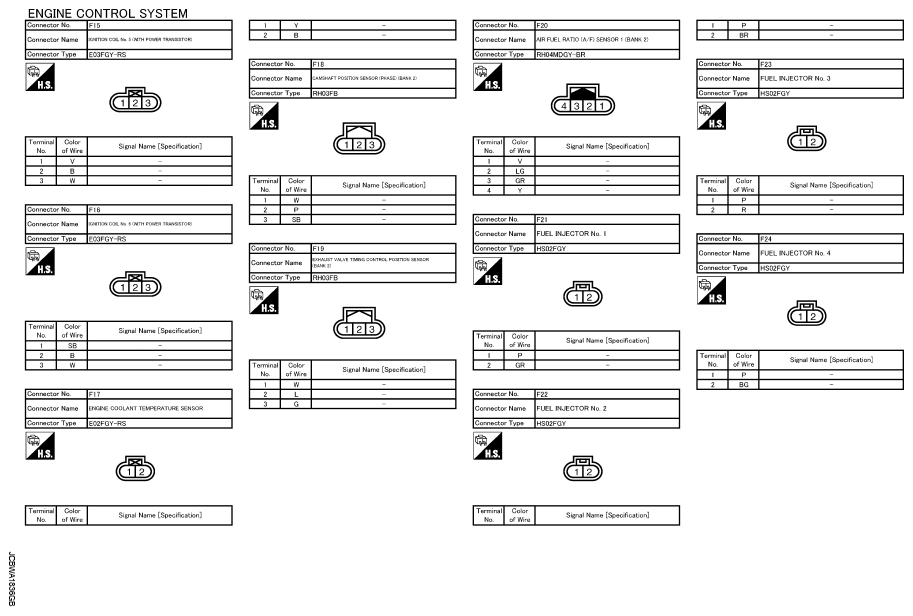

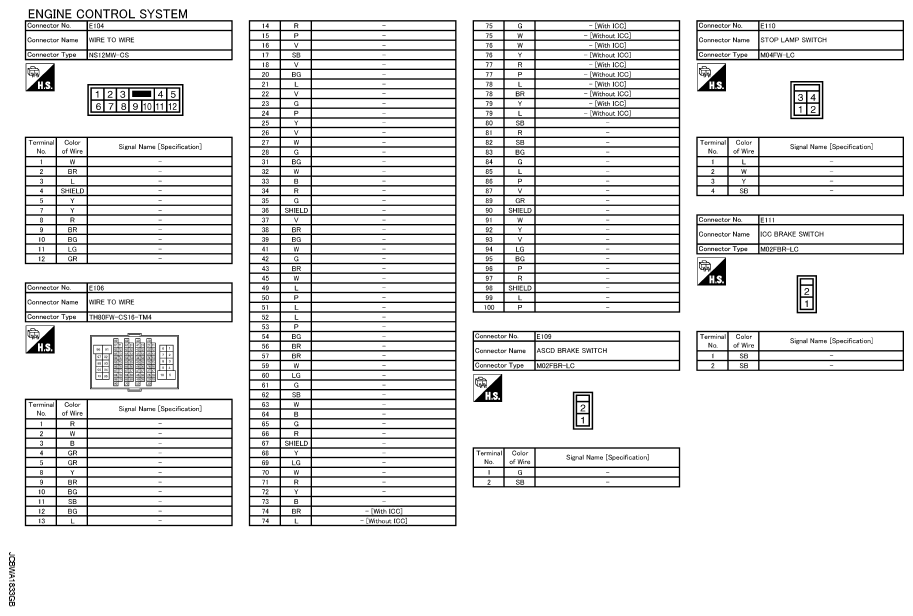

Fig 9: Identifying Engine Control System Connectors (4 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

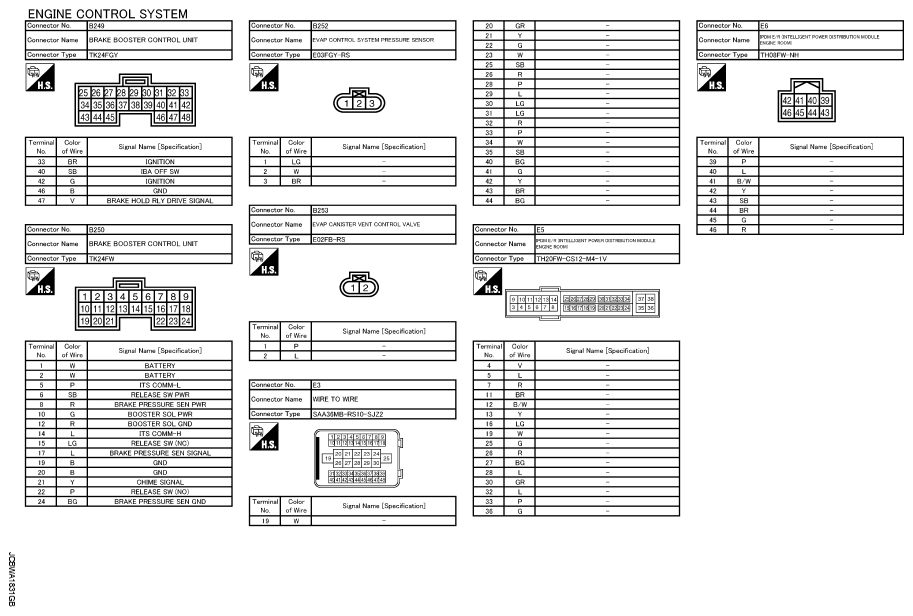

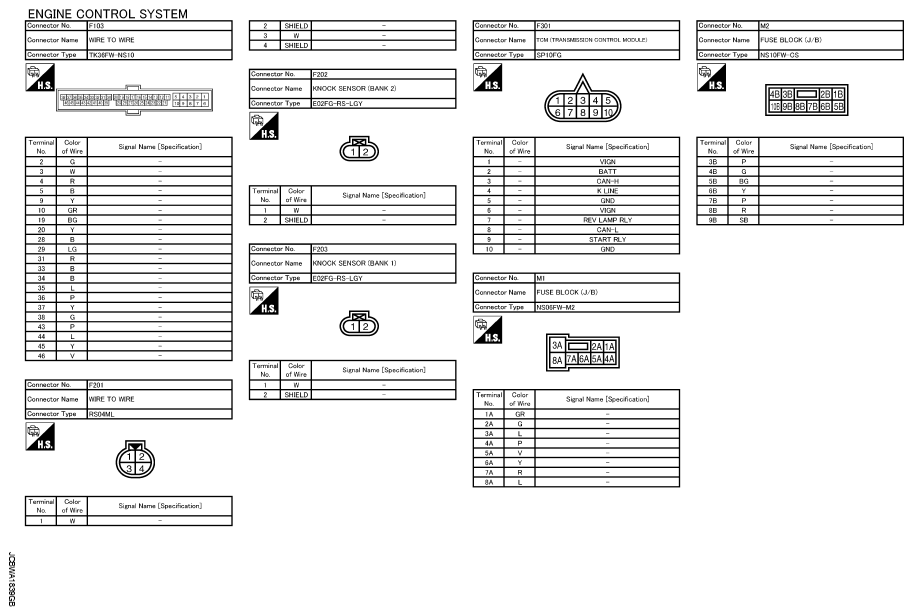

Fig 10: Identifying Engine Control System Connectors (5 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

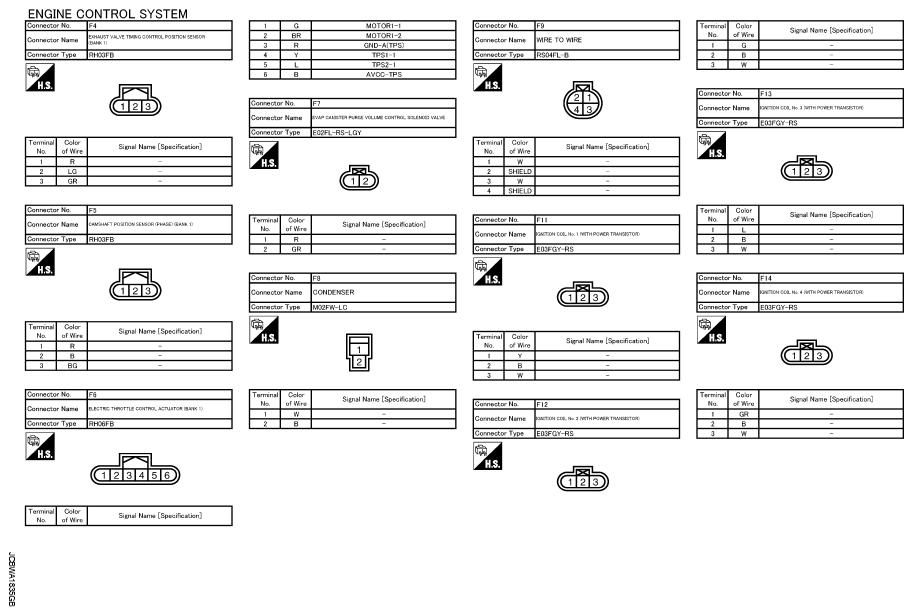

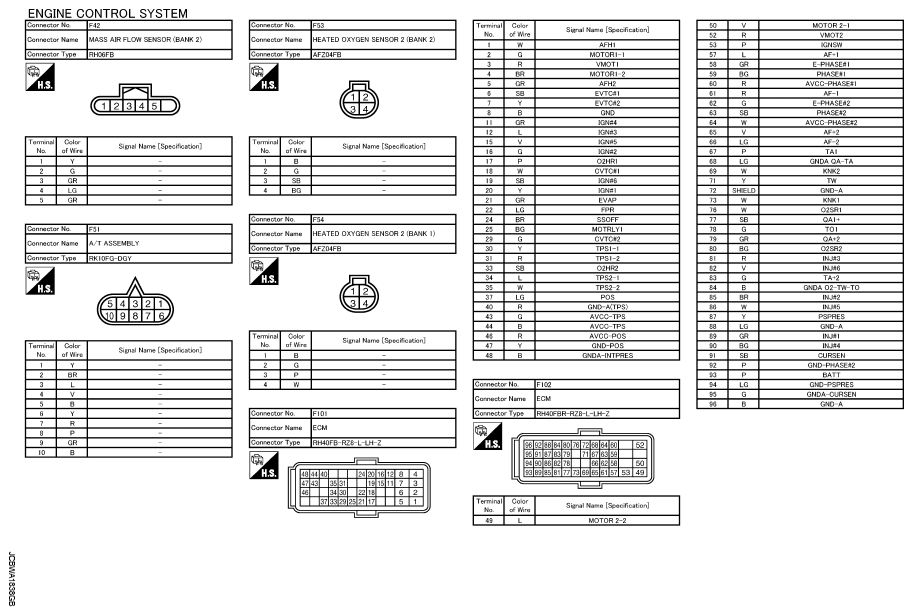

Fig 11: Identifying Engine Control System Connectors (6 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Engine Control System Connectors (7 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Engine Control System Connectors (8 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Control System Connectors (9 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Engine Control System Connectors (10 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Engine Control System Connectors (11 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Engine Control System Connectors (12 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Engine Control System Connectors (13 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Engine Control System Connectors (14 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.
