Wiring Diagram - BCM -

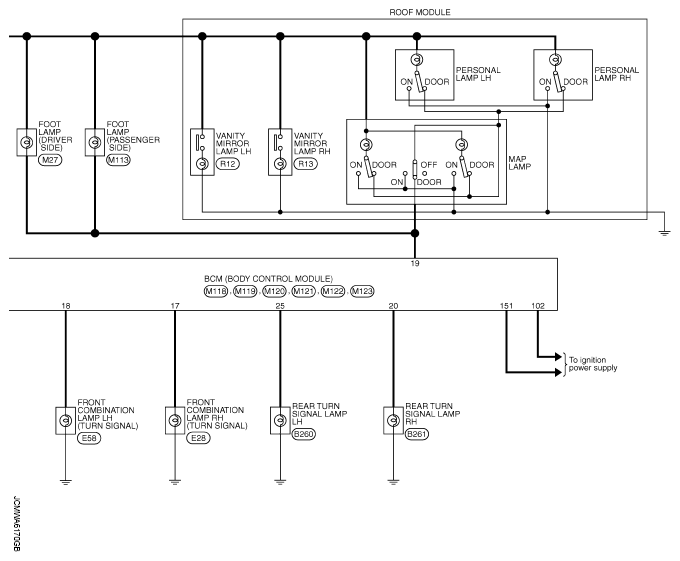

Fig 1: BCM - Wiring Diagram (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

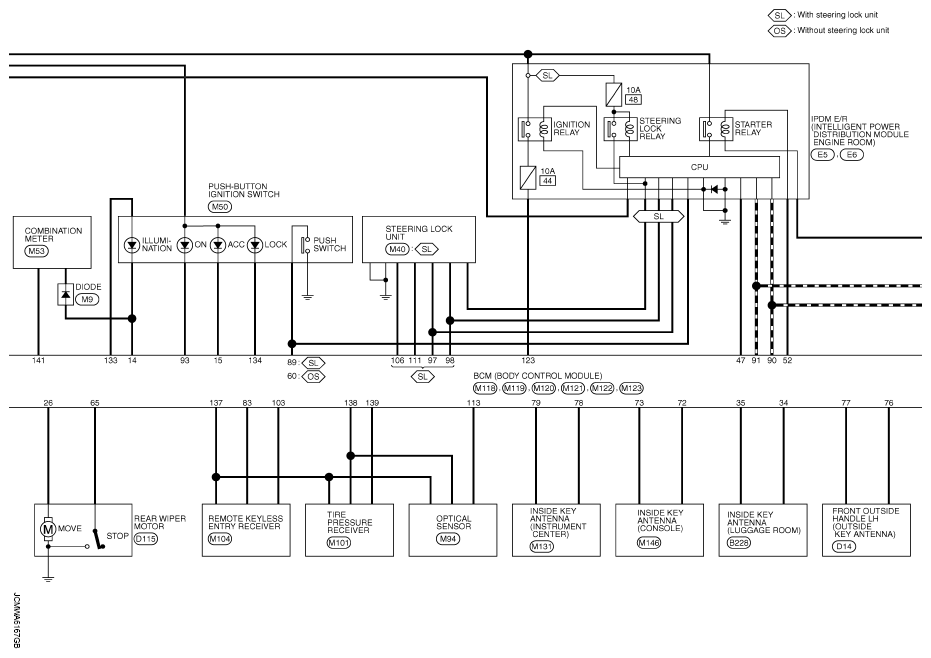

Fig 2: BCM - Wiring Diagram (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

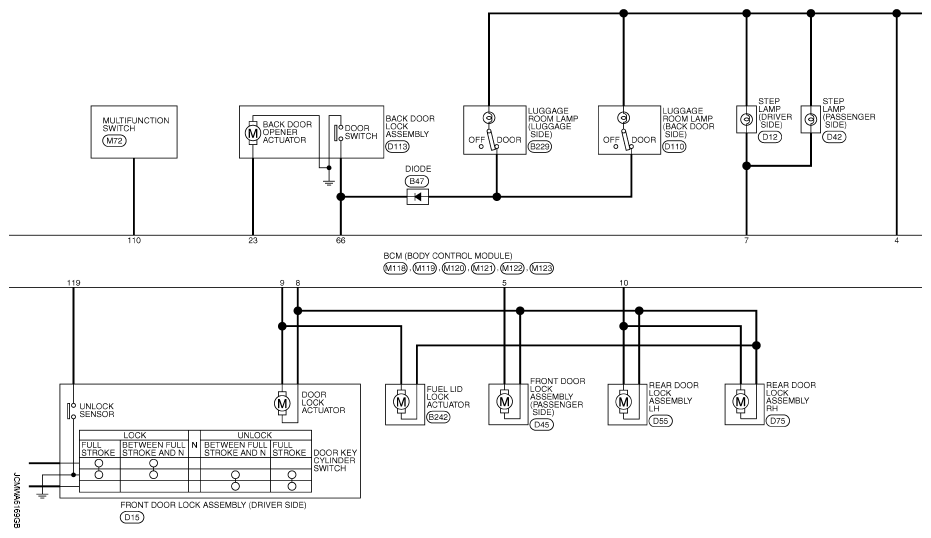

Fig 3: BCM - Wiring Diagram (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

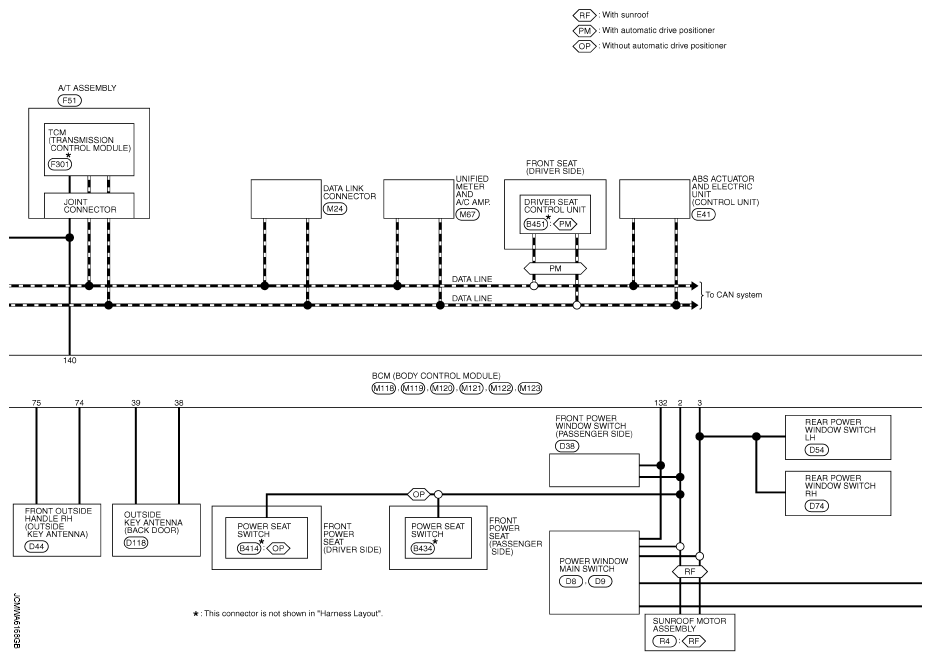

Fig 4: BCM - Wiring Diagram (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: BCM - Wiring Diagram (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

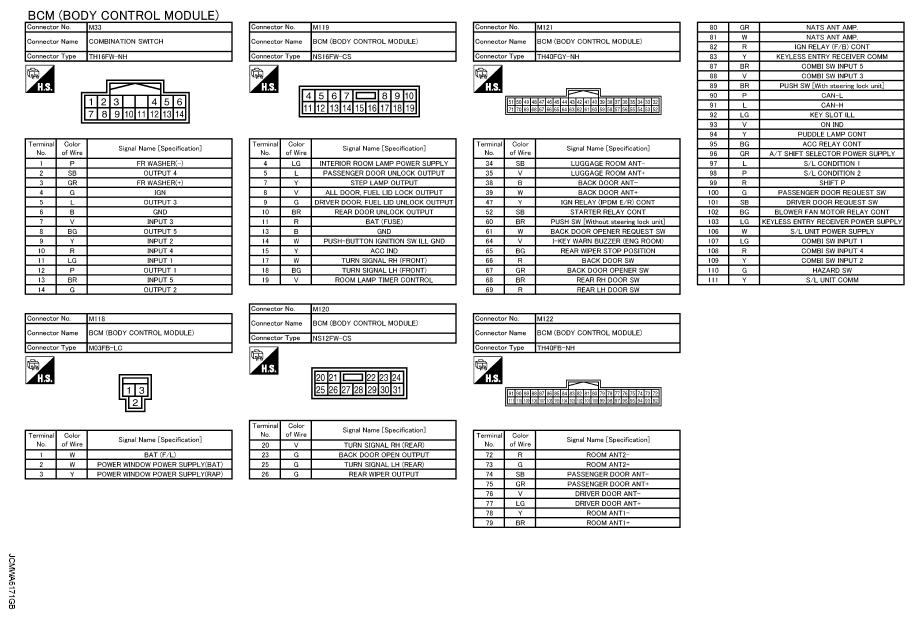

Fig 6: Identifying BCM Connector Terminal Identification (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying BCM Connector Terminal Identification (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
