Diagnosis Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.

   Refer to "GROUND INSPECTION ".

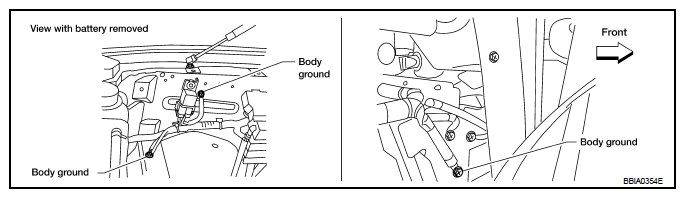

   Fig 1: Identifying Ground Screws On Body

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK: GO TO 2.

   NG: Repair or replace ground connections.

1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
   Fig 2: Identifying Accelerator Pedal Position (APP) Sensor

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between APP sensor terminal 7 and ground with CONSULT-III or tester.

   Voltage: Approximately 5V

   OK or NG

   OK: GO TO  5.

   NG: GO TO 3.

   Fig 3: Checking Voltage Between APP Sensor Terminal 7 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

Check harness for short to power and short to ground, between the following terminals

OK or NG

OK: GO TO 4.

NG: Repair short to ground or short to power in harness or connectors.

Check the following.

• EVAP control system pressure sensor (Refer to "COMPONENT INSPECTION ".)
• Power steering pressure sensor (Refer to "COMPONENT INSPECTION ".)
• Battery current sensor (Refer to "COMPONENT INSPECTION ".)
• Refrigerant pressure sensor

  OK or NG

  OK: GO TO  7.

  NG: Replace malfunctioning components.

Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO  7.

NG: GO TO 6.

1. Replace accelerator pedal position assembly.
2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
3. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
4. Perform "IDLE AIR VOLUME LEARNING ".

   INSPECTION END

Refer to "HOW TO CHECK TERMINAL "and "INTERMITTENT INCIDENT ".

INSPECTION END
