Function Diagnosis
>>
Rear View Monitor System
>>
Component Parts Location
Component Parts Location

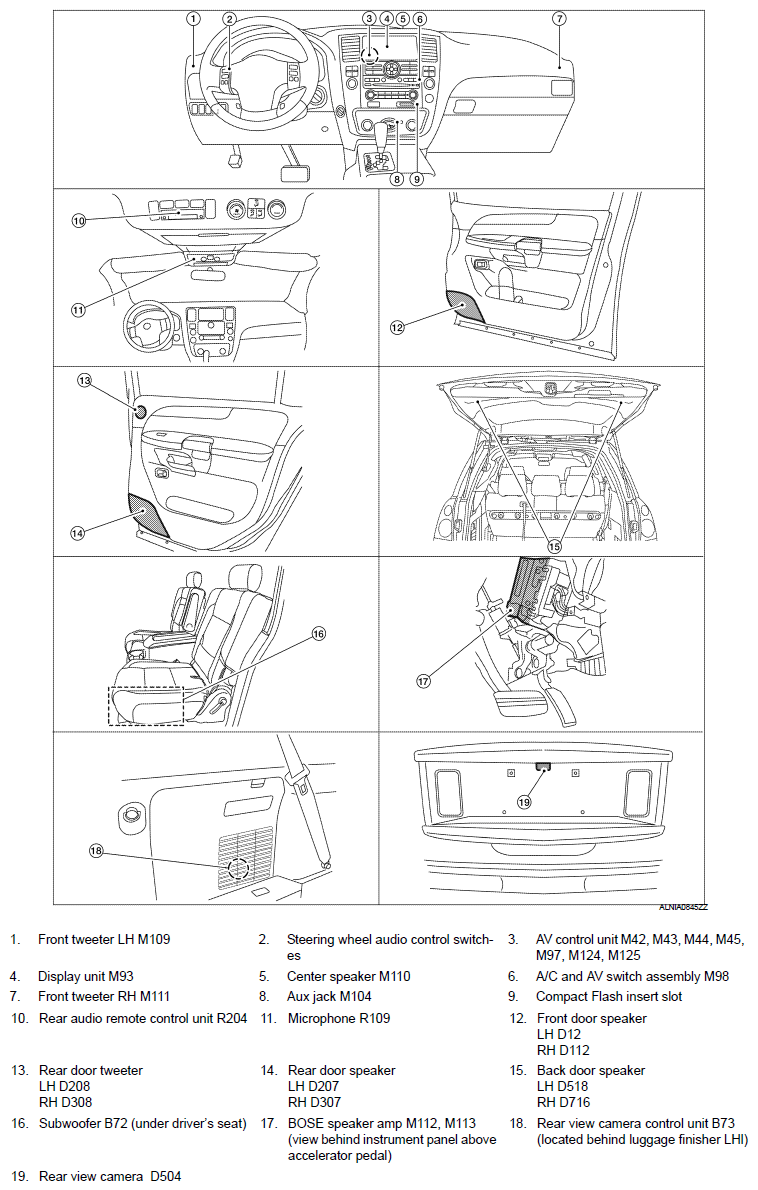

Fig 1: Identifying Rear View Monitor System Component Location
Courtesy of NISSAN MOTOR CO., U.S.A.
