Home
>>
Infiniti
>>
2010
>>
QX56 AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio, Visual, Navigation System
>>
Function Diagnosis
>>
Navigation System
>>
Component Parts Location
Component Parts Location

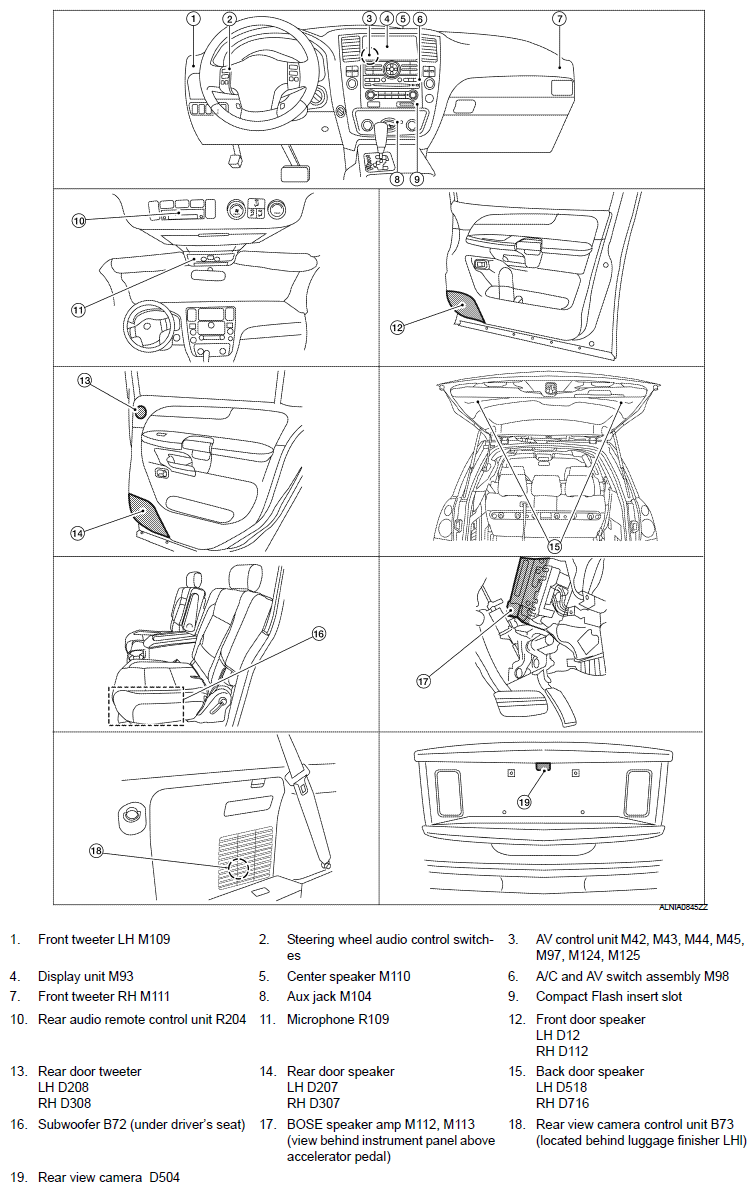

Fig 1: Identifying Navigation System Component Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
