DTC P0117, P0118: ECT Sensor: Wiring Diagram

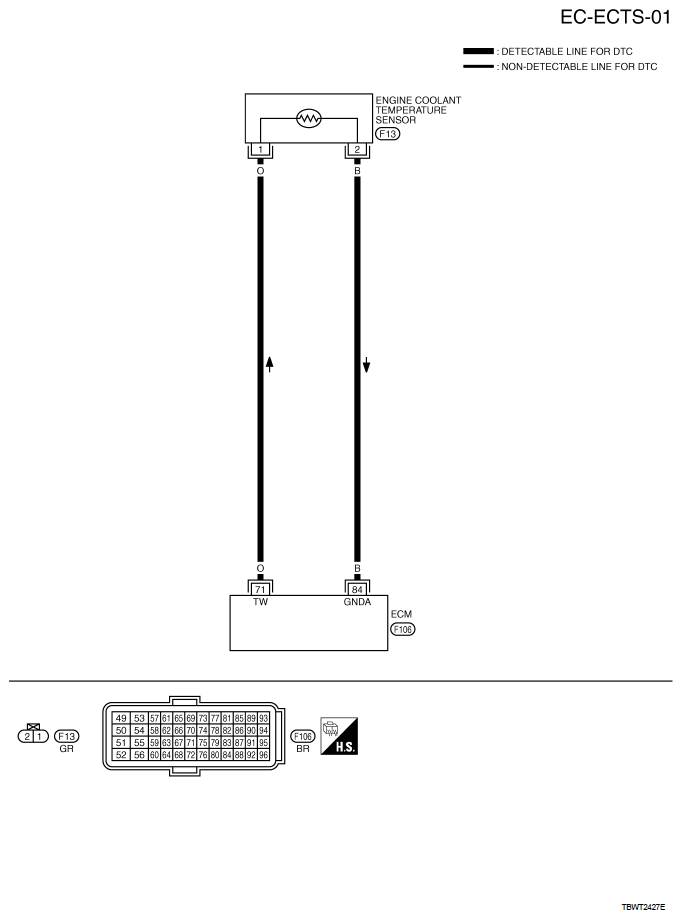

Fig 1: EC-ECTS-01 - Wiring Diagram

G06306503

Courtesy of NISSAN MOTOR CO., U.S.A.
