DTC P0101, P010B: MAF Sensor: Wiring Diagram

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

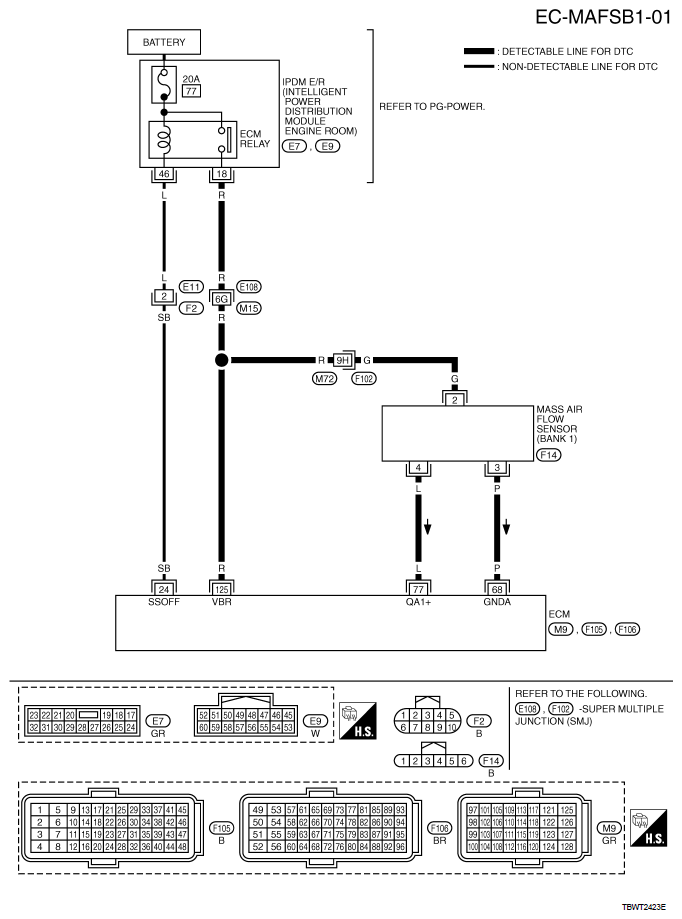

Fig 1: EC-MAFSB1-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

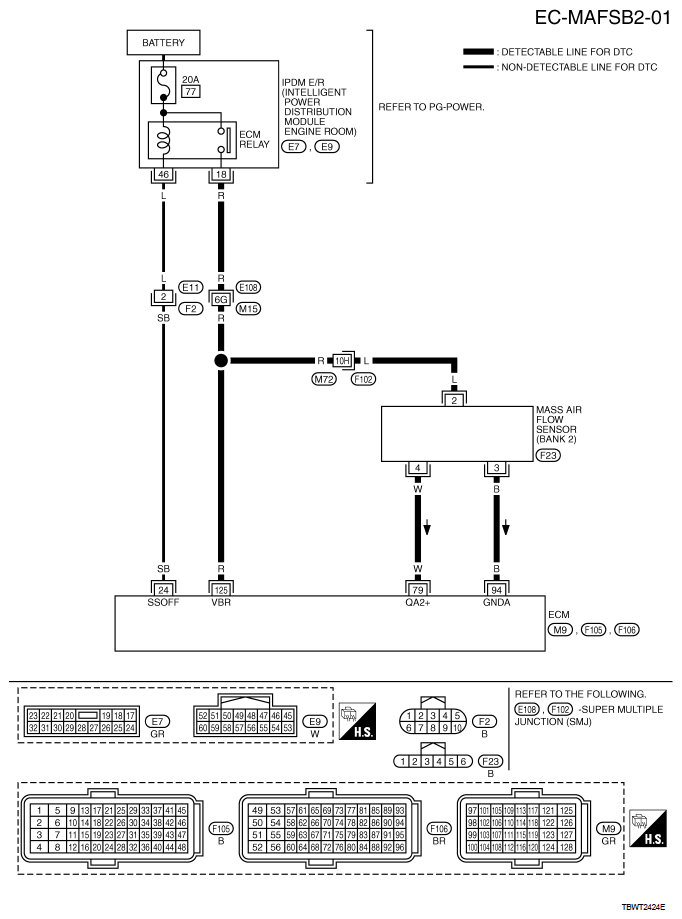

Fig 2: EC-MAFSB2-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
