DTC P1572: ASCD Brake Switch: Wiring Diagram

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

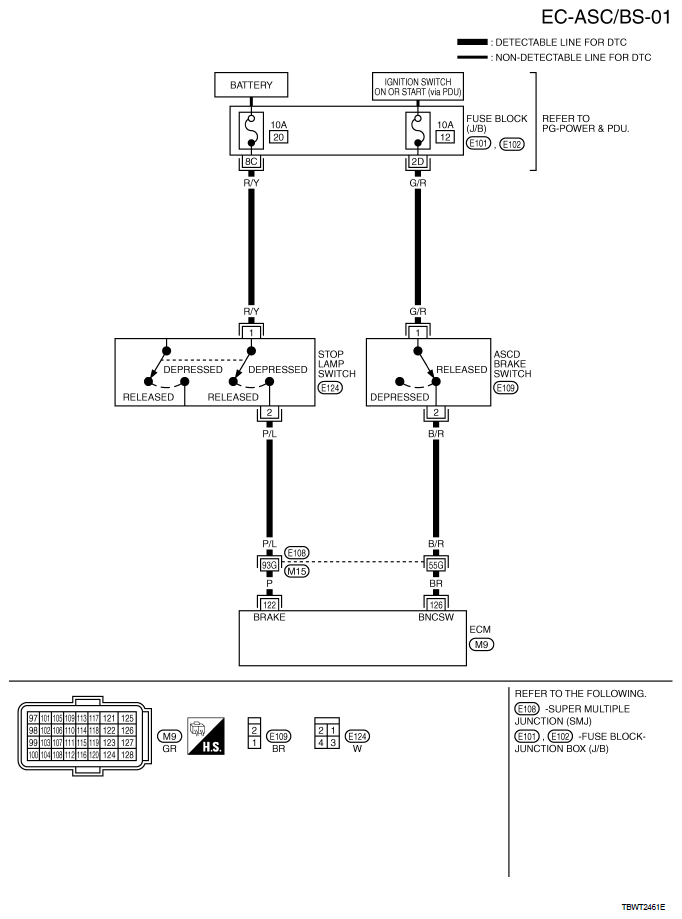

Fig 1: EC-ASC/BS-01 - Wiring Diagram

G06306754

Courtesy of NISSAN MOTOR CO., U.S.A.
