DTC P1564: ASCD Steering Switch: Wiring Diagram

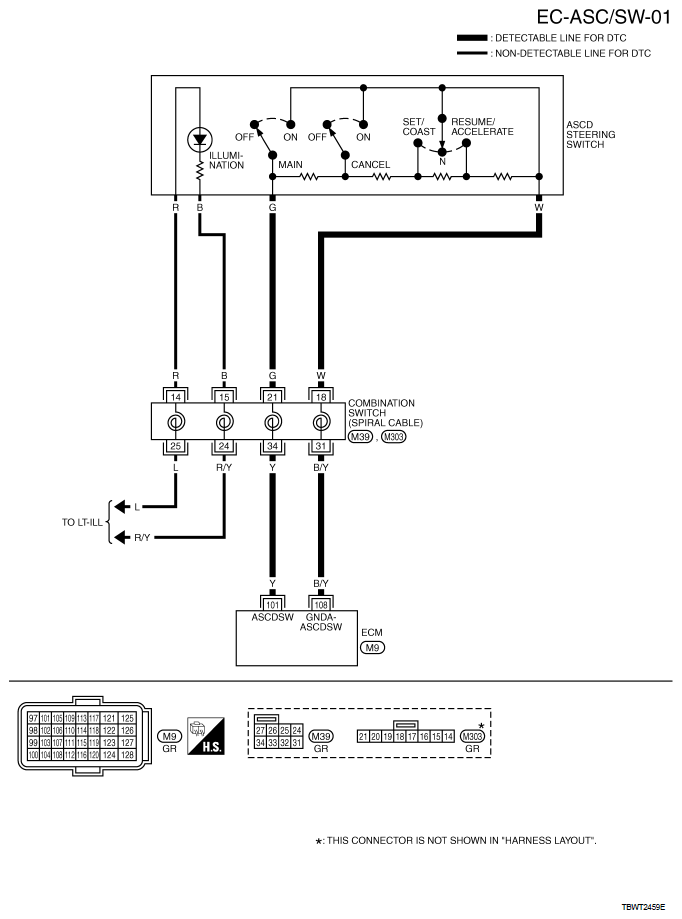

Fig 1: EC-ASC/SW-01 - Wiring Diagram

G06306748

Courtesy of NISSAN MOTOR CO., U.S.A.
