DTC P0643: Sensor Power Supply: Wiring Diagram

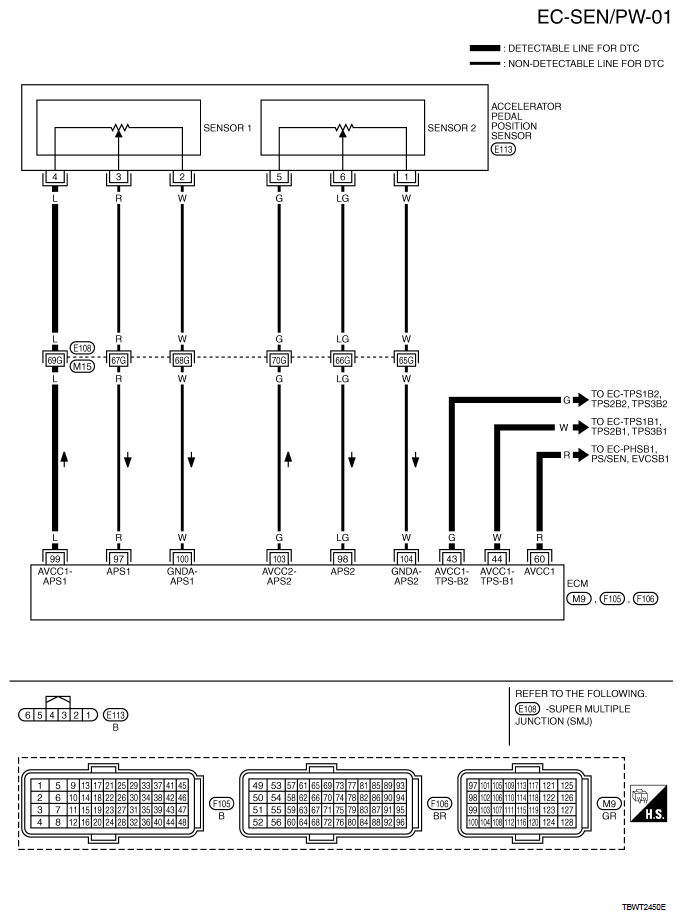

Fig 1: EC-SEN/PW-01 - Wiring Diagram

G06306699

Courtesy of NISSAN MOTOR CO., U.S.A.
