DTC P0197, P0198: EOT Sensor: Wiring Diagram

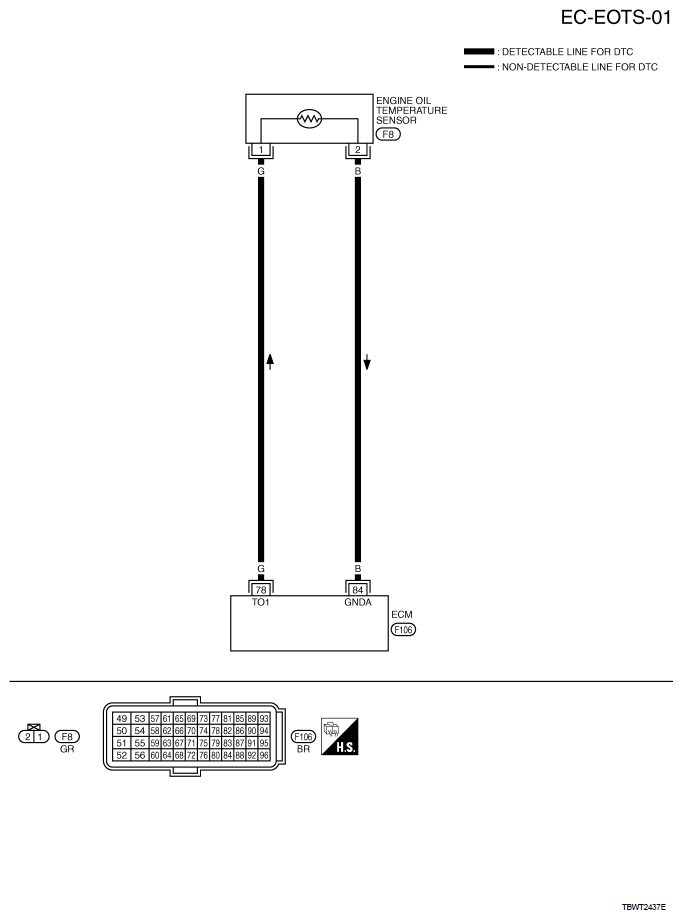

Fig 1: EC-EOTS-01 - Wiring Diagram

G06306595

Courtesy of NISSAN MOTOR CO., U.S.A.
