DTC P0138, P0158: Ho2S2: Wiring Diagram

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

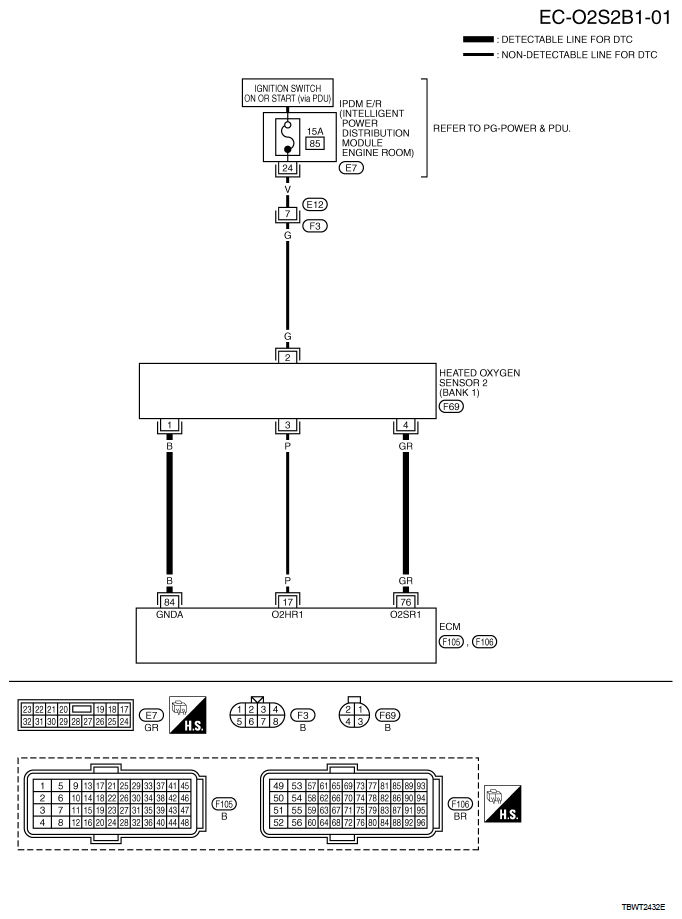

Fig 1: EC-O2S2B1-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: EC-O2S2B2-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
