DTC P0132, P0152: A/F Sensor 1: Wiring Diagram

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

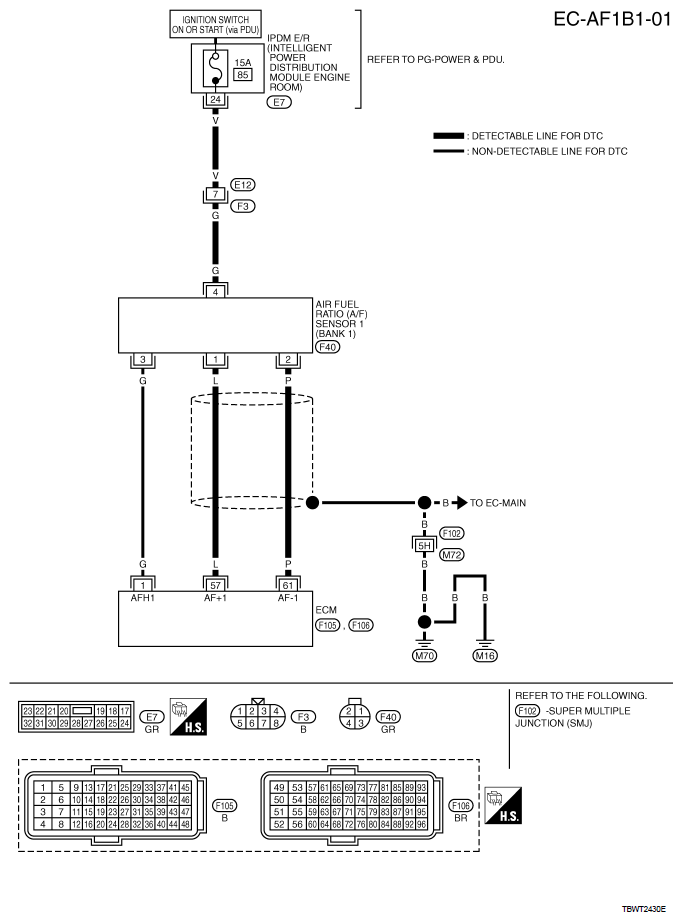

Fig 1: EC-A/F1B1-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: EC-A/F1B2-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
