IGNITION TIMING : Special Repair Requirement

  1. CHECK IGNITION TIMING
    1. Attach timing light to loop wire as shown in illustration.

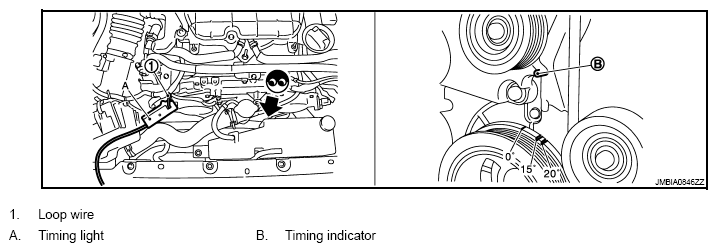

      Fig 1: Checking Ignition Timing
      G06614776Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.

      INSPECTION END
