Exploded View

WARNING: This page is about a different variant/trim than selected.

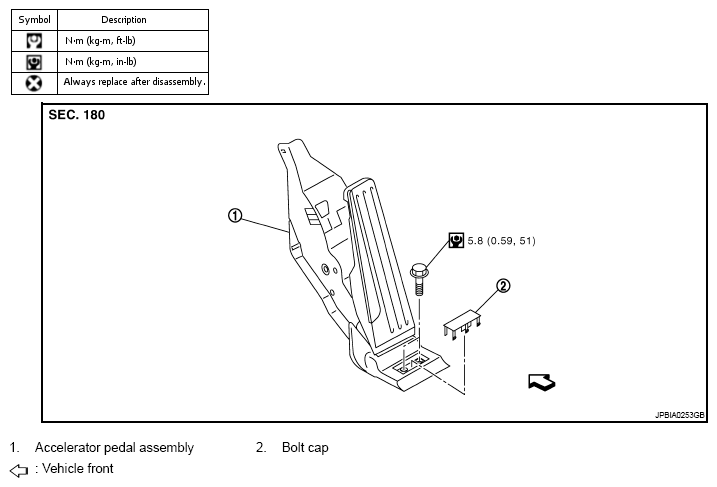

Fig 1: Accelerator Pedal Assembly And Bolt Cap With Torque Specifications
G06639772Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
