Engine Control Component Parts Location

WARNING: This page is about a different car, the 2010 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

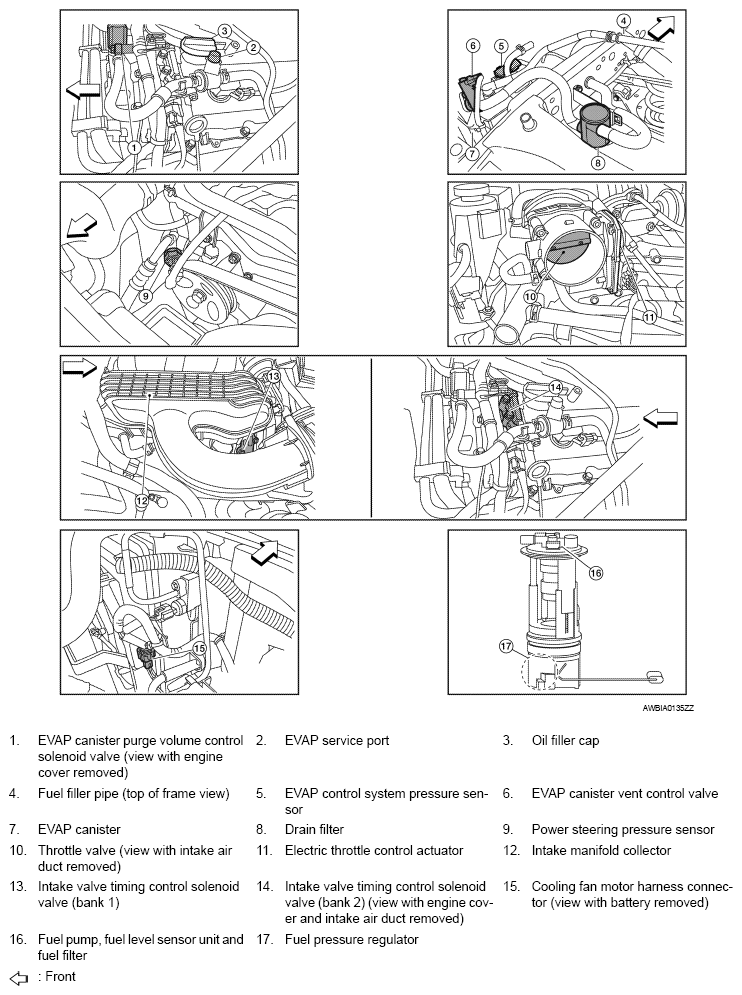

Fig 1: Identifying Engine Control Component Parts Location (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Control Component Parts Location (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Engine Control Component Parts Location (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Engine Control Component Parts Location (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Engine Control Component Parts Location (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Engine Control Component Parts Location (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Engine Control Component Parts Location (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
