Map Lamp Bulb

WARNING: This page is about a different car, the 2011 Nissan Juke. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lens (1).
    • Insert a remover tool (A) into the gap between the lens.
    • Disengage the lens fixing pawls, and then remove the lens.

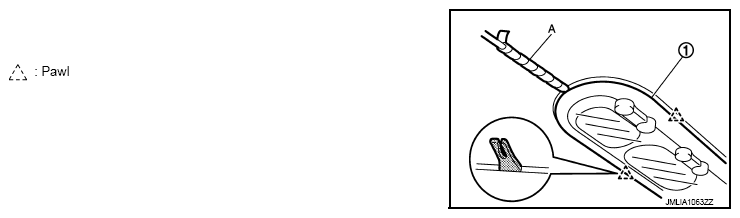

      Fig 1: Inserting Remover Tool Into Gap Between Lens
      G06934675Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION: Use a remover tool wrapped in tape.
  2. Remove the bulb.
