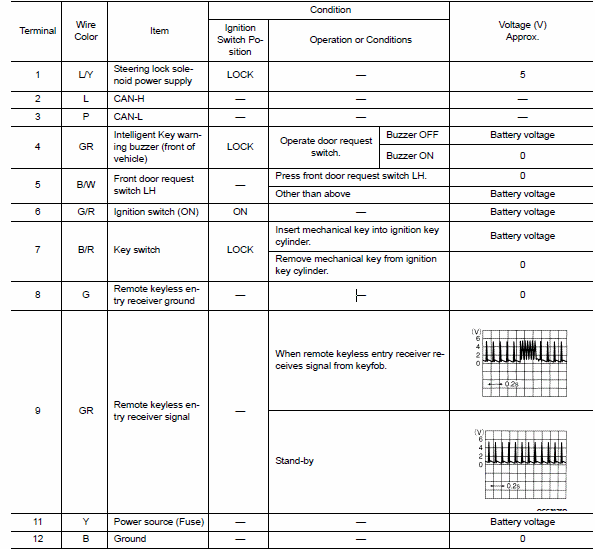

Fig 1: Identifying Terminal Reference Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

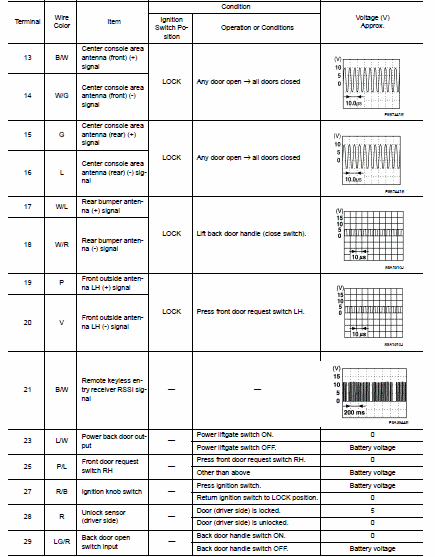

Fig 2: Identifying Terminal Reference Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying Terminal Reference Chart (3 Of 3)
