Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power window main switch finisher (2) from the front door finisher LH. Refer to "REMOVAL AND INSTALLATION ".

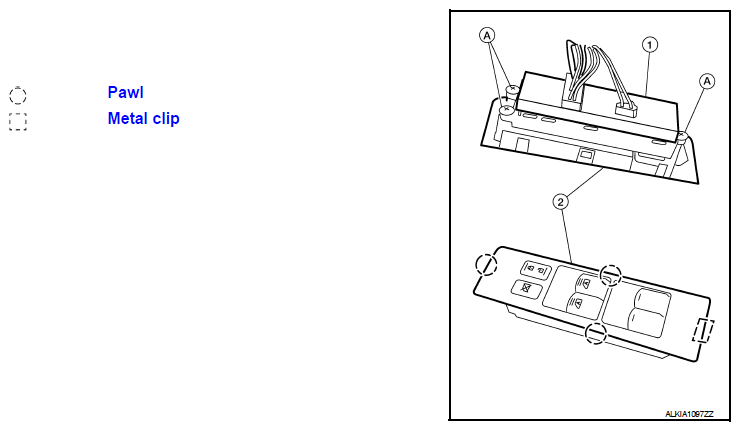

    Fig 1: Identifying Screws, Power Window Main Switch And Finisher
    G06607087Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the three screws (A) from the power window main switch (1), then separate from the finisher (2).
