Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front power window switch finisher (2) from the front door finisher RH. Refer to "REMOVAL AND INSTALLATION ".

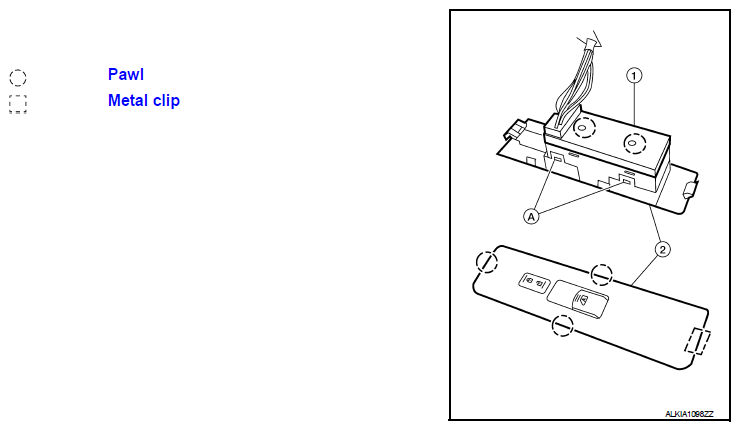

    Fig 1: Identifying Tabs, Front Power Window Switch And Finisher
    G06607088Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Release the four tabs (A), two on each side, then separate the front power window switch (1) from the finisher (2).
