Home >> Infiniti >> 2010 >> G37 Base, 2D Convertible >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control System -- G37 Convertible >> System Description >> Vehicle-To-Vehicle Distance Control Mode Function >> System Diagram

System Diagram

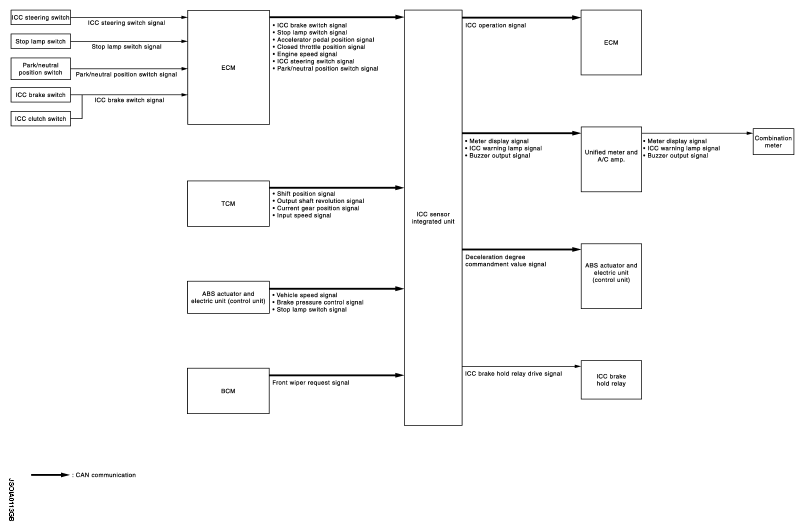

Fig 1: Vehicle-To-Vehicle Distance Control Mode Function System Diagram

G05975560

Courtesy of NISSAN MOTOR CO., U.S.A.
