System Diagram
System Diagram

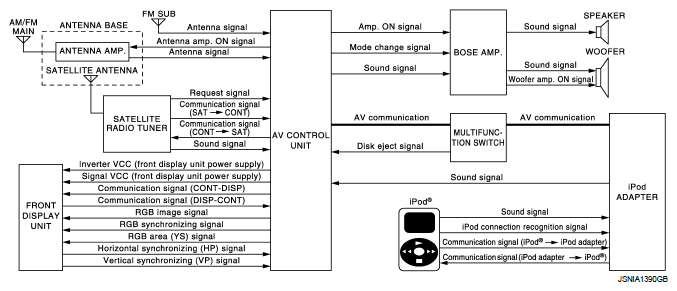

Fig 1: Audio System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
A radio antenna base integrated with radio antenna and satellite radio antenna is adopted.
Fig 2: Radio And Satellite Radio Antenna Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
