Overall Sequence

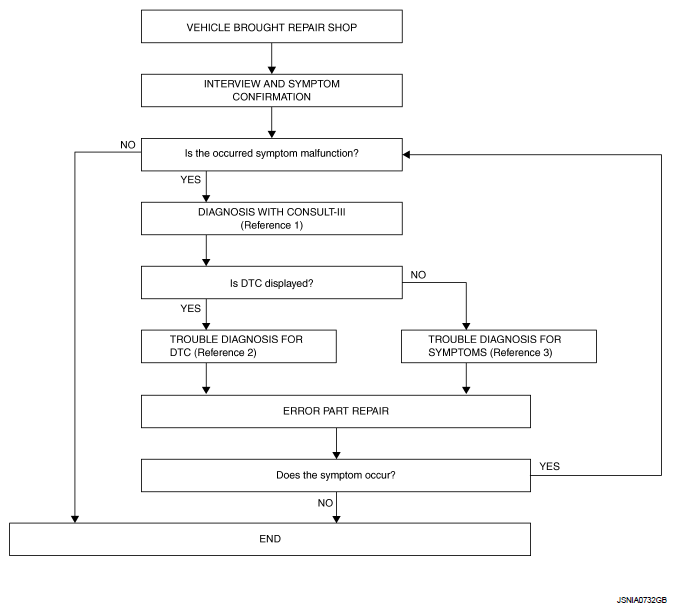

Fig 1: Diagnosis And Repair Work Flow Diagram

G05976509

Courtesy of NISSAN MOTOR CO., U.S.A.

Reference 1... Refer to CONSULT-III FUNCTION (MULTI AV) .
Reference 2... Refer to DTC INDEX .
Reference 3... Refer to SYMPTOM TABLE .
