INTELLIGENT KEY INTERLOCK FUNCTION : Component Parts Location

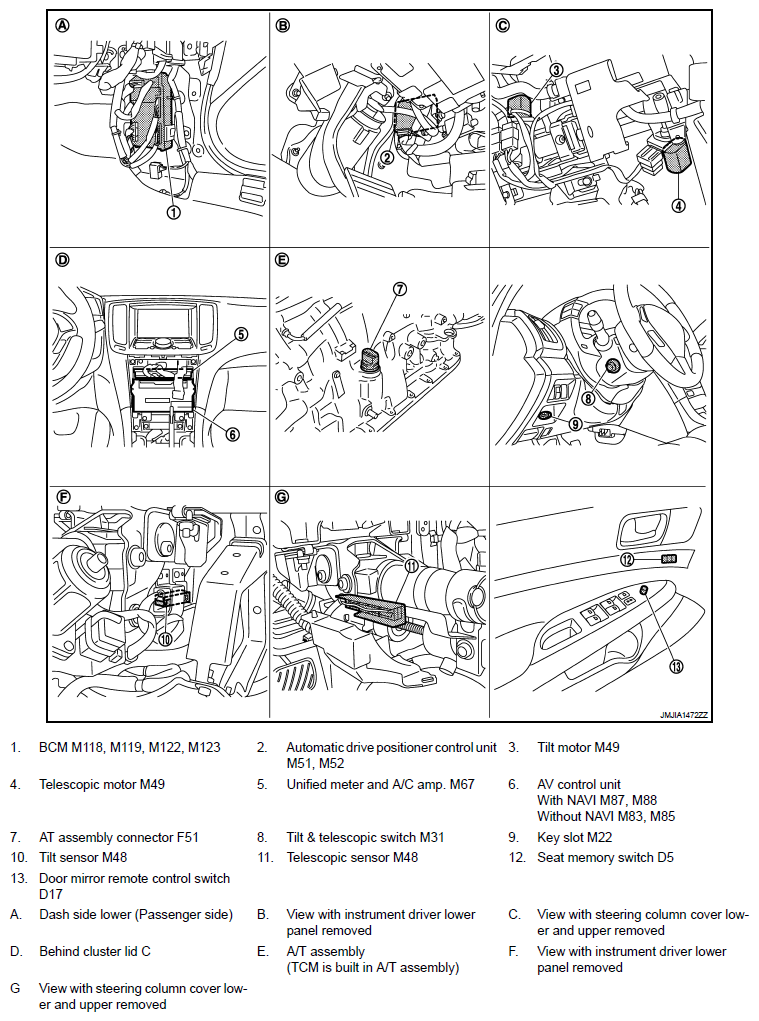

Fig 1: Identifying Intelligent Key Interlock Component Parts Location (1 Of 2)
G06294955Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Intelligent Key Interlock Component Parts Location (2 Of 2)
G06294956Courtesy of NISSAN MOTOR CO., U.S.A.
