Around View Monitor System
>>
Component Parts Location
Component Parts Location

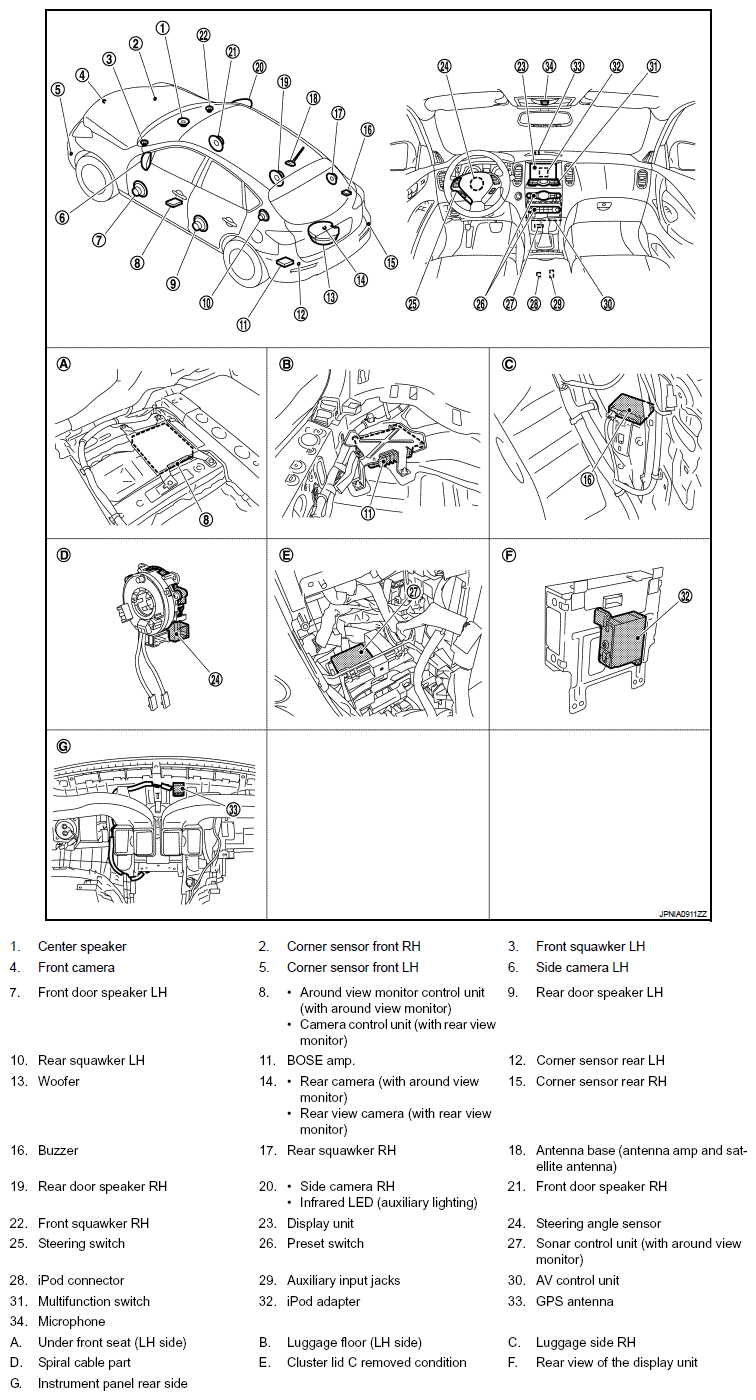

Fig 1: Around View Monitor System Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
