Control Valve And TCM Removal And Installation: Installation

CAUTION: After completing installation, check A/T fluid leakage and fluid level. Refer to "CHECKING THE A/T FLUID (ATF) ".

Connect TCM connector and park/neutral position switch connector.

Fig 1: Identifying TCM Connector And Park/Neutral Position Switch Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T assembly harness connector to control valve with TCM.

Fig 2: Identifying A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect TCM connector.

Fig 3: Identifying TCM Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Install new O-ring in A/T assembly harness connector.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 4: Identifying A/T Assembly Harness Connector And O-Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T fluid temperature sensor 2 to bracket.

Fig 5: Identifying Bracket And A/T Fluid Temperature Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T fluid temperature sensor 2 (with bracket) to control valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to the specified torque. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
CAUTION: Adjust bolt hole of bracket to bolt hole of control valve with TCM.

Fig 6: Identifying A/T Fluid Temperature Sensor 2 And Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Install control valve with TCM in transmission case.
CAUTION:
- Make sure that turbine revolution sensor is securely installed into turbine revolution sensor hole.
- Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
- Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.

  Fig 7: Identifying Turbine Revolution Sensor And Brake Band
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Assemble it so that manual valve cutout is engaged with manual plate projection.

  Fig 8: Identifying Manual Valve And Manual Plate
  Courtesy of NISSAN MOTOR CO., U.S.A.

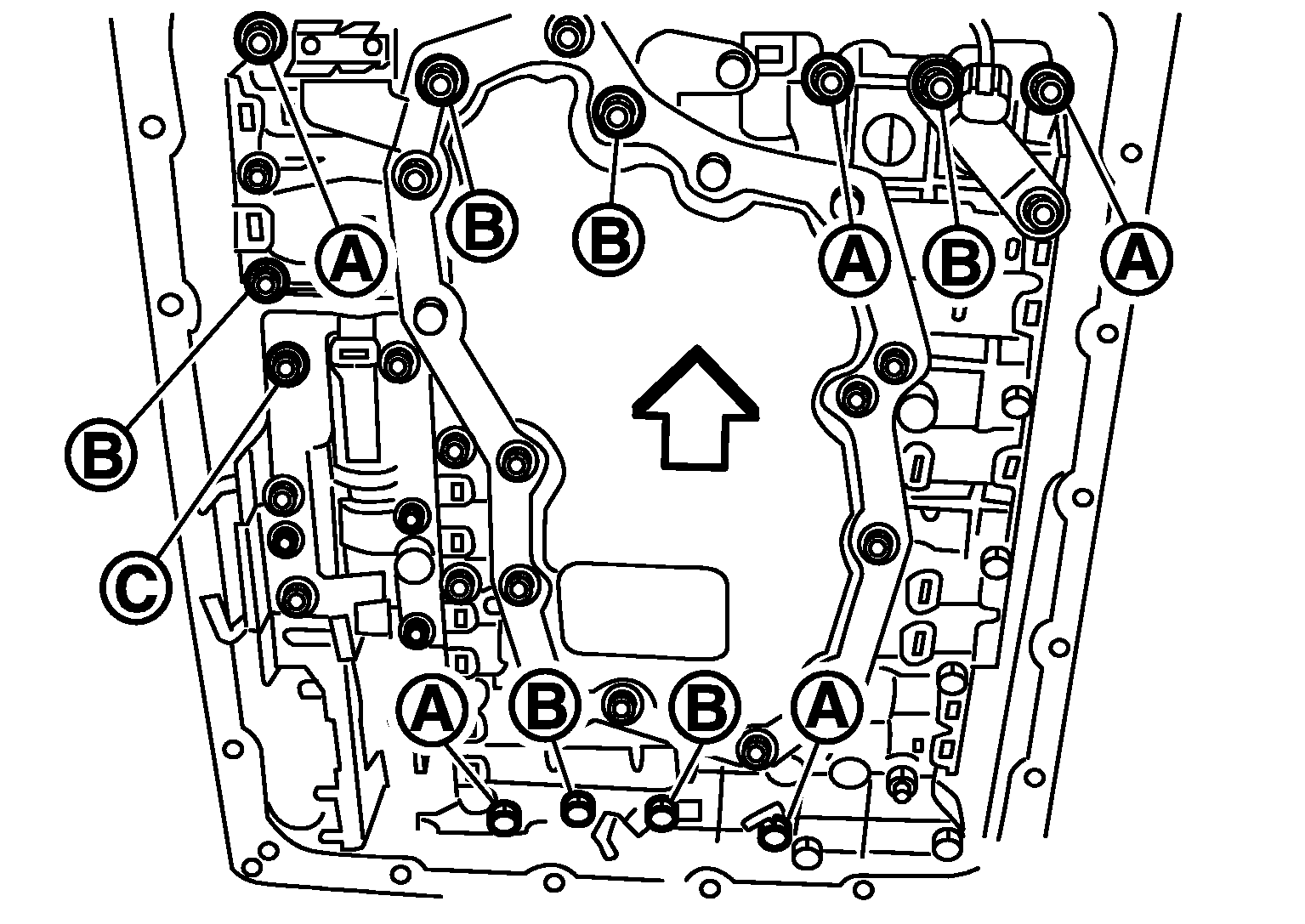

Install bolts (A), (B) and (C) in control valve with TCM.

<==: Front

BOLTS SPECIFICATION

Bolt symbol	Length mm (in)	Number of bolts
A	42 (1.65)	5
B	55 (2.17)	6
C	40 (1.57)	1

Fig 9: Identifying Bolts For Control Valve With TCM

Courtesy of NISSAN MOTOR CO., U.S.A.

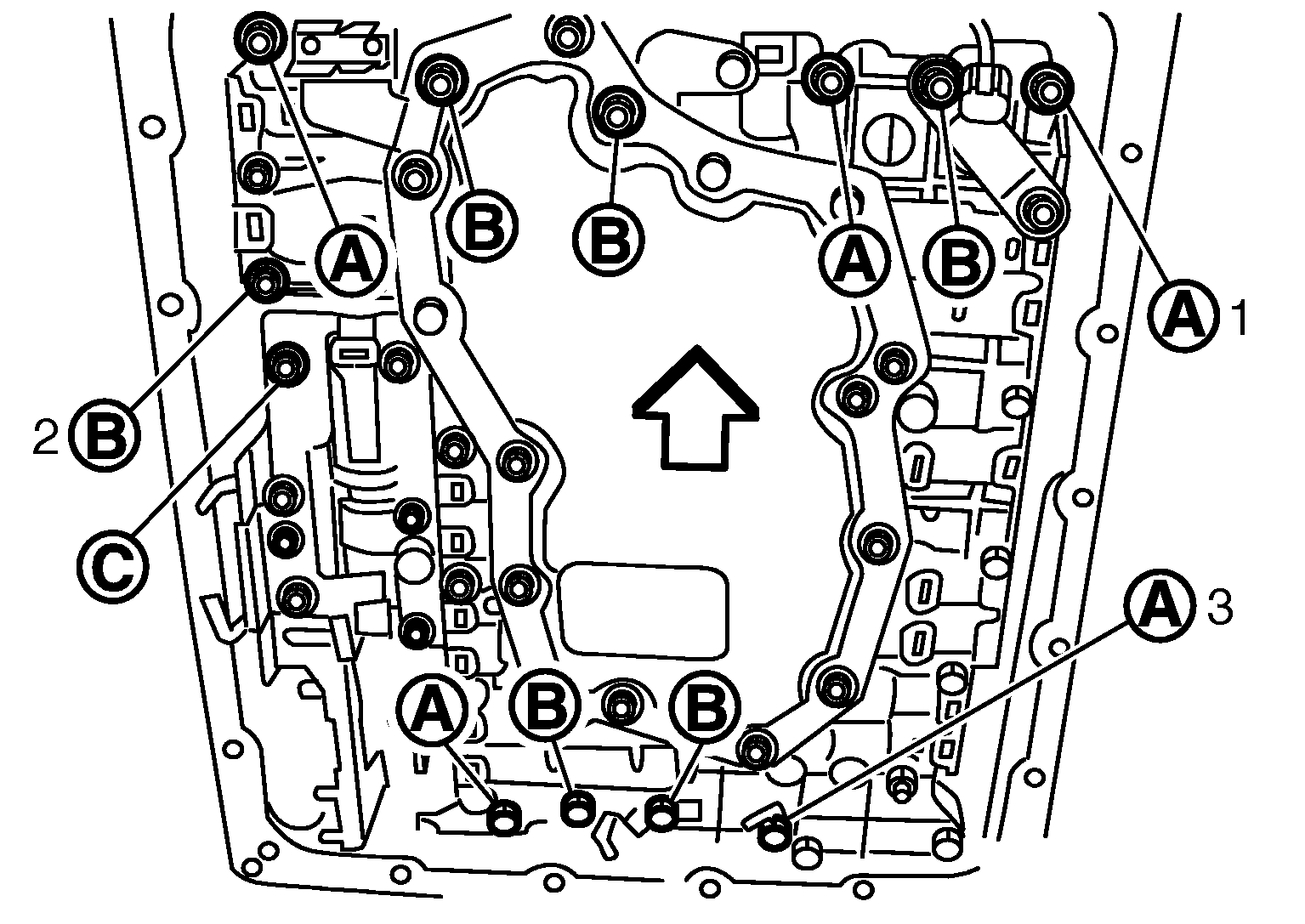

Tighten bolt (1), (2) and (3) temporarily to prevent dislocation. After that tighten them in order (1 → 2 → 3). Then tighten other bolts.
- <==: Front

Tighten control valve with TCM bolts to the specified torque.

BOLTS SPECIFICATION

Bolt symbol	A	B	C
Number of bolts	5	6	1
Length mm (in)	42 (1.65)	55 (2.17)	40 (1.57)
Tightening torque N.m (km-g, in-lb)	7.9 (0.81, 70)		With ATF applied
Tightening torque N.m (km-g, in-lb)	7.9 (0.81, 70)		7.9 (0.81, 70)

Fig 10: Identifying TCM Mounting Bolts Tightening Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

Connect A/T fluid temperature sensor 2 connector (A).
Securely fasten terminal cord assembly and A/T fluid temperature sensor 2 harness with terminal clips
- <==: Terminal clip

  Fig 11: Identifying A/T Fluid Temperature Sensor Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
Connect revolution sensor connector.

Fig 12: Identifying Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Securely fasten revolution sensor harness with terminal clip.

Fig 13: Identifying Revolution Sensor Harness And Terminal Clip
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pan to transmission case. Refer to "OIL PAN ".
Pull up A/T assembly harness connector.
CAUTION: Do not damage connector.

Fig 14: Identifying A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to A/T assembly harness connector.
Connect A/T assembly harness connector.
Connect the negative battery terminal.
Refill the A/T with fluid and check the fluid level and for fluid leakage. Refer to "CHECKING THE A/T FLUID (ATF) ".

Fig 15: Identifying A/T Assembly Harness Connector And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
