IPDM E/R (Intelligent Power Distribution Module Engine Room): Wiring Diagram

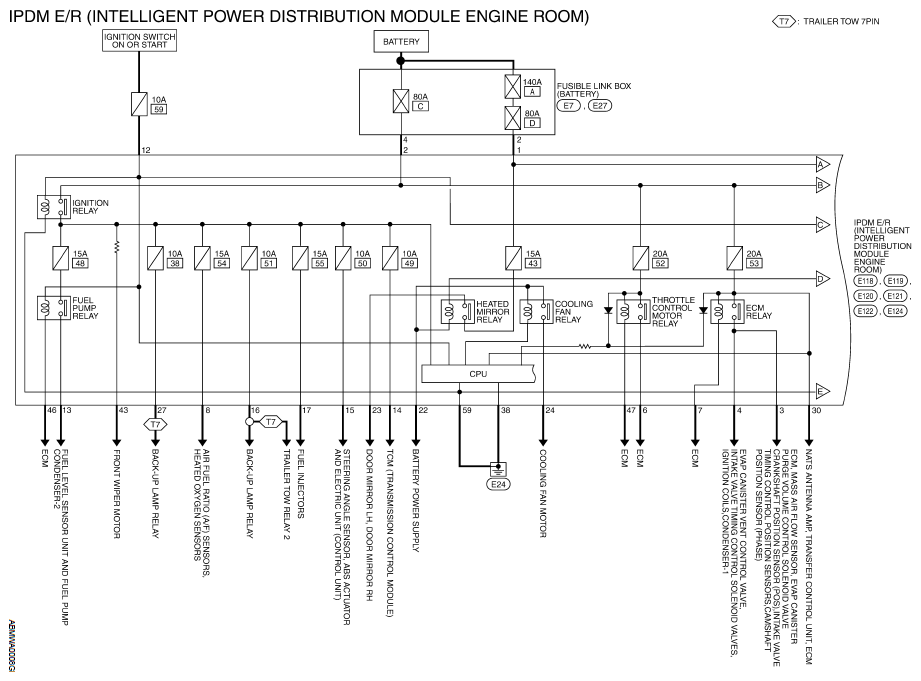

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

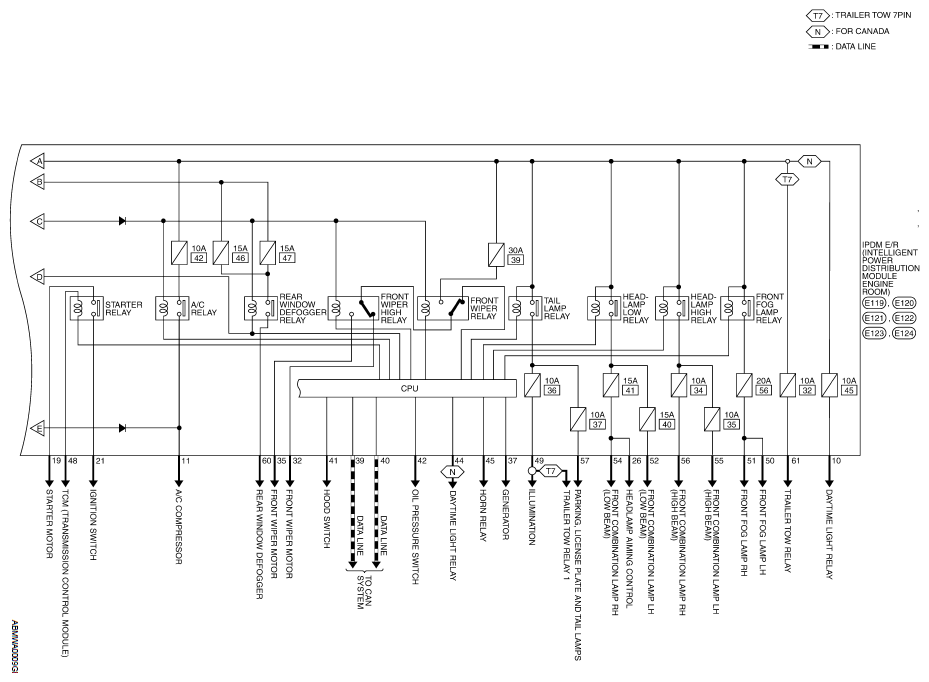

Fig 2: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

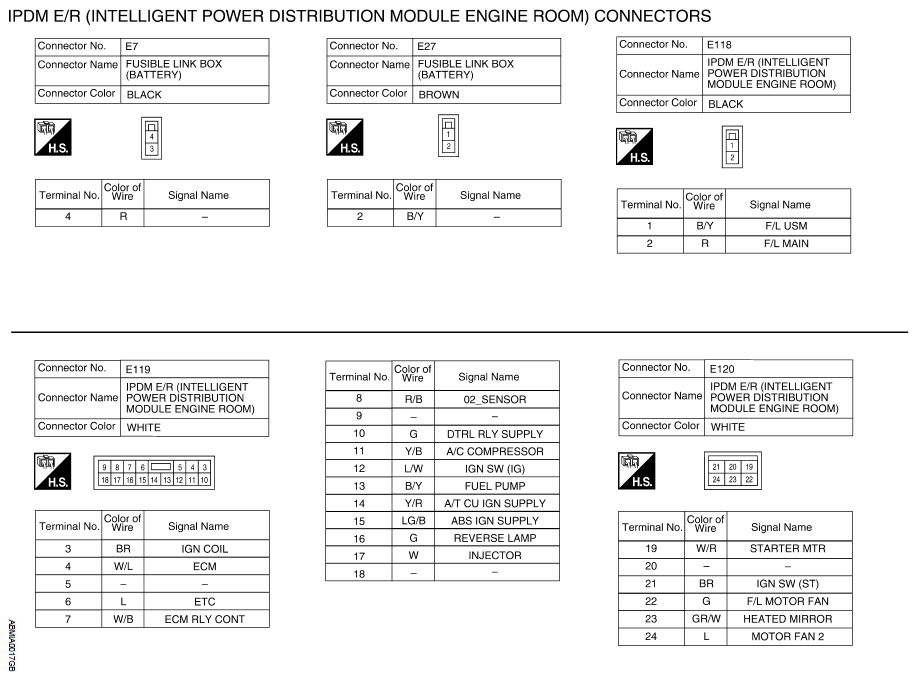

Fig 3: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connectors (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

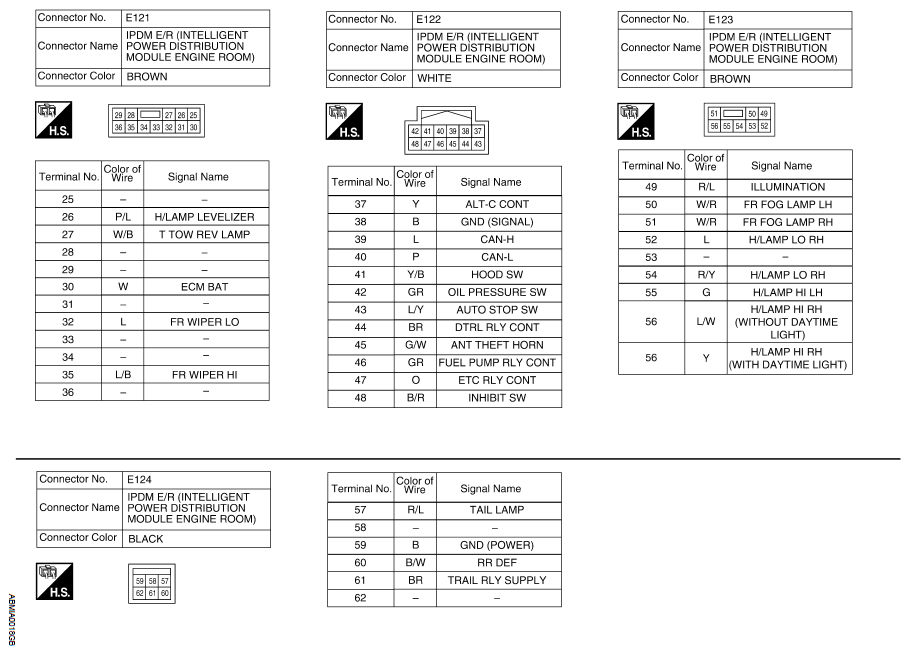

Fig 4: IPDM E/R (Intelligent Power Distribution Module Engine Room) Connectors (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
