Wiring Diagram - COMPAS -

WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

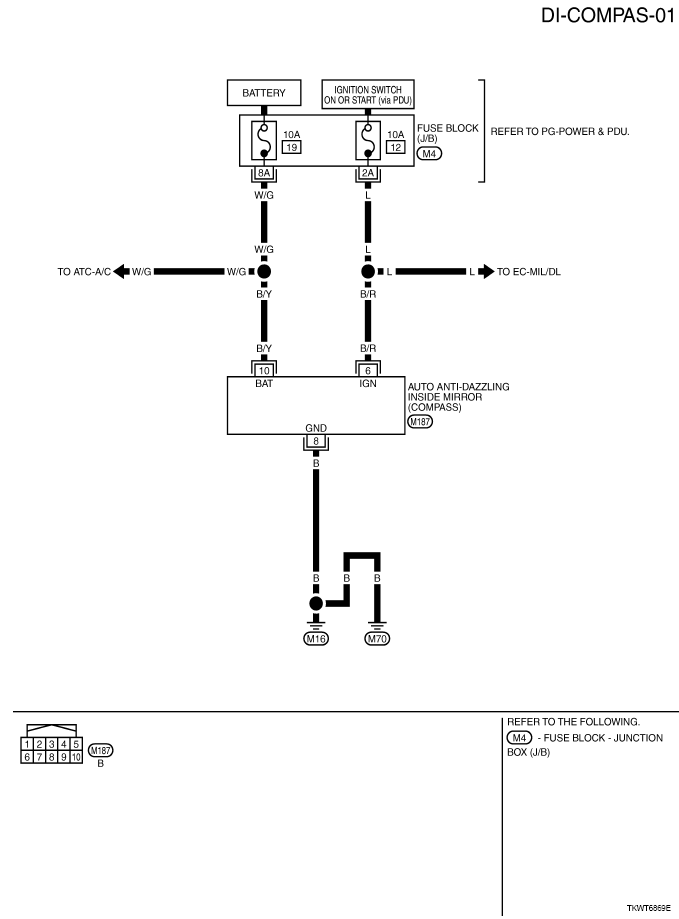

Fig 1: Wiring Diagram (DI-COMPAS-01)
G00469320Courtesy of NISSAN MOTOR CO., U.S.A.
