G37 Base, 4D Sedan
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System - Symptom Diagnosis And On-Vehicle Maintenance - Sedan
>>
Symptom Diagnosis
>>
Engine Control System Symptoms
>>
Symptom Table
>>
System - Basic Engine Control System
System - Basic Engine Control System

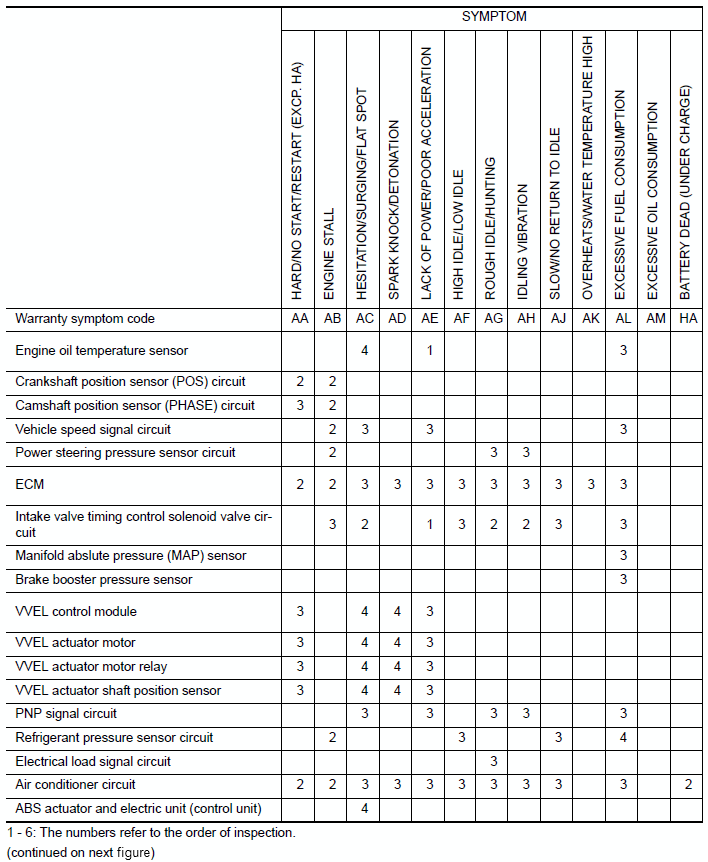

Fig 1: System - Basic Engine Control System Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

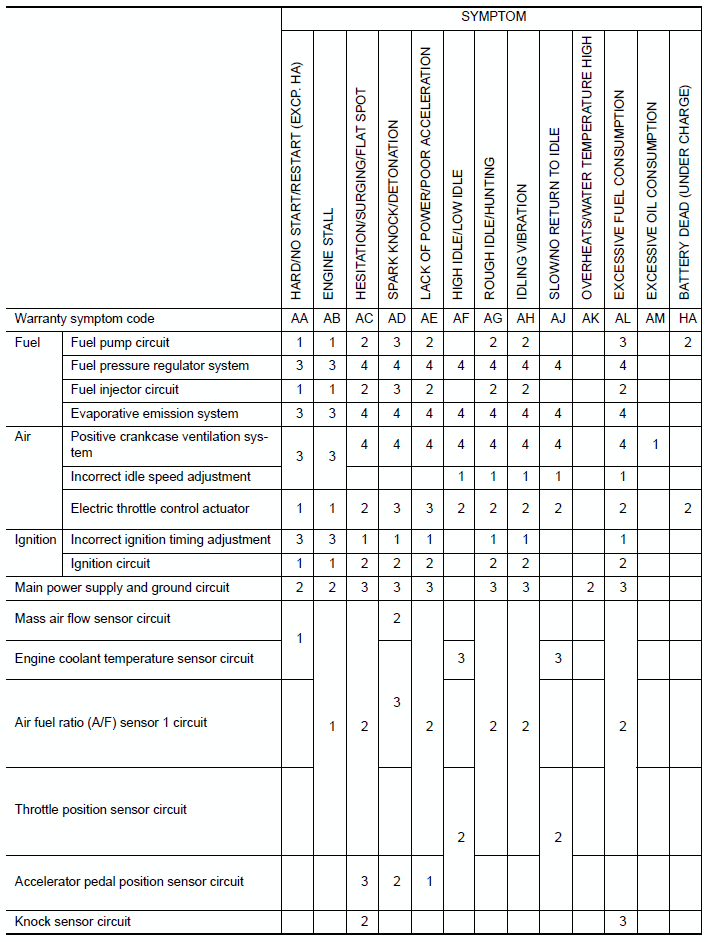

Fig 2: System - Basic Engine Control System Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
