Evaporative Emission Line Drawing

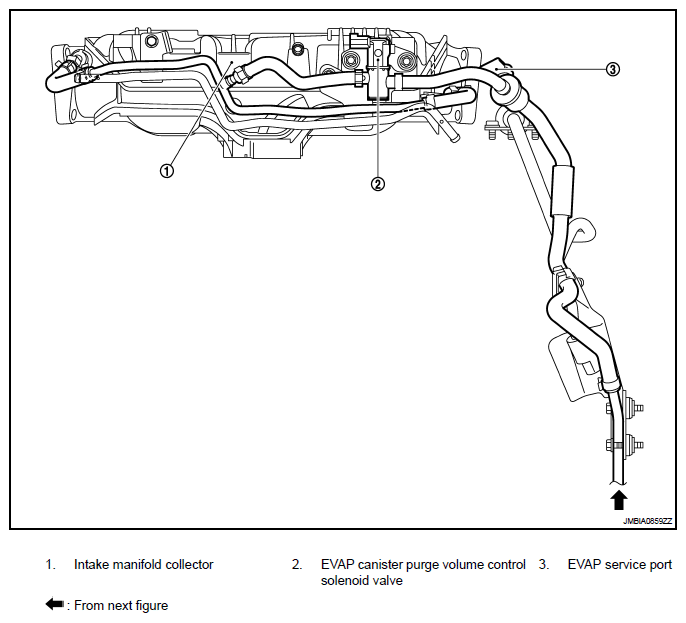

Fig 1: Identifying Evaporative Emission Line Drawing (1 Of 2)
G06320598Courtesy of NISSAN NORTH AMERICA, INC.

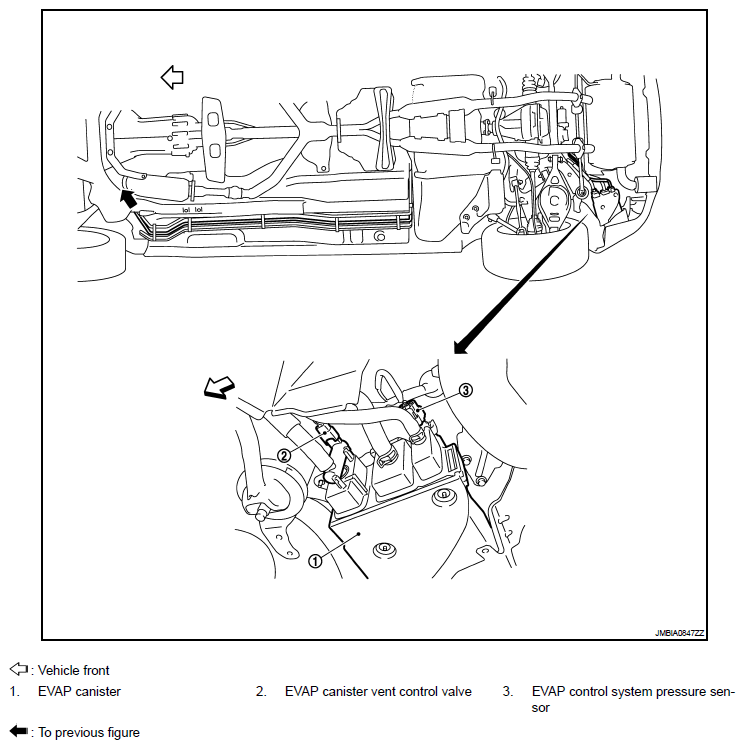

Fig 2: Identifying Evaporative Emission Line Drawing (2 Of 2)
G06320599Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
