Component Parts Location

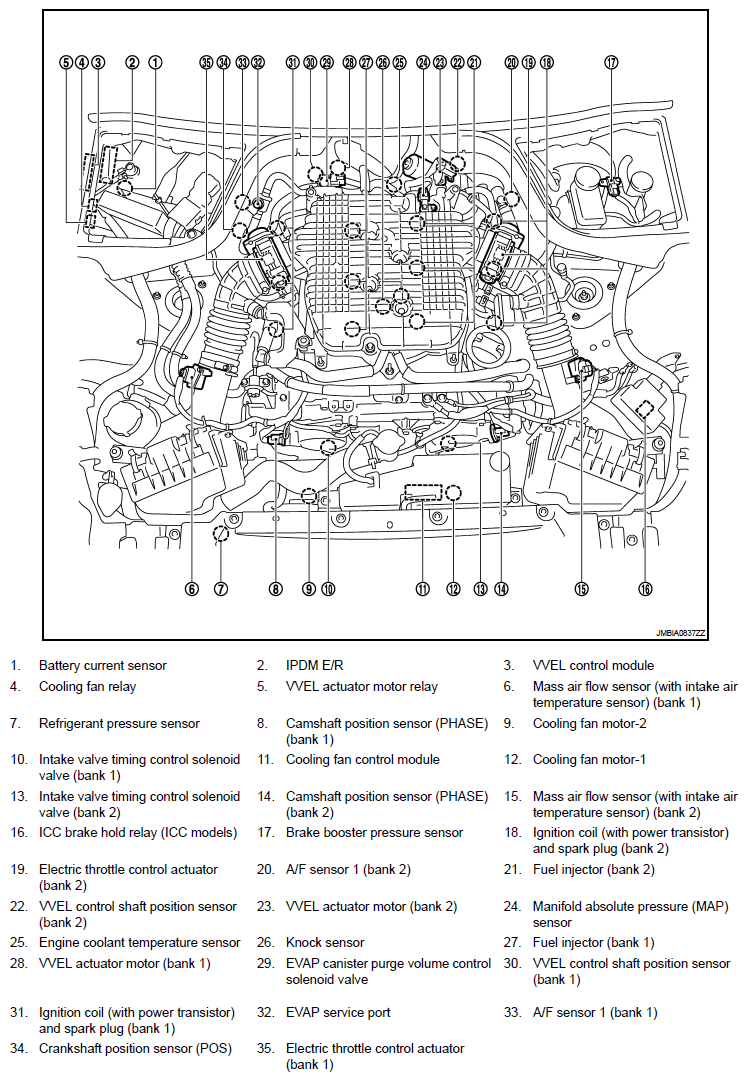

Fig 1: Identifying Evaporative Emission System Component Parts Location (1 Of 22)

G06320600

Courtesy of NISSAN NORTH AMERICA, INC.

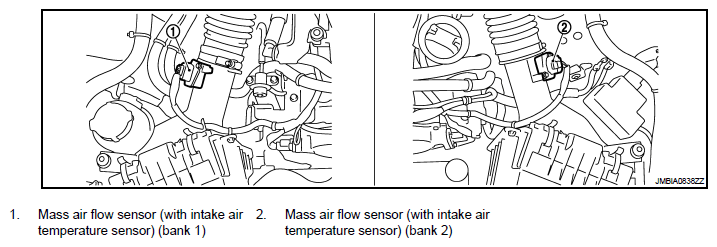

Fig 2: Identifying Evaporative Emission System Component Parts Location (2 Of 22)

G06320601

Courtesy of NISSAN NORTH AMERICA, INC.

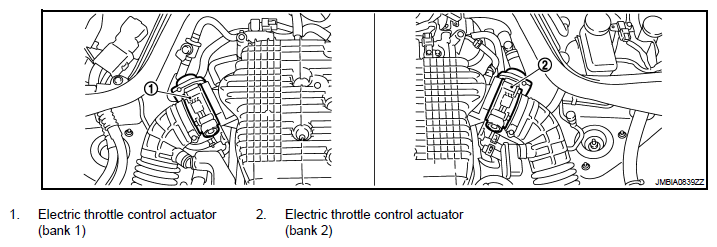

Fig 3: Identifying Evaporative Emission System Component Parts Location (3 Of 22)

G06320602

Courtesy of NISSAN NORTH AMERICA, INC.

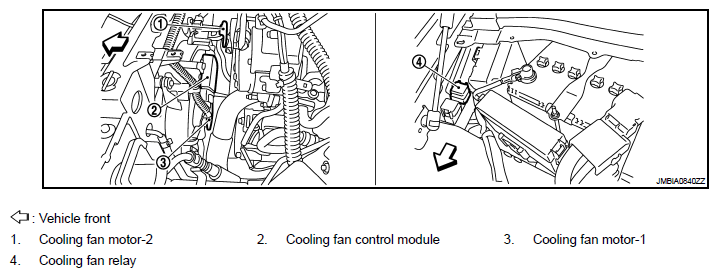

Fig 4: Identifying Evaporative Emission System Component Parts Location (4 Of 22)

G06320603

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Evaporative Emission System Component Parts Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

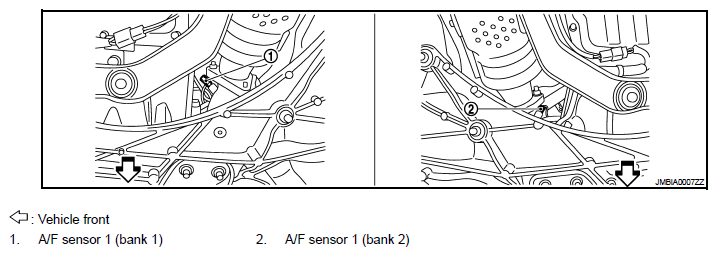

Fig 6: Identifying Evaporative Emission System Component Parts Location (6 Of 22)

G06320605

Courtesy of NISSAN NORTH AMERICA, INC.

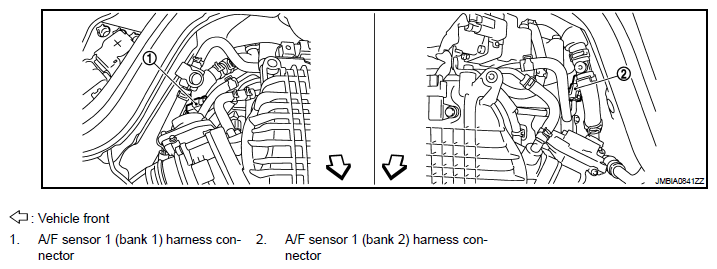

Fig 7: Identifying Evaporative Emission System Component Parts Location (7 Of 22)

G06320606

Courtesy of NISSAN NORTH AMERICA, INC.

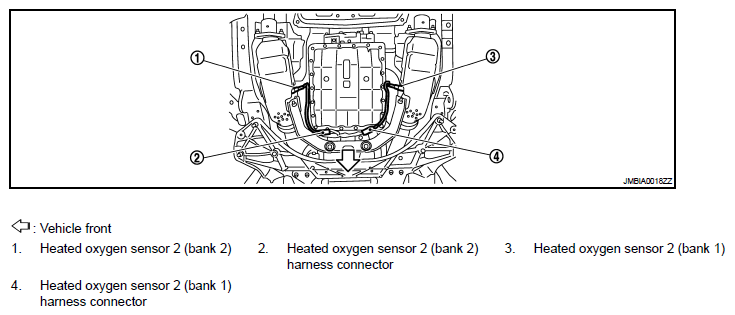

Fig 8: Identifying Evaporative Emission System Component Parts Location (8 Of 22)

G06320607

Courtesy of NISSAN NORTH AMERICA, INC.

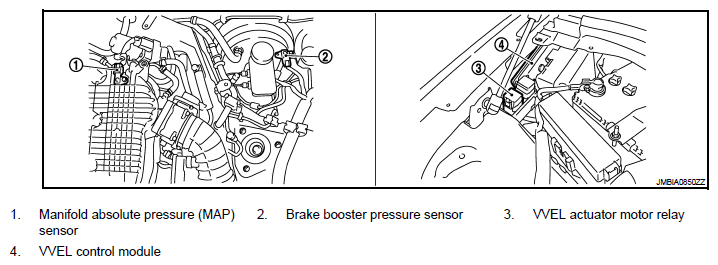

Fig 9: Identifying Evaporative Emission System Component Parts Location (9 Of 22)

G06320608

Courtesy of NISSAN NORTH AMERICA, INC.

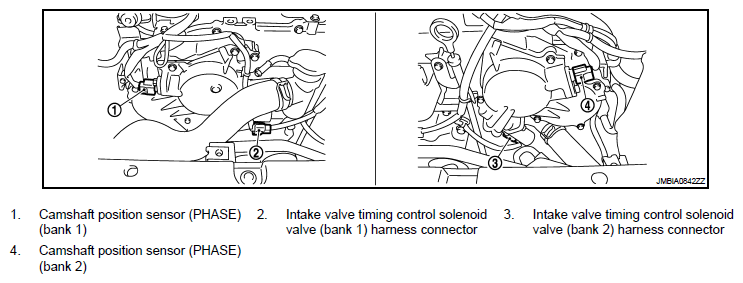

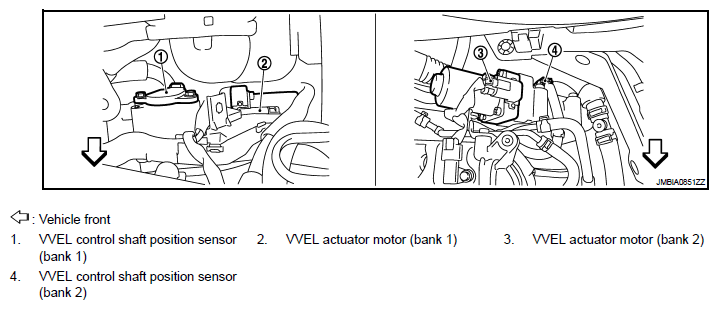

Fig 10: Identifying Evaporative Emission System Component Parts Location (10 Of 22)

G06320609

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Evaporative Emission System Component Parts Location (11 Of 22)

G06320610

Courtesy of NISSAN NORTH AMERICA, INC.

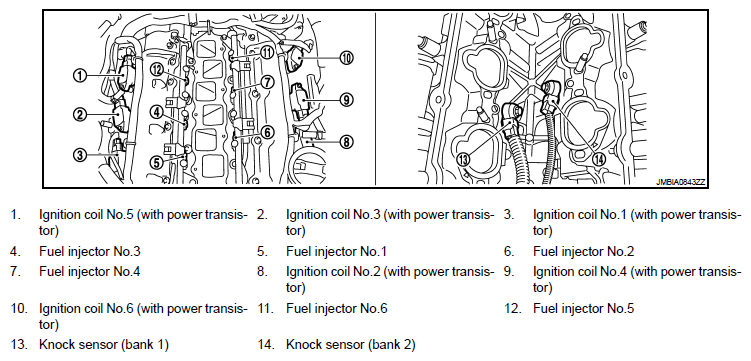

Fig 12: Identifying Evaporative Emission System Component Parts Location (12 Of 22)

G06320611

Courtesy of NISSAN NORTH AMERICA, INC.

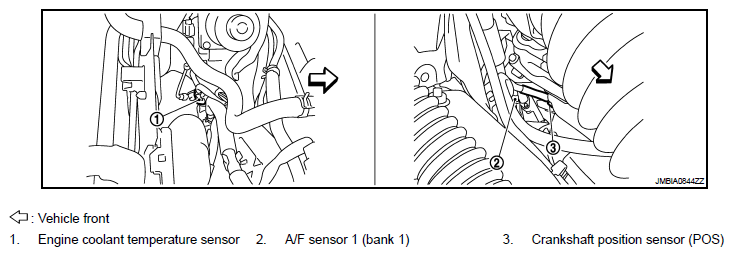

Fig 13: Identifying Evaporative Emission System Component Parts Location (13 Of 22)

G06320612

Courtesy of NISSAN NORTH AMERICA, INC.

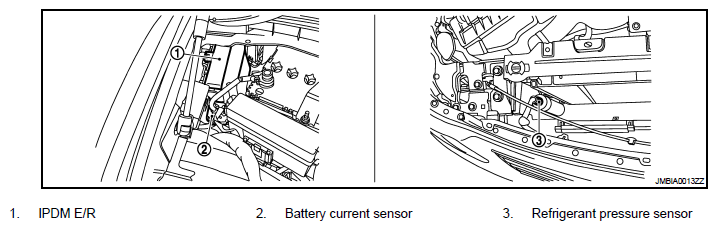

Fig 14: Identifying Evaporative Emission System Component Parts Location (14 Of 22)

G06320613

Courtesy of NISSAN NORTH AMERICA, INC.

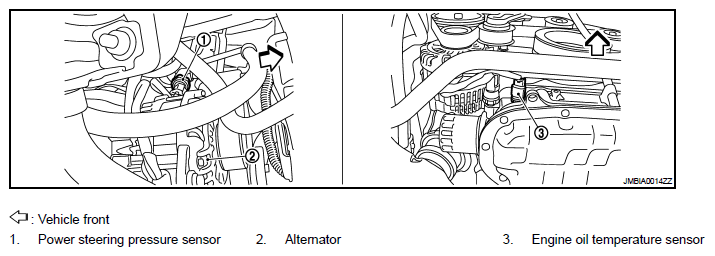

Fig 15: Identifying Evaporative Emission System Component Parts Location (15 Of 22)

G06320614

Courtesy of NISSAN NORTH AMERICA, INC.

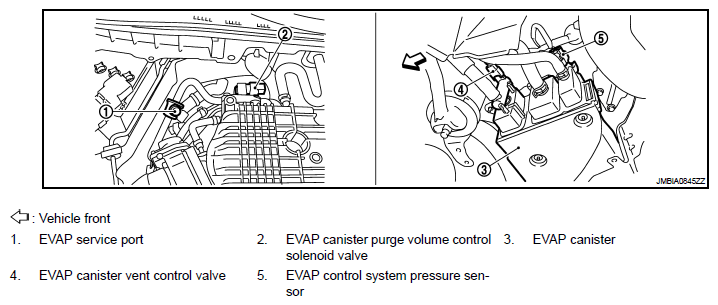

Fig 16: Identifying Evaporative Emission System Component Parts Location (16 Of 22)

G06320615

Courtesy of NISSAN NORTH AMERICA, INC.

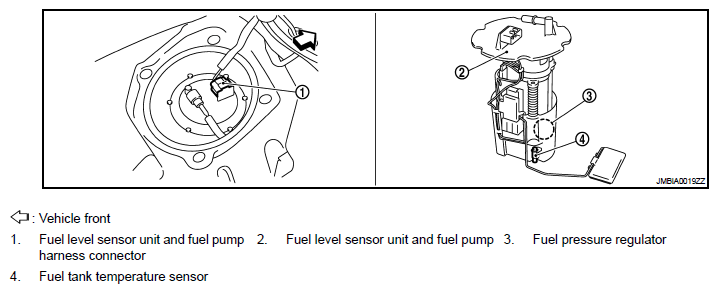

Fig 17: Identifying Evaporative Emission System Component Parts Location (17 Of 22)

G06320616

Courtesy of NISSAN NORTH AMERICA, INC.

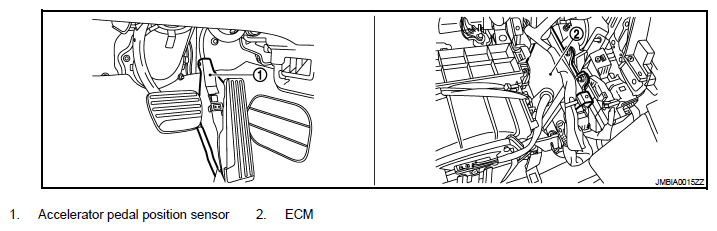

Fig 18: Identifying Evaporative Emission System Component Parts Location (18 Of 22)

G06320617

Courtesy of NISSAN NORTH AMERICA, INC.

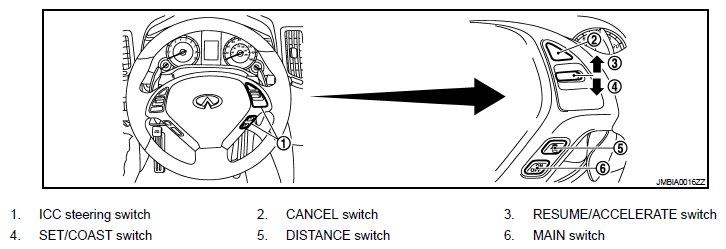

Fig 19: Identifying Evaporative Emission System Component Parts Location (19 Of 22)

G06320618

Courtesy of NISSAN NORTH AMERICA, INC.

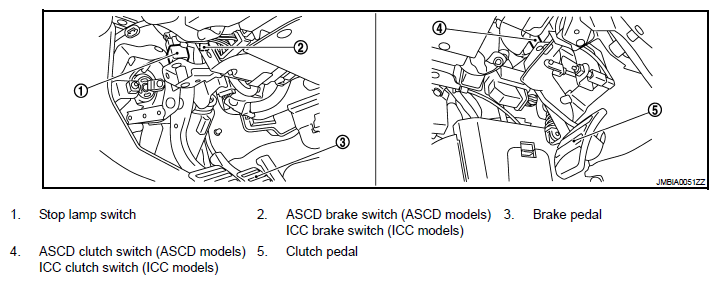

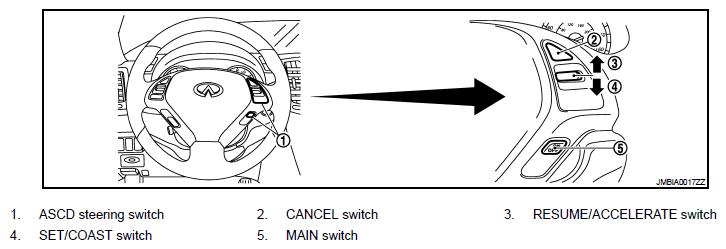

Fig 20: Identifying Evaporative Emission System Component Parts Location (20 Of 22)

G06320619

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Evaporative Emission System Component Parts Location (21 Of 22)

G06320620

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 22: Identifying Evaporative Emission System Component Parts Location (22 Of 22)

G06320621

Courtesy of NISSAN NORTH AMERICA, INC.
