System - Engine Mechanical & Other

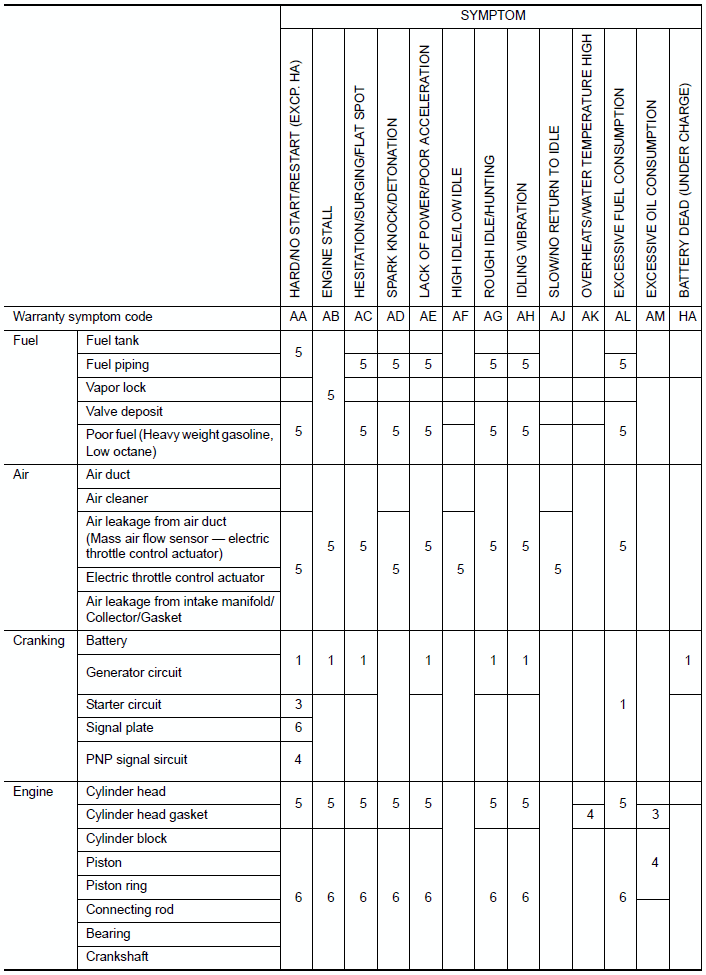

Fig 1: Engine Mechanical And Other - Symptom Chart (1 Of 2)
G06331516Courtesy of NISSAN MOTOR CO., U.S.A.

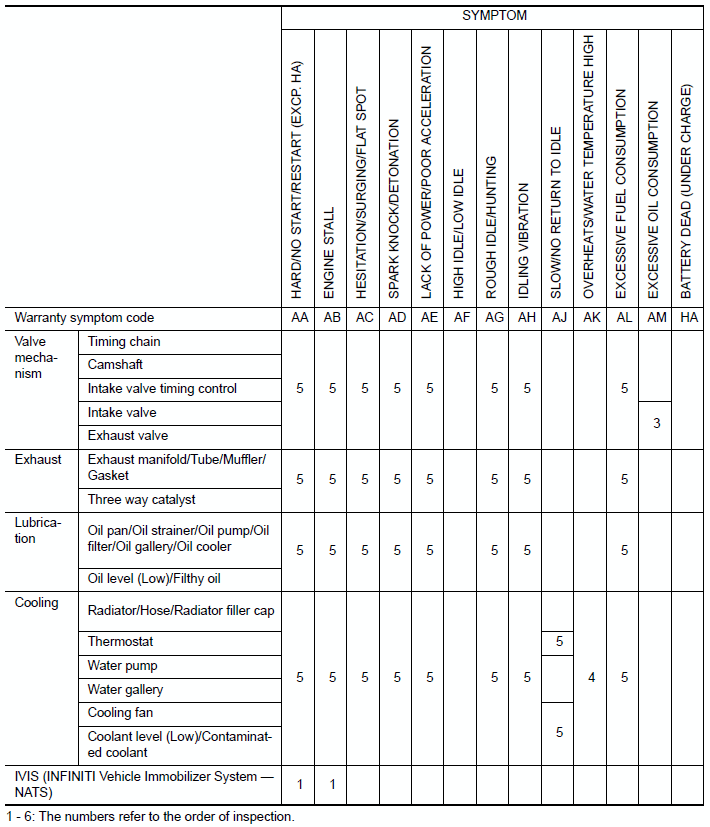

Fig 2: Engine Mechanical And Other - Symptom Chart (2 Of 2)
G06331517Courtesy of NISSAN MOTOR CO., U.S.A.
