Wiring Diagram - ENGINE CONTROL SYSTEM -

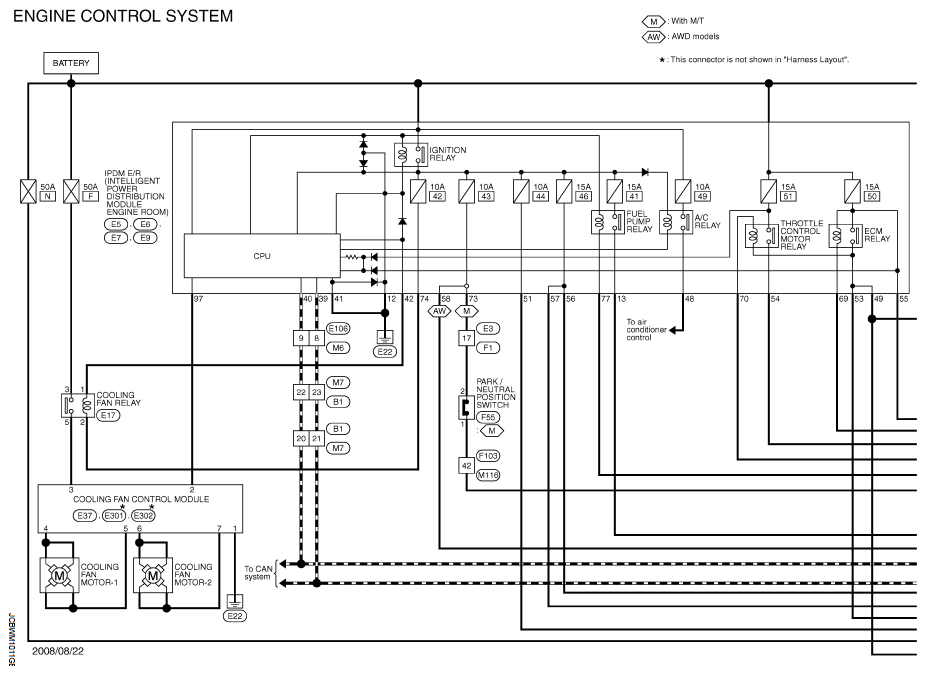

Fig 1: Engine Control System - Wiring Diagram (1 Of 6)

G06331463

Courtesy of NISSAN MOTOR CO., U.S.A.

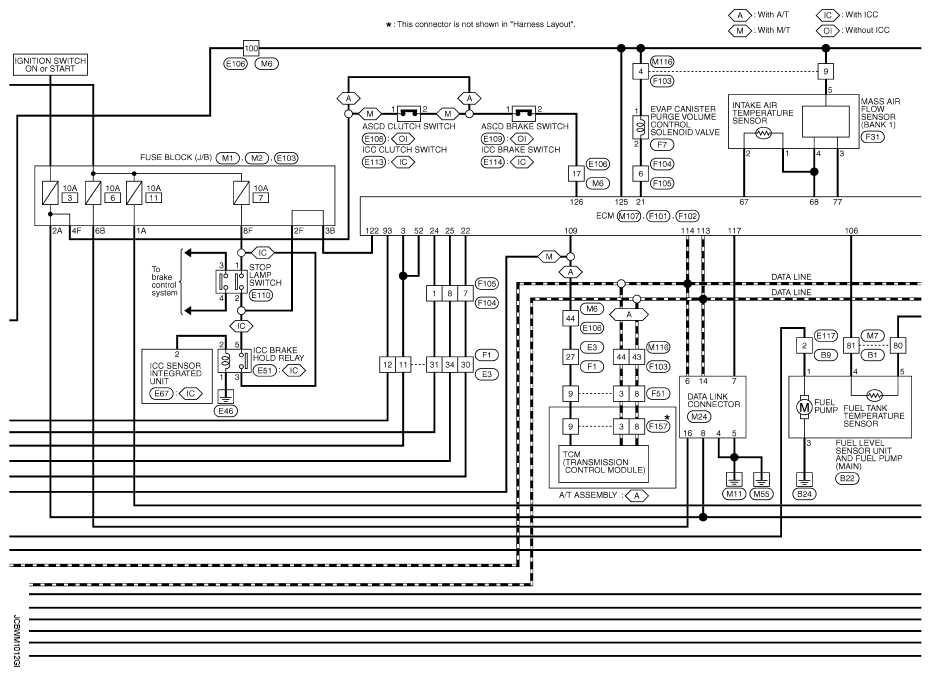

Fig 2: Engine Control System - Wiring Diagram (2 Of 6)

G06331464

Courtesy of NISSAN MOTOR CO., U.S.A.

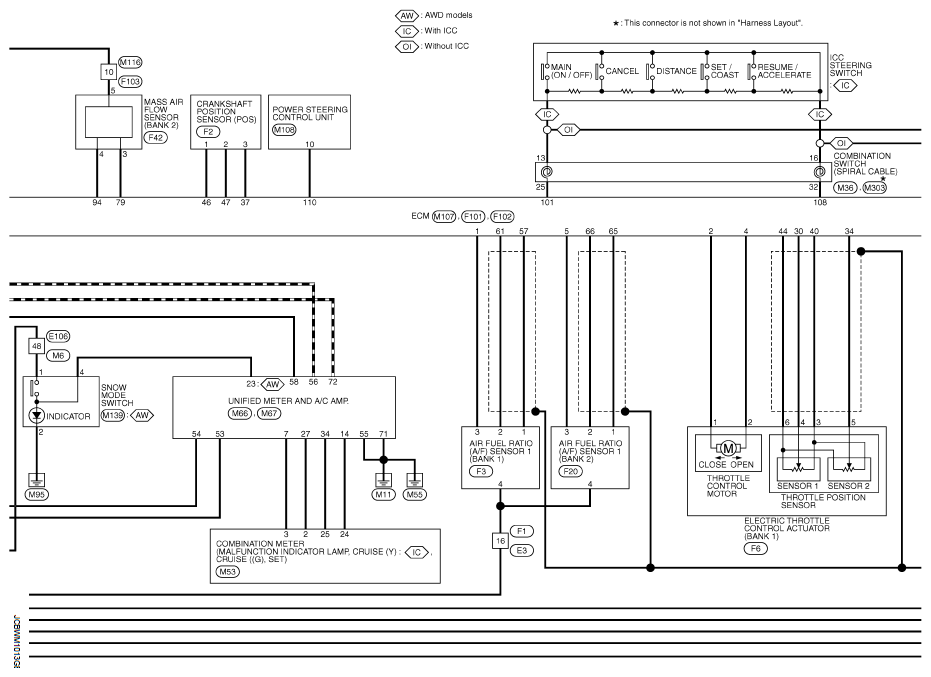

Fig 3: Engine Control System - Wiring Diagram (3 Of 6)

G06331465

Courtesy of NISSAN MOTOR CO., U.S.A.

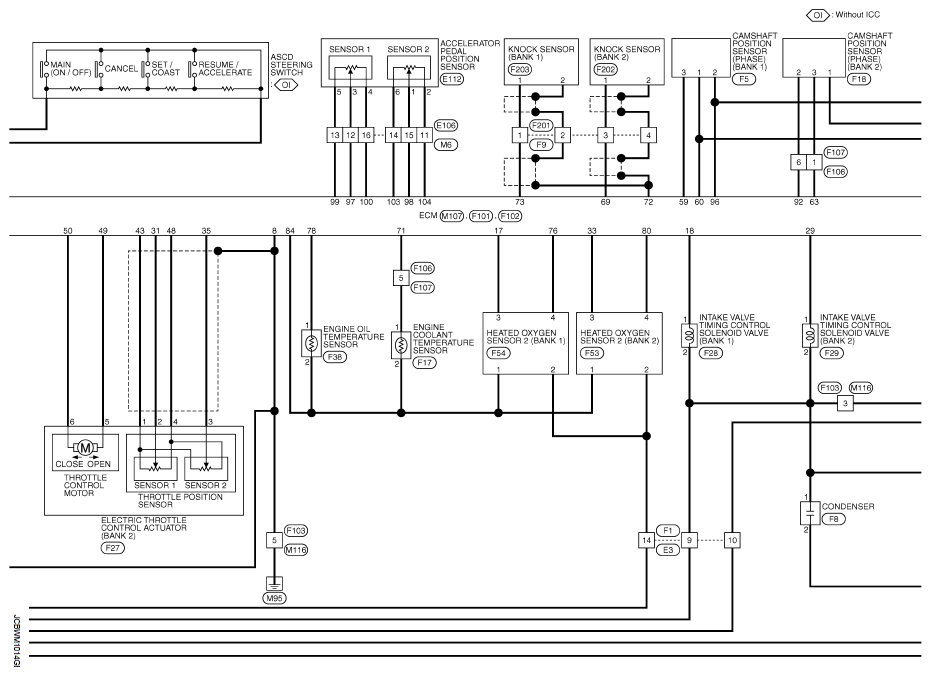

Fig 4: Engine Control System - Wiring Diagram (4 Of 6)

G06331466

Courtesy of NISSAN MOTOR CO., U.S.A.

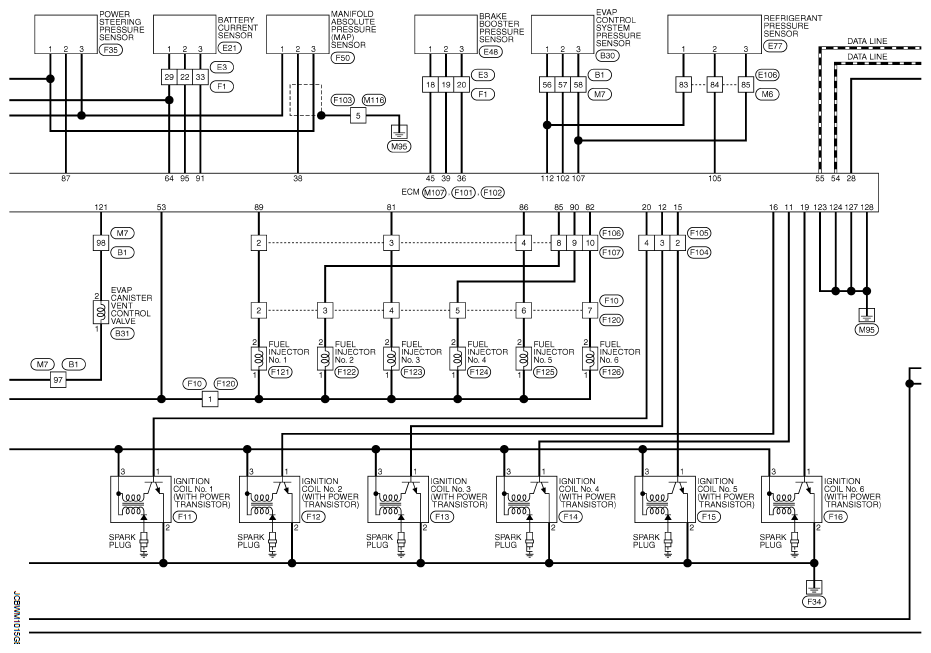

Fig 5: Engine Control System - Wiring Diagram (5 Of 6)

G06331467

Courtesy of NISSAN MOTOR CO., U.S.A.

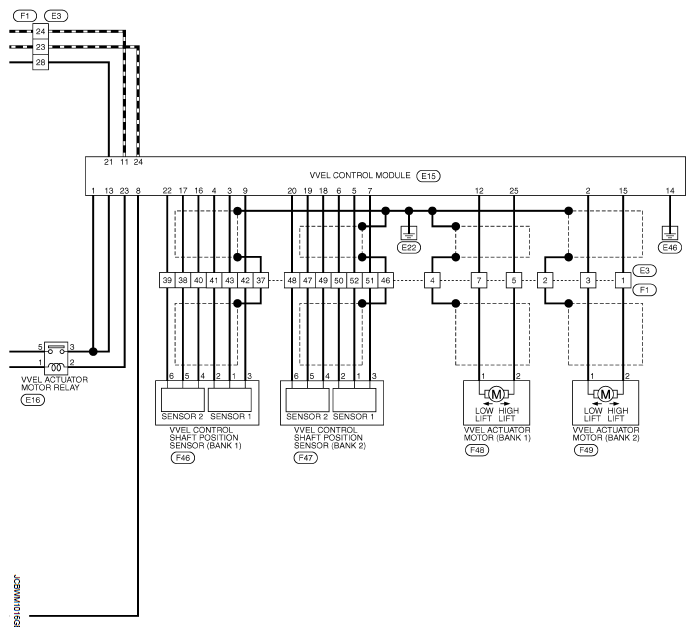

Fig 6: Engine Control System - Wiring Diagram (6 Of 6)

G06331468

Courtesy of NISSAN MOTOR CO., U.S.A.

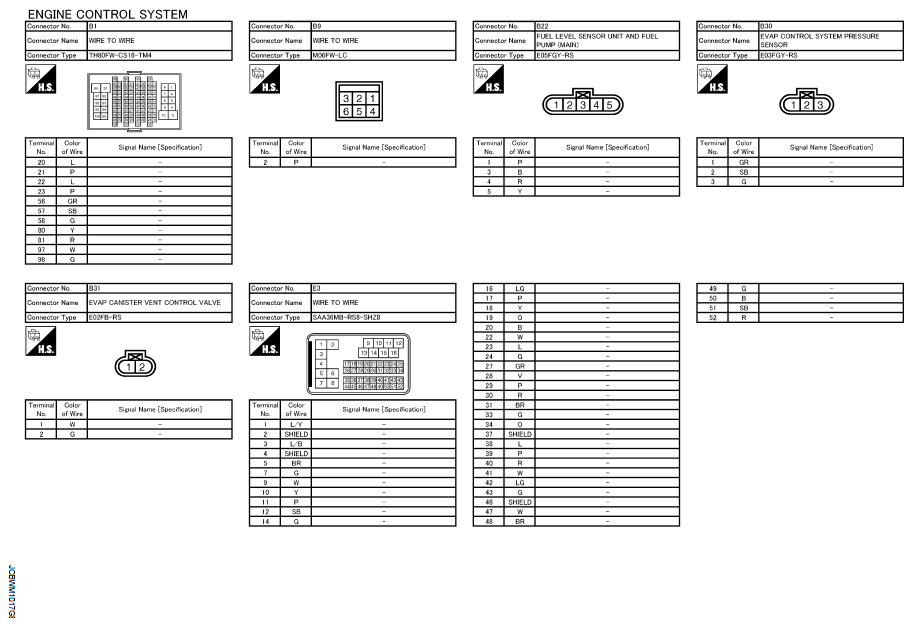

Fig 7: Identifying Engine Control System Connectors (1 Of 14)

G06331469

Courtesy of NISSAN MOTOR CO., U.S.A.

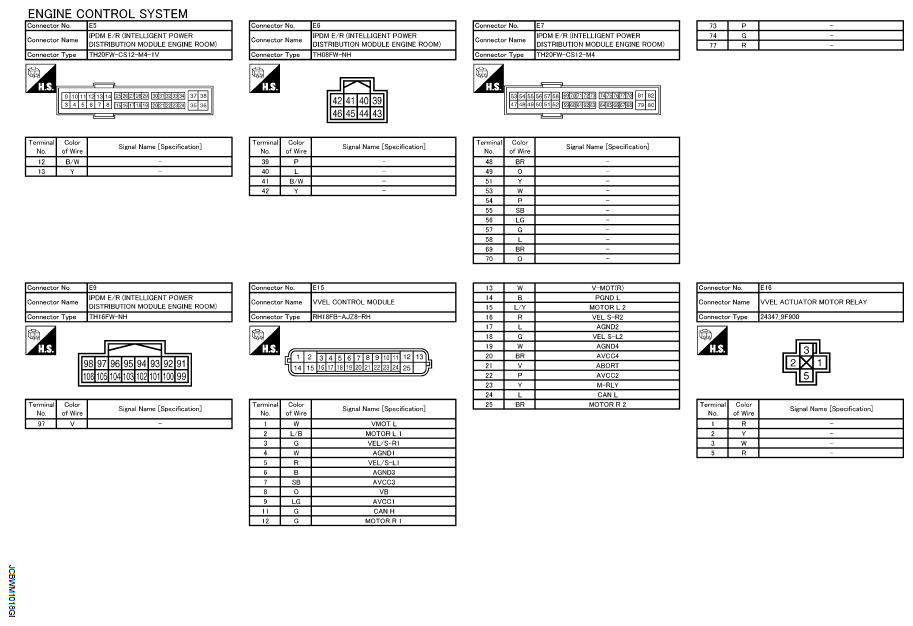

Fig 8: Identifying Engine Control System Connectors (2 Of 14)

G06331470

Courtesy of NISSAN MOTOR CO., U.S.A.

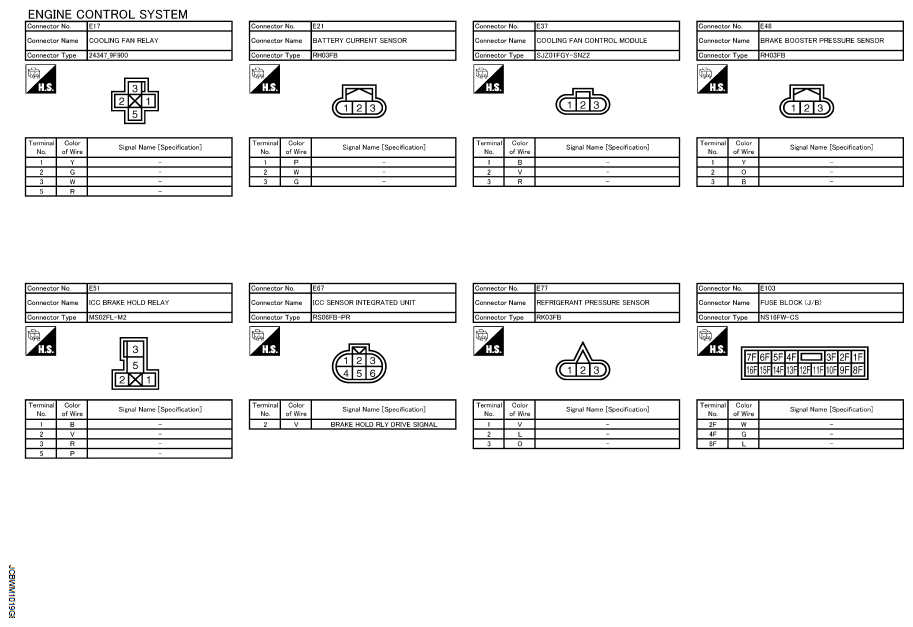

Fig 9: Identifying Engine Control System Connectors (3 Of 14)

G06331471

Courtesy of NISSAN MOTOR CO., U.S.A.

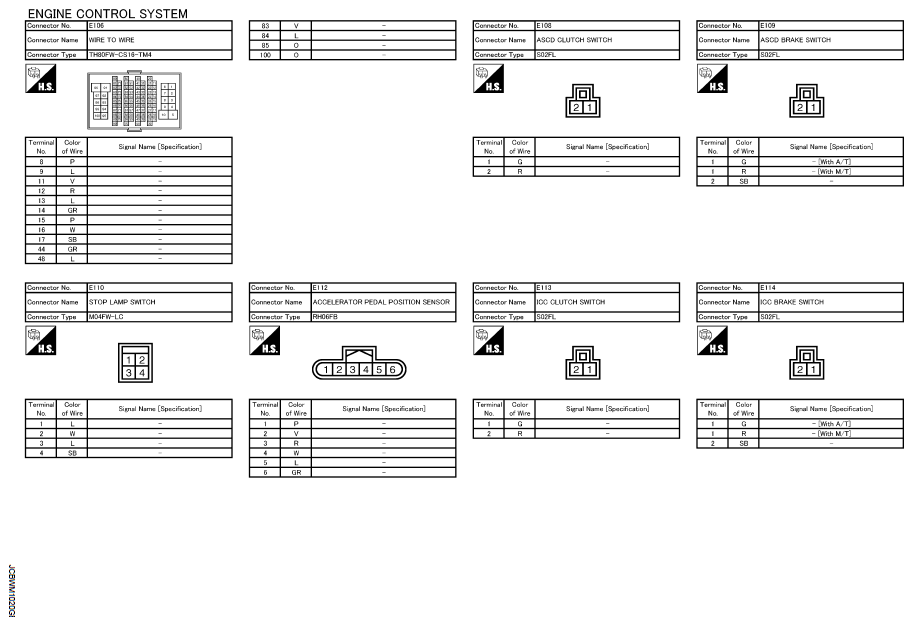

Fig 10: Identifying Engine Control System Connectors (4 Of 14)

G06331472

Courtesy of NISSAN MOTOR CO., U.S.A.

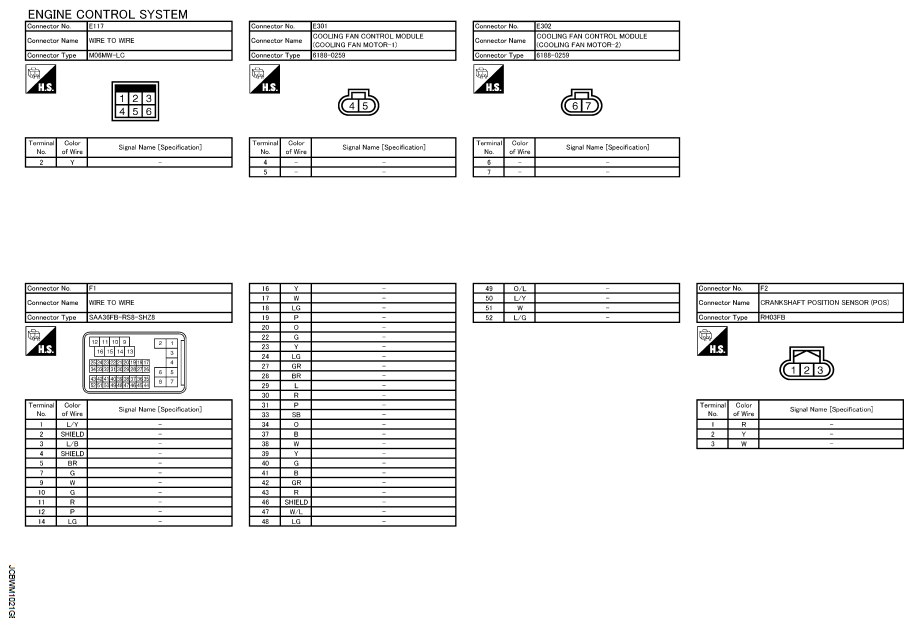

Fig 11: Identifying Engine Control System Connectors (5 Of 14)

G06331473

Courtesy of NISSAN MOTOR CO., U.S.A.

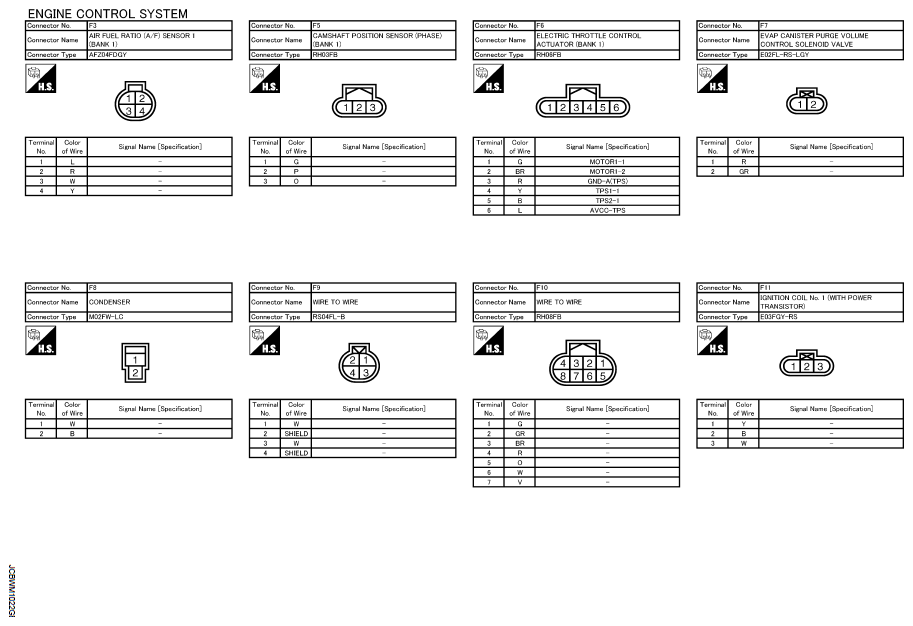

Fig 12: Identifying Engine Control System Connectors (6 Of 14)

G06331474

Courtesy of NISSAN MOTOR CO., U.S.A.

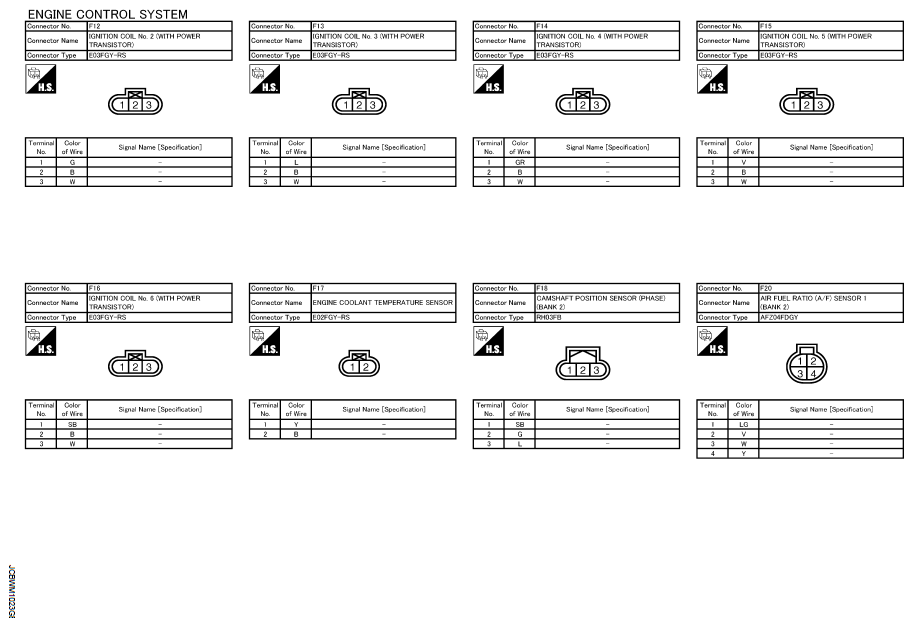

Fig 13: Identifying Engine Control System Connectors (7 Of 14)

G06331475

Courtesy of NISSAN MOTOR CO., U.S.A.

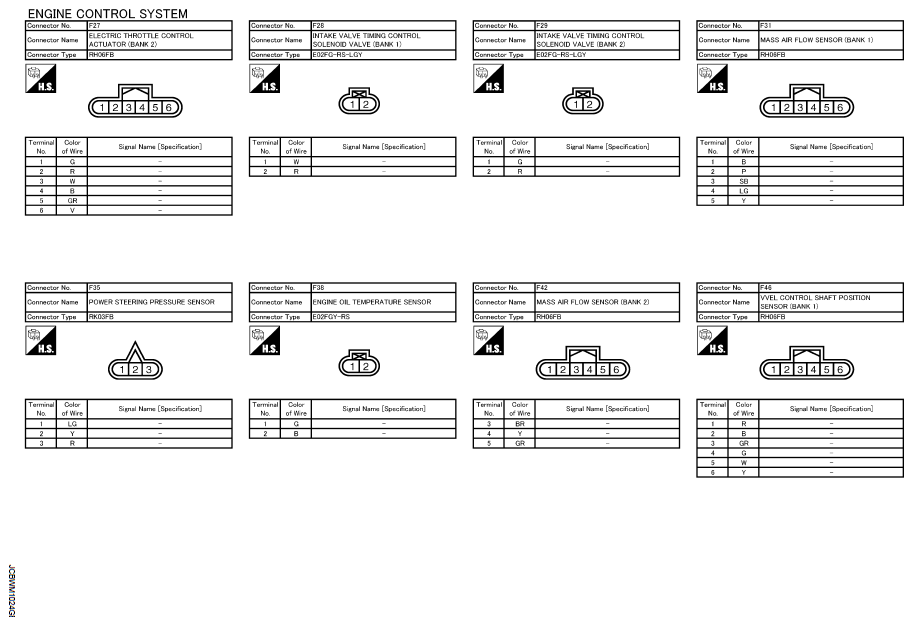

Fig 14: Identifying Engine Control System Connectors (8 Of 14)

G06331476

Courtesy of NISSAN MOTOR CO., U.S.A.

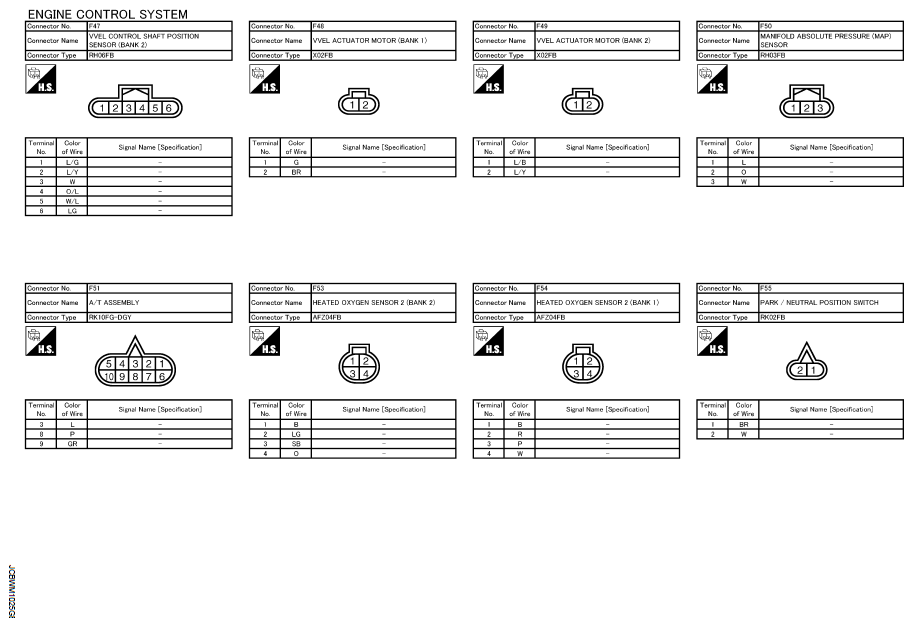

Fig 15: Identifying Engine Control System Connectors (9 Of 14)

G06331477

Courtesy of NISSAN MOTOR CO., U.S.A.

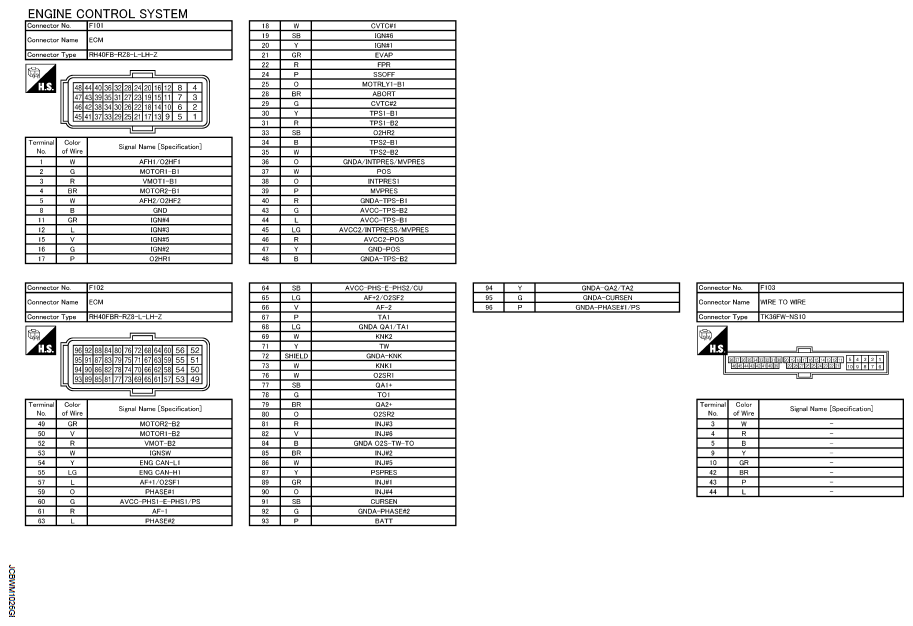

Fig 16: Identifying Engine Control System Connectors (10 Of 14)

G06331478

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Engine Control System Connectors (11 Of 14)

G06331479

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Engine Control System Connectors (12 Of 14)

G06331480

Courtesy of NISSAN MOTOR CO., U.S.A.

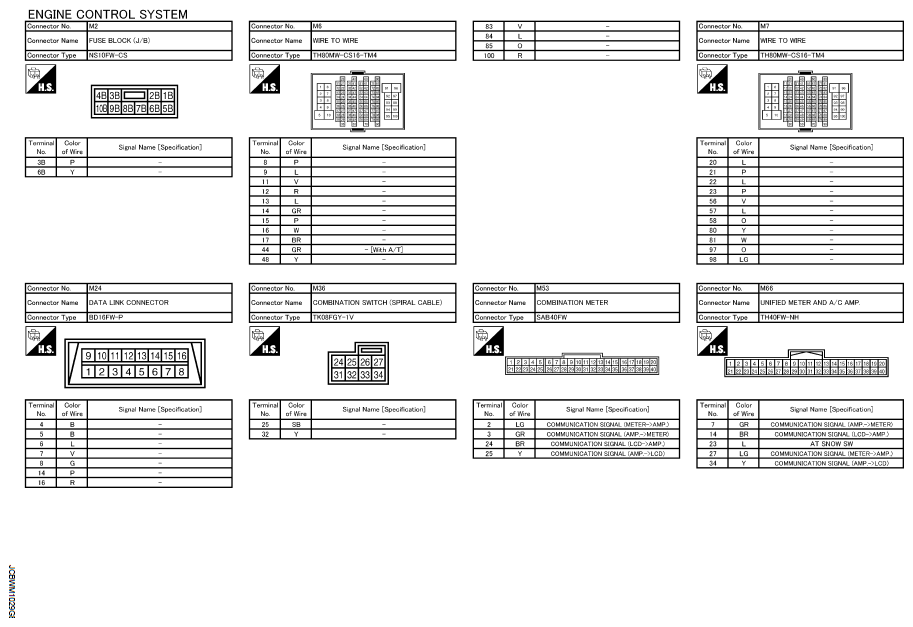

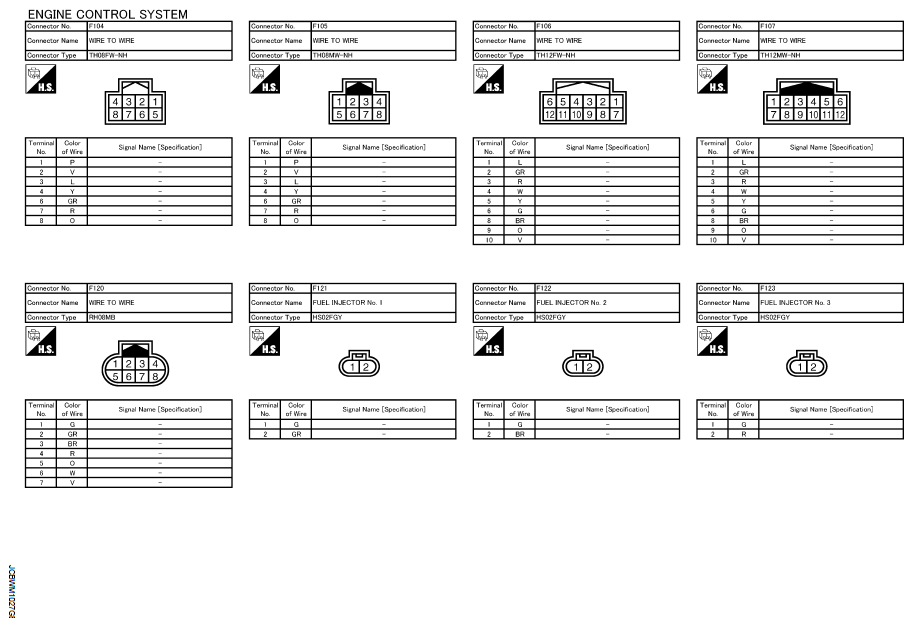

Fig 19: Identifying Engine Control System Connectors (13 Of 14)

G06331481

Courtesy of NISSAN MOTOR CO., U.S.A.

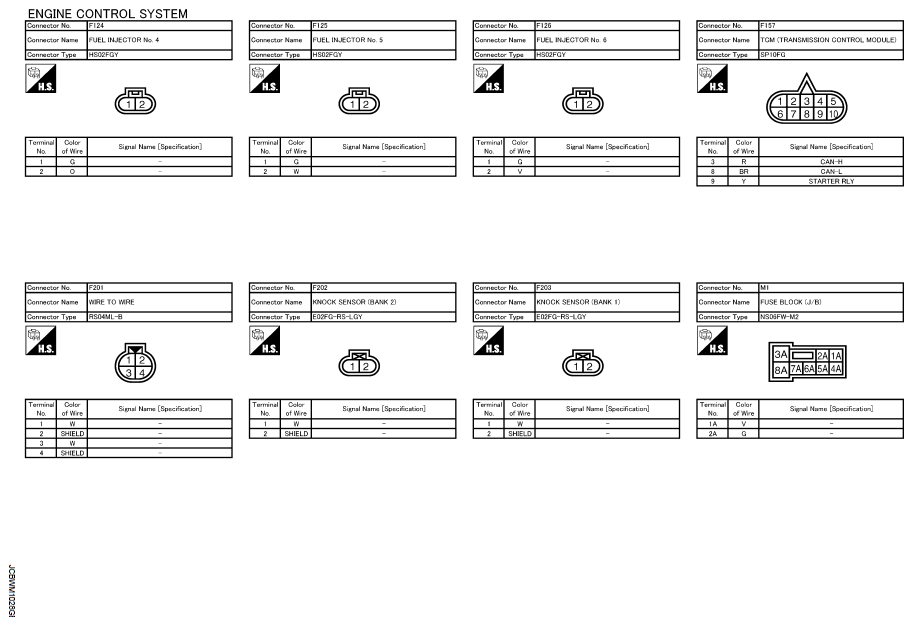

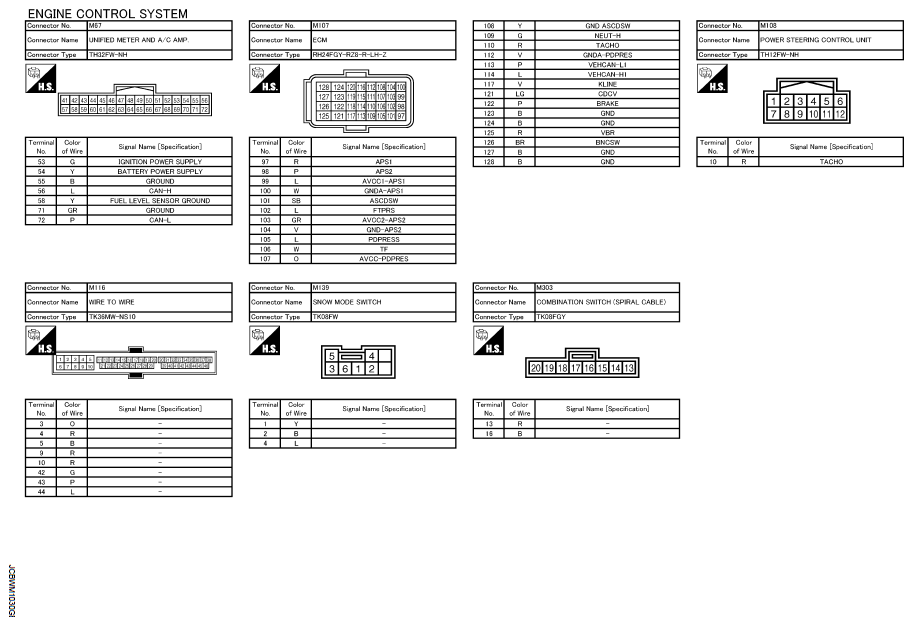

Fig 20: Identifying Engine Control System Connectors (14 Of 14)

G06331482

Courtesy of NISSAN MOTOR CO., U.S.A.
